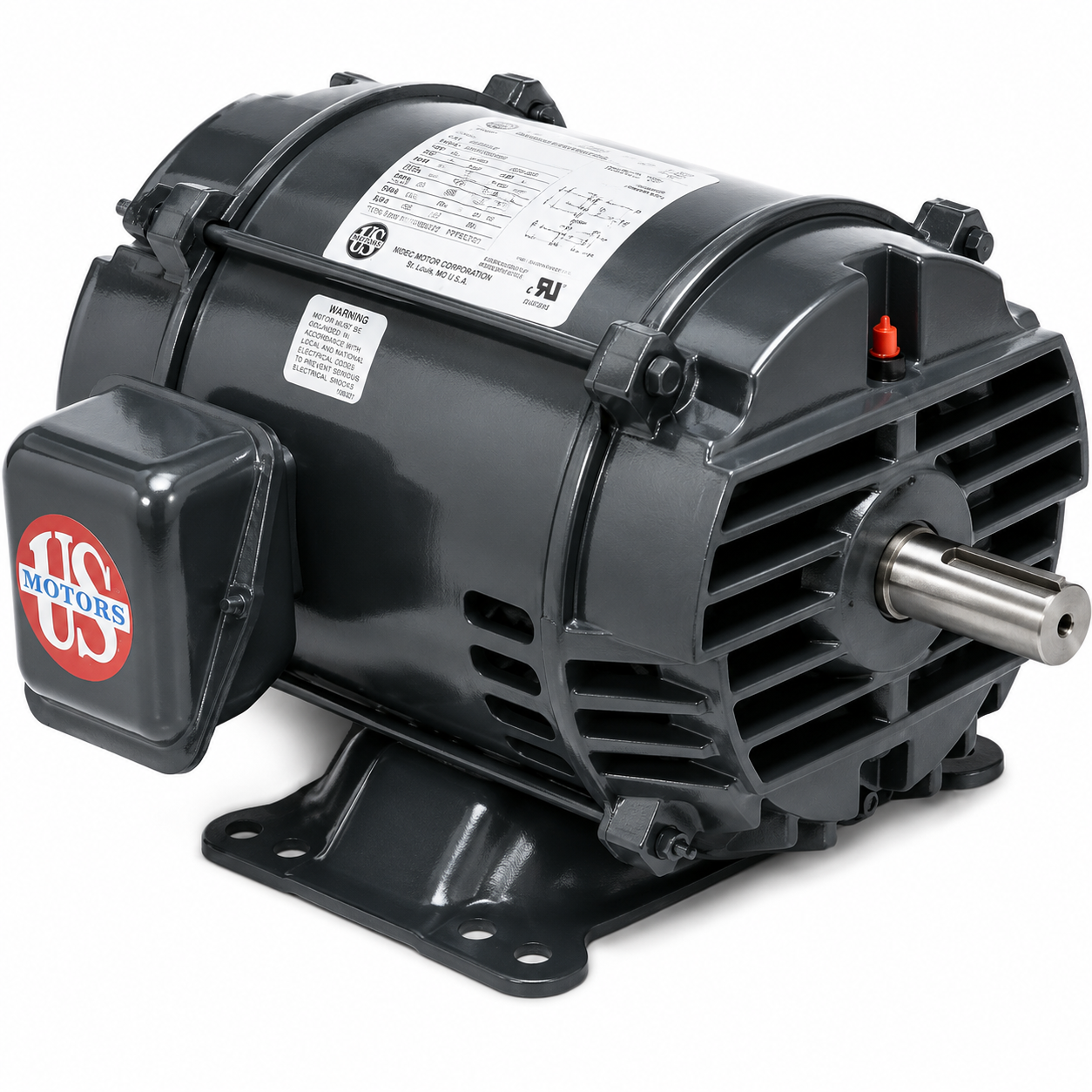

US Motors Three Phase Motor (HVAC/R) D15P1G - 15 HP - 575 V - 3600 RPM - Three phase
US Motors Three Phase Motor (HVAC/R) D15P1G - 15 HP - 575 V - 3600 RPM - Three phase

US Motors Three Phase Motor (HVAC/R) D15P1G - 15 HP - 575 V - 3600 RPM - Three phase

US Motors
$1,372.00
$1,372.00
Quantity must be 1 or more
  • Horsepower :15
  • Voltage :575
  • Amps :14.60
  • RPM :3600
  • Frequency :60 Hz
  • "C" Dim. :17.46"
  • Enclosure :Open Drip-Proof
  • Type :Three Phase
  • Frame :215T
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :None
  • Service Factor :1.15
  • Phase :3
  • Ambient Temp. :40°C
  • Feature(s) :Rigid Base, Class 'F' Insulation, Lifting Provisions, Double Shielded Bearings, Regreasable Bearings, F1 Assembly Position
  • Weight (lbs.) :104
