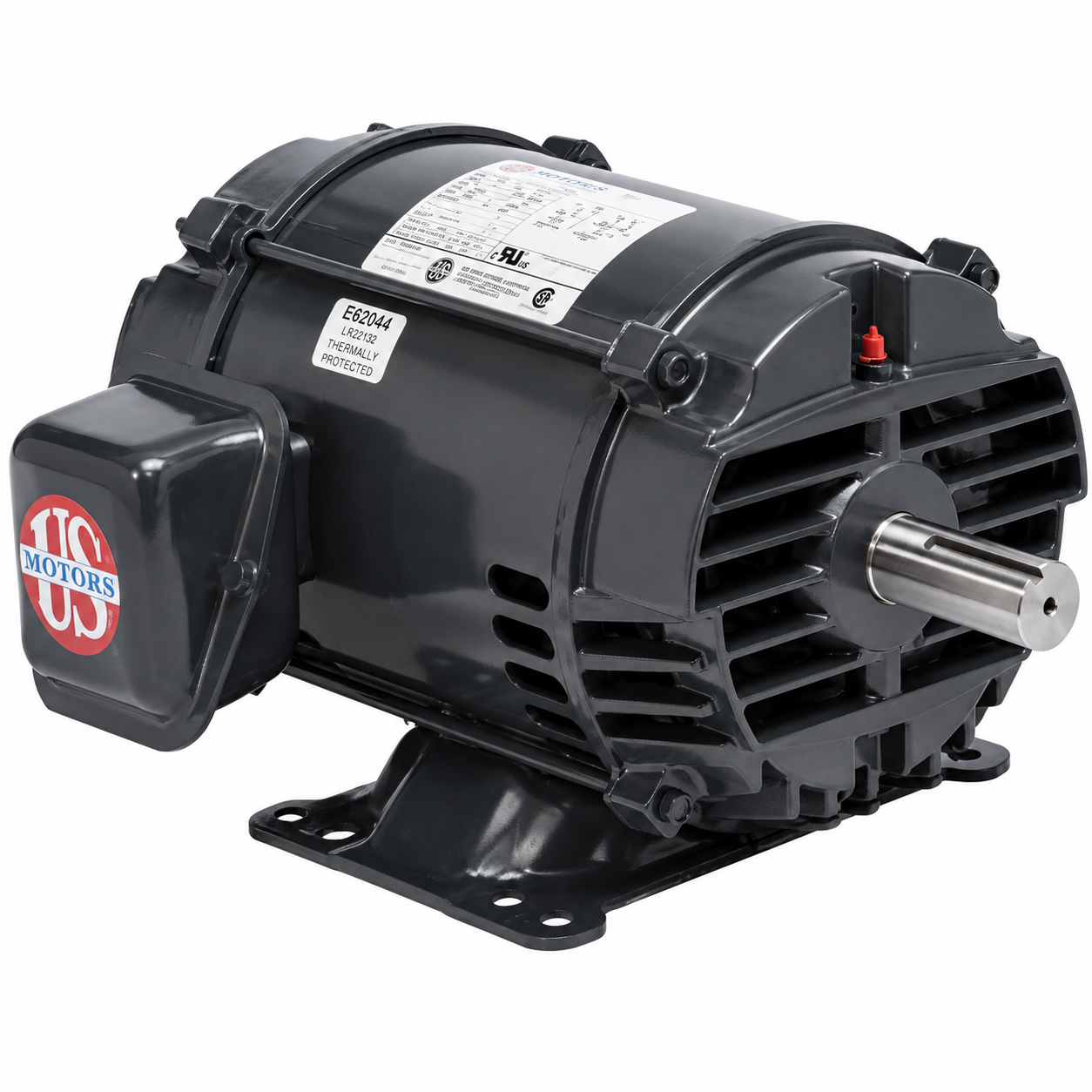

US Motors Three Phase Motor (HVAC/R) D5P1G - 5 HP - 575 V - 3515 RPM - Three phase
US Motors Three Phase Motor (HVAC/R) D5P1G - 5 HP - 575 V - 3515 RPM - Three phase

US Motors Three Phase Motor (HVAC/R) D5P1G - 5 HP - 575 V - 3515 RPM - Three phase

US Motors
$600.00
$600.00
Quantity must be 1 or more
  • Horsepower :5
  • Voltage :575
  • Amps :5.0
  • RPM :3515
  • Frequency :60 Hz
  • "C" Dim. :13.69"
  • Enclosure :Open Drip-Proof
  • Shaft Dim. :1-1/8" x 2 1/2"
  • Type :Three Phase
  • Speeds :1
  • Frame :182T
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :None
  • Service Factor :1.15
  • Phase :3
  • Ambient Temp. :40°C
  • Feature(s) :Rigid Base, Class 'F' Insulation - Class 'B' Rise at Service Factor, F-1 Assembly, Cast Iron Frame & End Brackets, Suitable for use with Inverters (VFD), Double Shielded Bearings, Regreasable Bearings, Lifting Provisions
  • Weight (lbs.) :50
