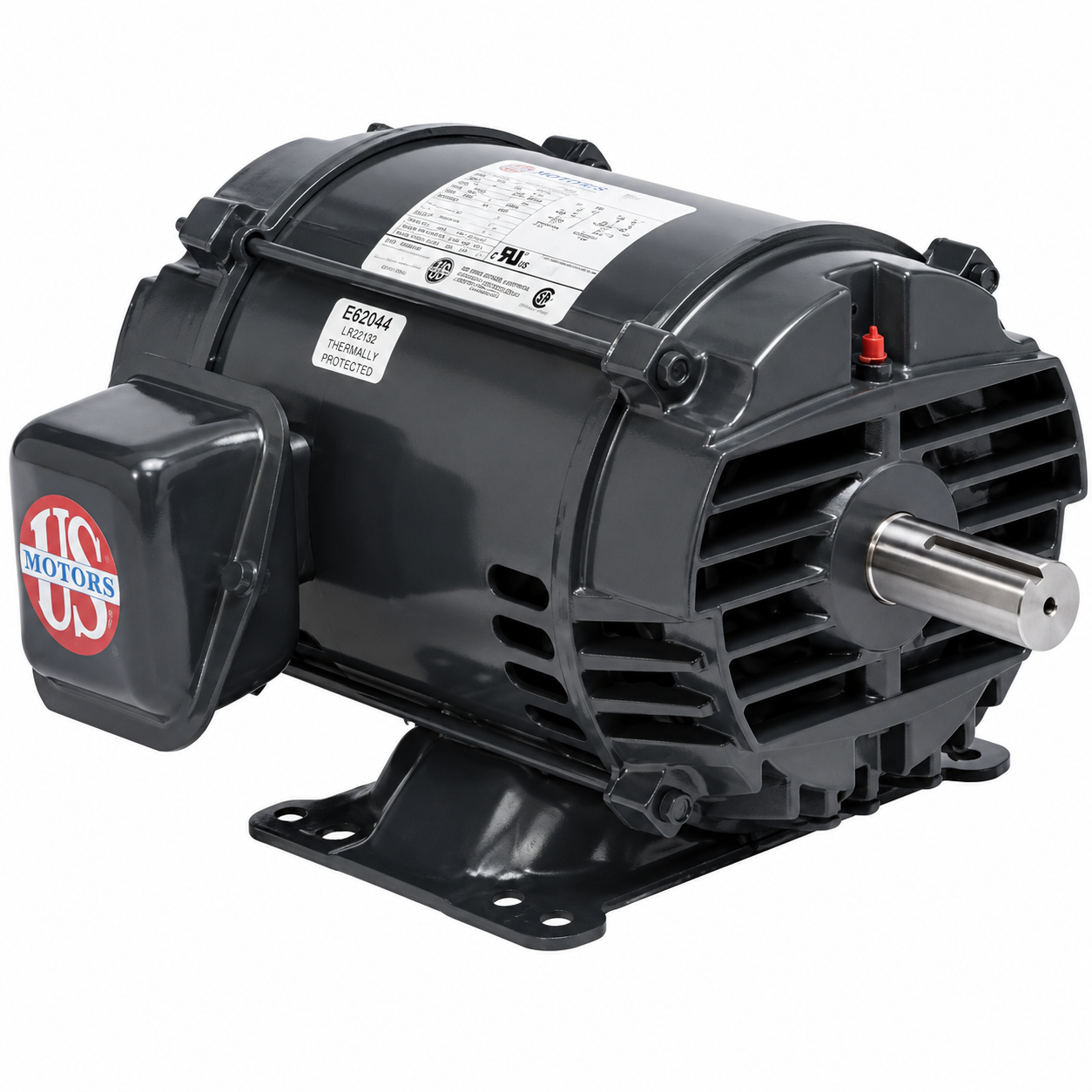

US Motors Three Phase Motor (HVAC/R) D75P2G - 75 HP - 575 V - 1780 RPM - Three phase
US Motors Three Phase Motor (HVAC/R) D75P2G - 75 HP - 575 V - 1780 RPM - Three phase

US Motors Three Phase Motor (HVAC/R) D75P2G - 75 HP - 575 V - 1780 RPM - Three phase

US Motors
$5,675.00
$5,675.00
Quantity must be 1 or more
  • Horsepower :75
  • Voltage :575
  • Amps :69
  • RPM :1780
  • Frequency :60 Hz
  • "C" Dim. :29.63"
  • Enclosure :Open Drip-Proof
  • Shaft Dim. :2-3/8" x 6.13"
  • Type :Three Phase
  • Frame :365T
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :None
  • Service Factor :1.15
  • Phase :3
  • Ambient Temp. :40°C
  • Feature(s) :Rigid Base, Class 'F' Insulation - Class 'B' Rise at Service Factor, F-1 Assembly, Cast Iron Frame & End Brackets, Suitable for use with Inverters (VFD), Double Shielded Bearings, Regreasable Bearings, Lifting Provisions
  • Weight (lbs.) :600
