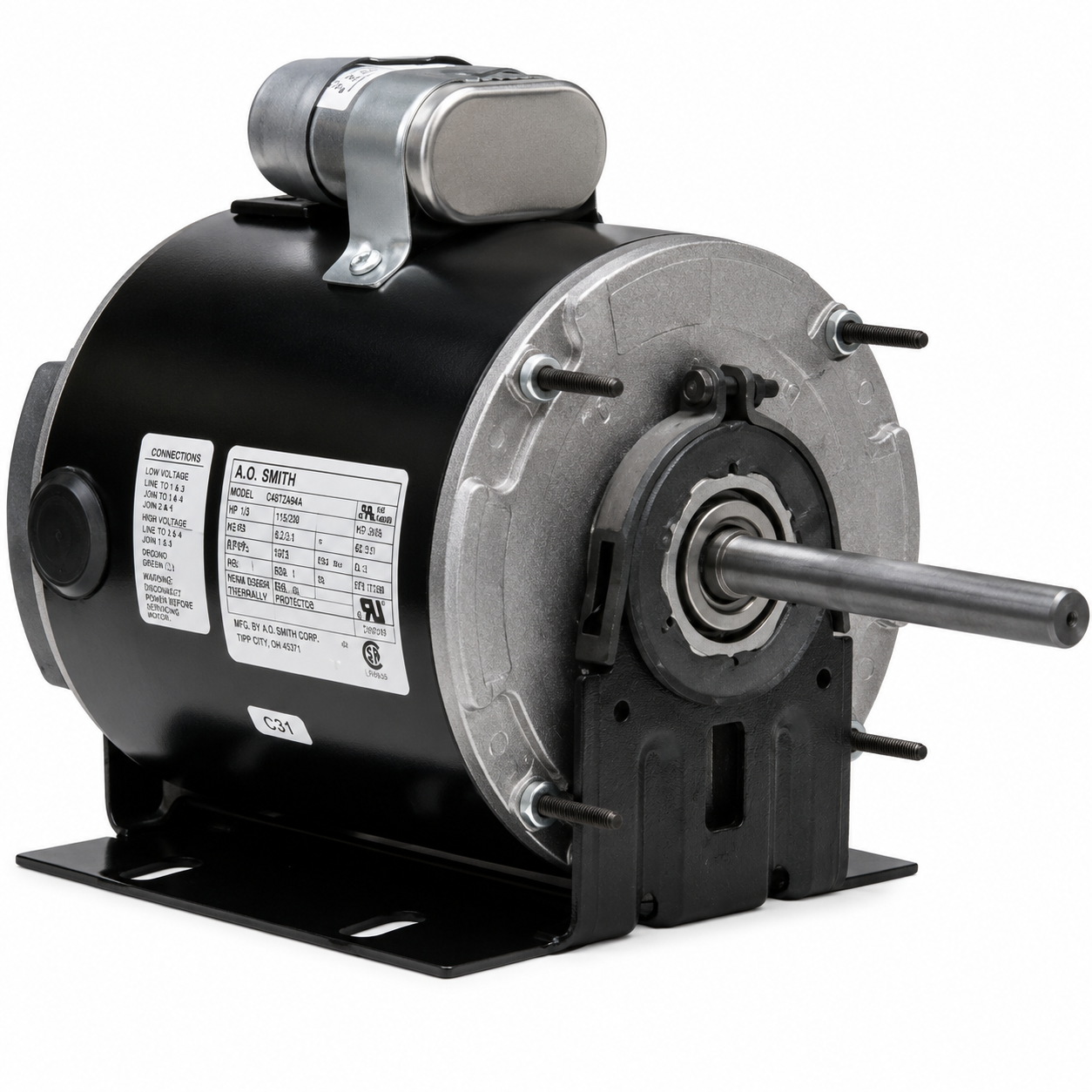

Century Unit Heater Motors (HVAC/R) 767A - 1/4 HP - 115/230 V - 1725 RPM - Single phase
Century Unit Heater Motors (HVAC/R) 767A - 1/4 HP - 115/230 V - 1725 RPM - Single phase

Century Unit Heater Motors (HVAC/R) 767A - 1/4 HP - 115/230 V - 1725 RPM - Single phase

Century
$464.00
$464.00
Quantity must be 1 or more
  • Horsepower : 1/4
  • RPM : 1725
  • Volts : 115/230
  • Amps : 3.40 / 1.70
  • Frequency : 60 Hz
  • Length : 6-3/4"
  • "C" Dim. : 11-13/16"
  • Enclosure : Totally Enclosed
  • Shaft Dim. : 1/2” x 4-1/2”
  • Type : Permanent Split Capacitor
  • Speeds : 1
  • Diameter : 5-5/8"
  • Bearings : Ball
  • Rotation : Reversible
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 60°C
  • Capacitor Rating : 7.5MFD-370VAC
  • Feature(s) : Class 'B' Insulation, Capacitor Included, Resilient Base
  • Weight (lbs.) : 19
  • Reference : A.O. Smith 767, A.O. Smith F48Z45A01, Fasco D736, Trane 6144, Universal Electric HF2J052 HF2J7052
