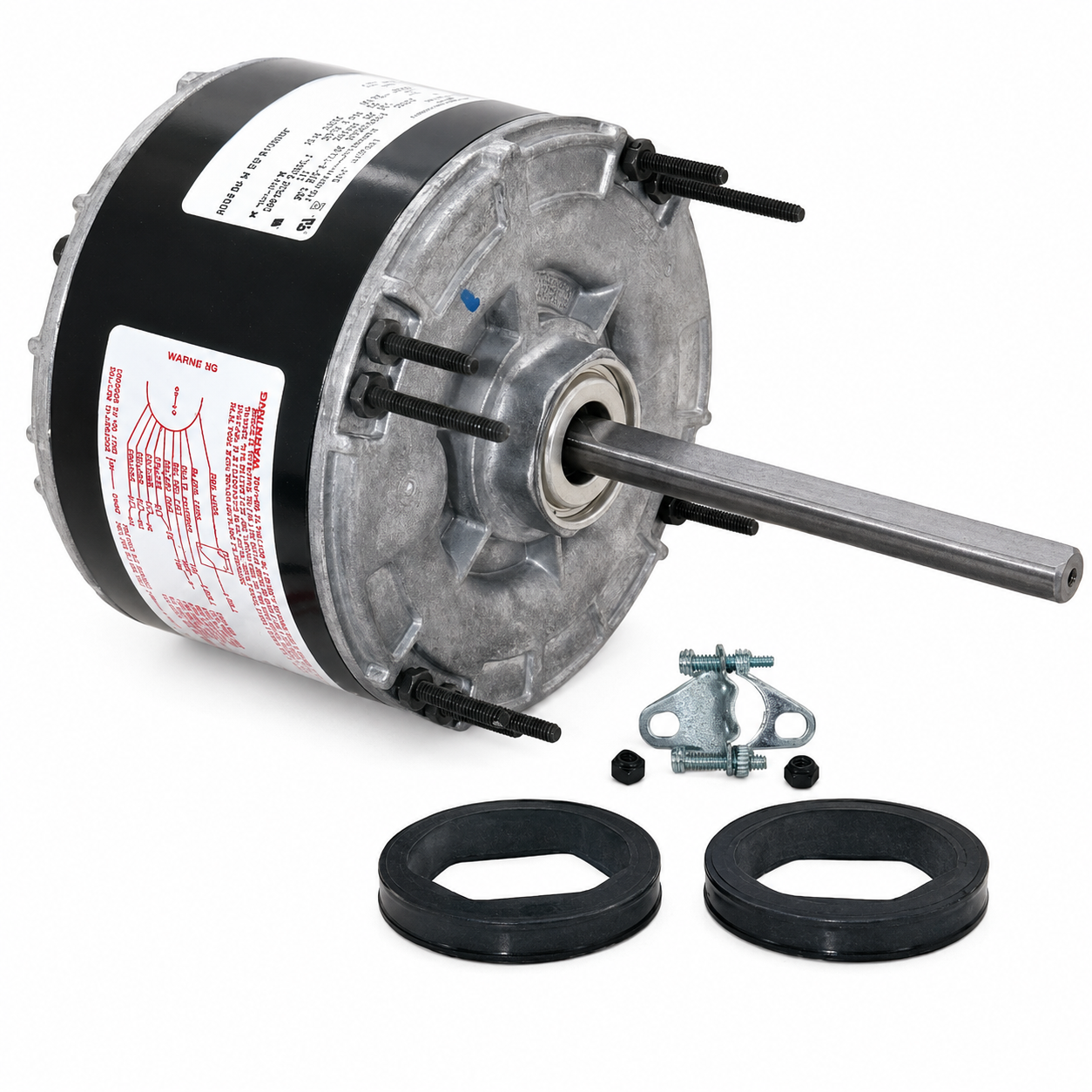

Century Unit Heater Motors (HVAC/R) 136A - 1/6 HP - 115 V - 1075 RPM - Single phase
Century Unit Heater Motors (HVAC/R) 136A - 1/6 HP - 115 V - 1075 RPM - Single phase

Century Unit Heater Motors (HVAC/R) 136A - 1/6 HP - 115 V - 1075 RPM - Single phase

Century
Sold out
$440.00
Quantity must be 1 or more
  • Horsepower :1/6
  • Voltage :115
  • Amps :2.40
  • RPM :1075
  • Frequency :60 Hz
  • Length :3-3/4"
  • "C" Dim. :9-7/32"
  • Enclosure :Totally Enclosed Air Over
  • Shaft Dim. :1/2" x 5-1/2"
  • Type :Permanent Split Capacitor
  • Speeds :2
  • Diameter :5-5/8"
  • Frame :48Y
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :60°C
  • Capacitor Rating :7.5MFD-370V
  • Feature(s) :Class 'B' Insulation, No Base, Resilient rings and Thru-bolts included
  • Weight (lbs.) :10
  • Reference : A.O. Smith F48Y99A01, Emerson K55HXPBZ5000, Fasco 7126-0091, D733
