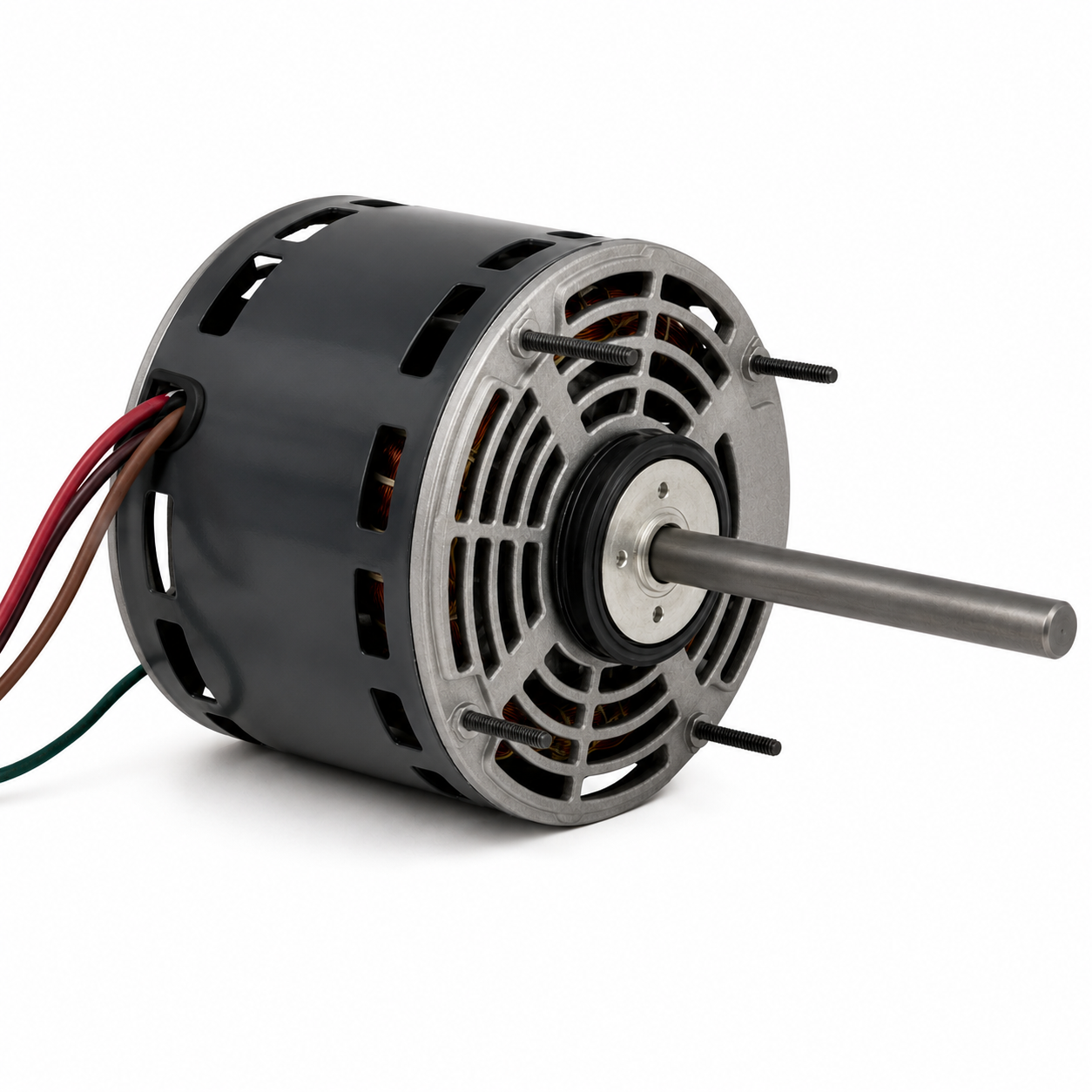

US Motors Fan & Blower Motors (HVAC/R) 1694 - 1/2 HP - 115 V - 1625 RPM - Single phase
US Motors Fan & Blower Motors (HVAC/R) 1694 - 1/2 HP - 115 V - 1625 RPM - Single phase

US Motors Fan & Blower Motors (HVAC/R) 1694 - 1/2 HP - 115 V - 1625 RPM - Single phase

US Motors
$279.00
$279.00
Quantity must be 1 or more
  • Horsepower : 1/2
  • Amps : 5.50
  • Frequency : 60 Hz
  • Length : 5.30"
  • "C" Dim. : 11.40"
  • Enclosure : Open Air Over
  • Shaft Dim. : 1/2" x 5.00"
  • Type : Permanent Split Capacitor
  • Speeds : 3
  • Diameter : 5-5/8"
  • Bearings : Sleeve
  • Rotation : Reversible
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 40°C
  • Capacitor Rating : 20MFD-370V
  • Feature(s) : Class 'B' Insulation, 2.5" Hub Ring Mount, 24" Leads, SAB Bearings have All Angle Thrust System
  • Weight (lbs.) : 16
  • Référence : Emerson K55HXPUG1550, Century Stock No. FDL1054, Fasco Stock No. D785, CPN 31676
