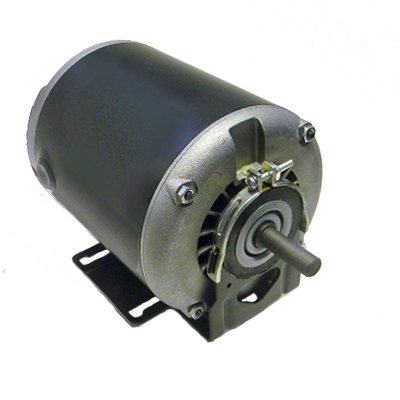

Emotortek Belted Fan Motors (HVAC/R) SS936D - 3/4 HP - 115/208-230 V - 1725 RPM - Single phase
Emotortek Belted Fan Motors (HVAC/R) SS936D - 3/4 HP - 115/208-230 V - 1725 RPM - Single phase

Emotortek Belted Fan Motors (HVAC/R) SS936D - 3/4 HP - 115/208-230 V - 1725 RPM - Single phase

Emotortek
$322.00
$322.00
Quantity must be 1 or more
  • Horsepower :3/4
  • Voltage :115/208-230
  • Amps :11.60/5.90-5.80
  • RPM :1725
  • Frequency :60 Hz
  • Length :10-9/16”
  • Enclosure :Open Drip-Proof
  • Shaft Dim. :5/8” x 1-7/8”
  • Type :Split Phase
  • Speeds :1
  • Diameter :6-1/2"
  • Frame :56H
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Ambient Temp. :40°C
  • Feature(s) :Class 'B' Insulation, 1/2” to 5/8” Sleeve & Key Included, Resilient Base
  • Weight (lbs.) :21
  • References: Emerson S63CXSJB7032, General Electric 4J354LX, CK48HB01F01, CK48HB01F02, US Motors 4115
