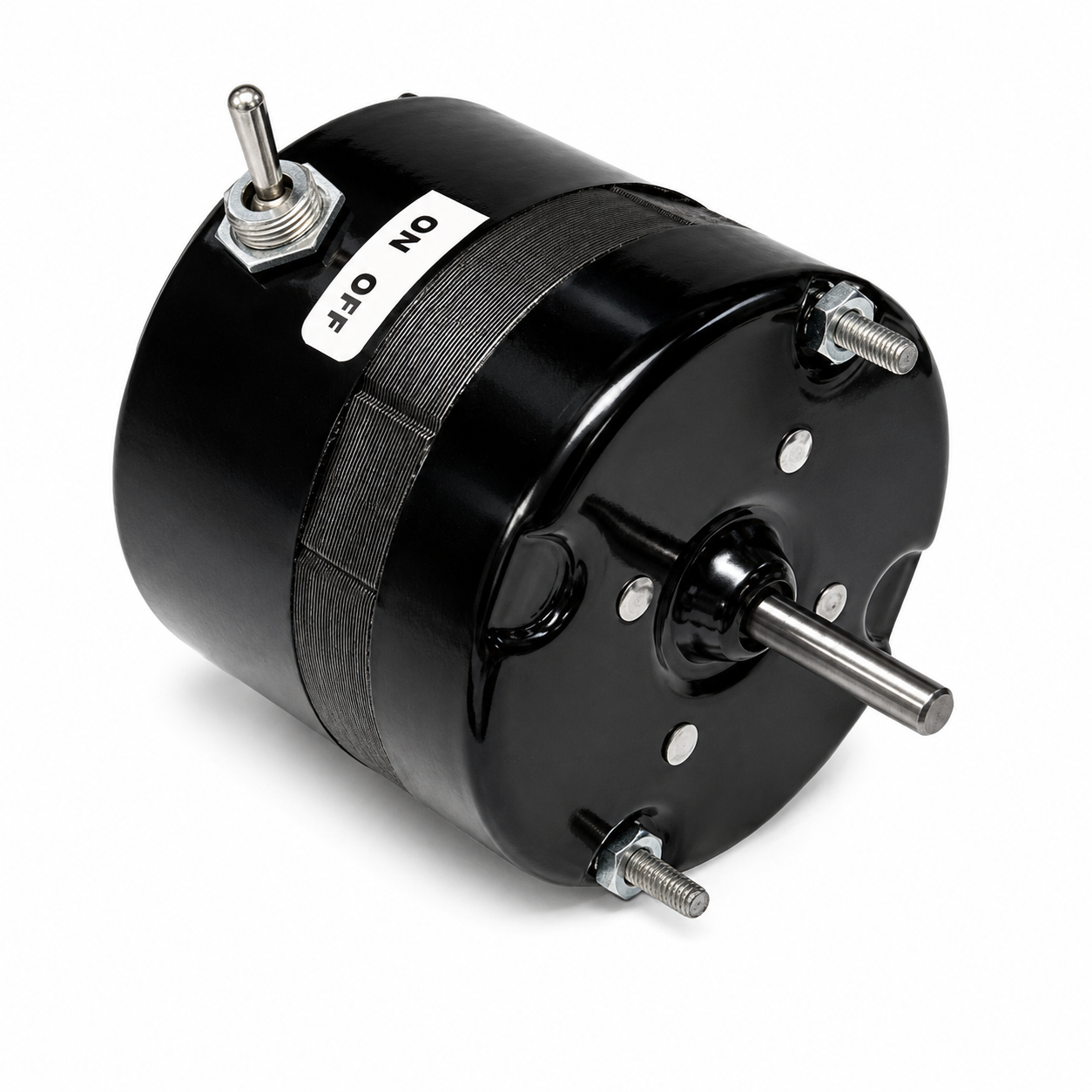

Emotortek OEM Replacement Motors (HVAC/R) SS403 - 1/25 HP - 115 V - 1550 RPM - Single phase
Emotortek OEM Replacement Motors (HVAC/R) SS403 - 1/25 HP - 115 V - 1550 RPM - Single phase

Emotortek OEM Replacement Motors (HVAC/R) SS403 - 1/25 HP - 115 V - 1550 RPM - Single phase

Emotortek
$167.00
$167.00
Quantity must be 1 or more
  • Type : Shaded Pole
  • HP : 1/125
  • Voltage : 115
  • RPM : 1550
  • Current (Amp) : 0.40
  • Phase : 1
  • Rotation : Counterclockwise Shaft End
  • Frame : 3.3
  • Enclosure : Totally Enclosed
  • Speeds : 1
  • Protector : Thermally Protected
  • Ambient Temp : 40°C
  • CFM : N/A
  • Service Factor : 1.00
  • Shaft Dimensions : 1/4 in X 1-1/4 in
  • Frequency : 60Hz
  • Diameter : 3.3 in
  • Frame Length : 2.79 in
  • Bearings : Sleeve
  • Capacitor Rating : N/A
  • Reference : Electrohome 2810-001-016 2818-410-817 2818-440-520 2868-405-028 2868-405-043 2868-405-122 2868-405-133 2868-405-134 2868-405-139 2868-405-155 2868-507-043 SM402 SM403, Fasco 7173-0940, Franklin Bluffton 8213215141 8213217470 8213217739 8213717859 AJ4131A AK4115A-2 AK41236A AK41270A, MacMillan 8213215104 8213215141 8213215202
