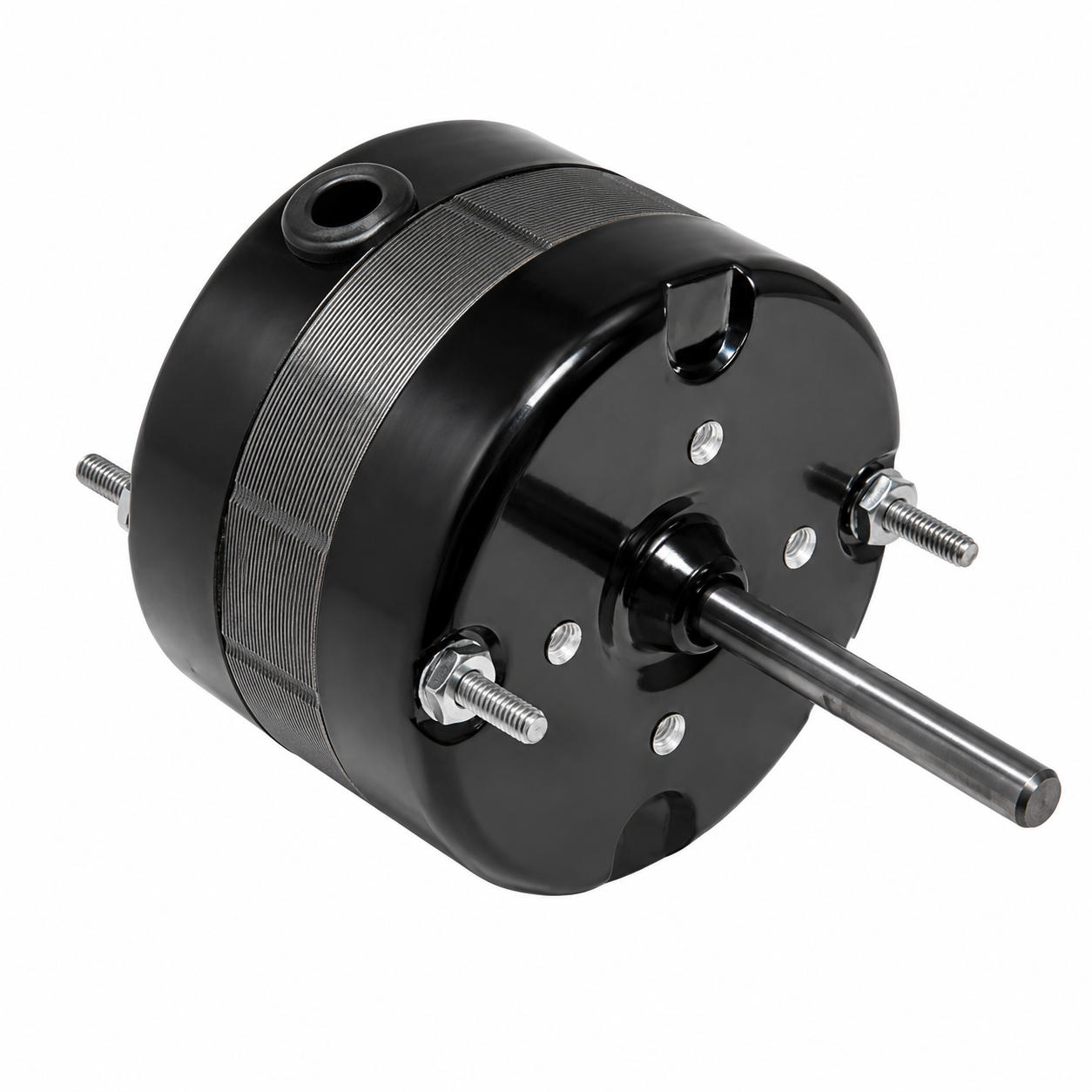

Emotortek OEM Replacement Motors (HVAC/R) - SS506 - 1/140 HP - 115 V - 1400 RPM - Single phase
Emotortek OEM Replacement Motors (HVAC/R) - SS506 - 1/140 HP - 115 V - 1400 RPM - Single phase

Emotortek OEM Replacement Motors (HVAC/R) - SS506 - 1/140 HP - 115 V - 1400 RPM - Single phase

Emotortek
$70.00
$70.00
Quantity must be 1 or more
  • Type : Shaded Pole
  • HP : 1/140
  • Voltage : 115
  • RPM : 1400
  • Current (Amp) : 0.50
  • Phase : 1
  • Rotation : Counterclockwise Shaft End
  • Frame : 3.3
  • Enclosure : Totally Enclosed
  • Speeds : 1
  • Protector : Thermally Protected
  • Ambient Temp : 40°C
  • CFM : N/A
  • Service Factor : 1.00
  • Shaft Dimensions : 1/4 in X 2 in
  • Frequency : 60Hz
  • Diameter : 3.3 in
  • Frame Length : 1.85 in
  • Bearings : Sleeve
  • Capacitor Rating : N/A
  • Reference : Electrohome 2686-505-088 2818-410-523 2818-410-822 2818-440-561 2862-403-001 2868-403-001 2868-403-004 2868-403-025 2868-403-027 2868-403-032 2868-403-033 2868-403-037 2868-403-042 2868-403-043 2868-403-053 2868-403-824 2868-405-058 2868-410-301 2868-505-008 2868-505-098 2N11501 2N11701 2N7701 2N7703 2N8701 2N9101 SM202, Franklin Bluffton 8213015003 8212815001 8213015003, Broan Nutone 800725 2N8701, Rotom R506, Universal Electric AA2A6523 AA2A6387 JA2C316 JA2C316N
