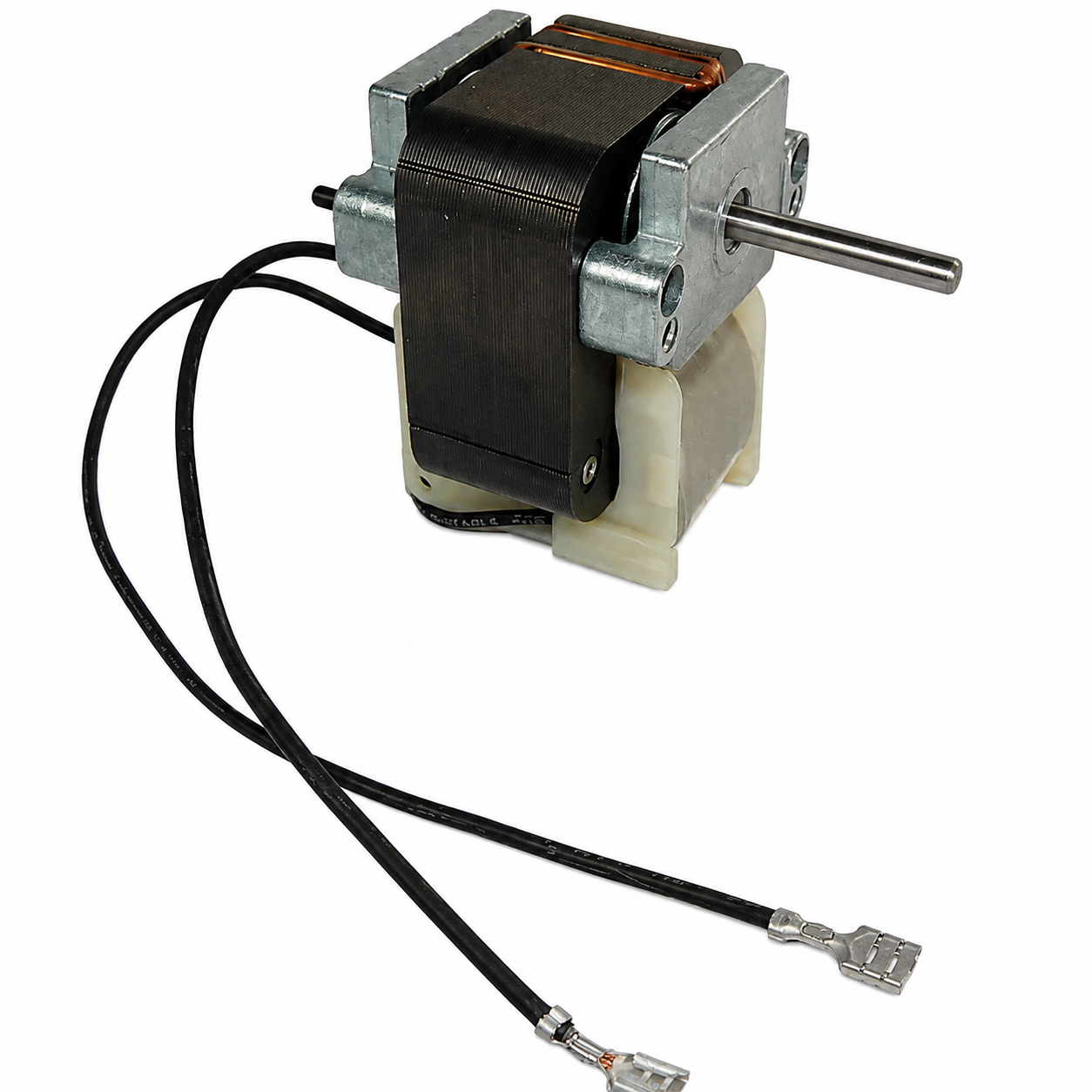

Fasco C Frame Motors (HVAC/R) K101 - 1/50 HP - 240 V - 1260 RPM - Single phase
Fasco C Frame Motors (HVAC/R) K101 - 1/50 HP - 240 V - 1260 RPM - Single phase

Fasco C Frame Motors (HVAC/R) K101 - 1/50 HP - 240 V - 1260 RPM - Single phase

Fasco
$119.00
$119.00
Quantity must be 1 or more

• HP: 1/150
• Voltage: 240
• RPM: 1260
• AMPs: 0.52
• Phase: 1
• Rotation: CCWSE
• Frame: Skeleton
• Enclosure: Open
• Speeds: 1
• Protector: Thermally Protected
• Ambient Temp: 40°C
• Service Factor: 1
• Shaft Dimensions: 7/32" X 1.34"
• Frequency: 60Hz
• Diameter: Skeleton
• Length: 3.86"
• Bearings: Sleeve
• Features: class b insul, 12.5"/11.5" leads with spade terminal, extended studs opposite shaft end
• Weight: 2 lbs
