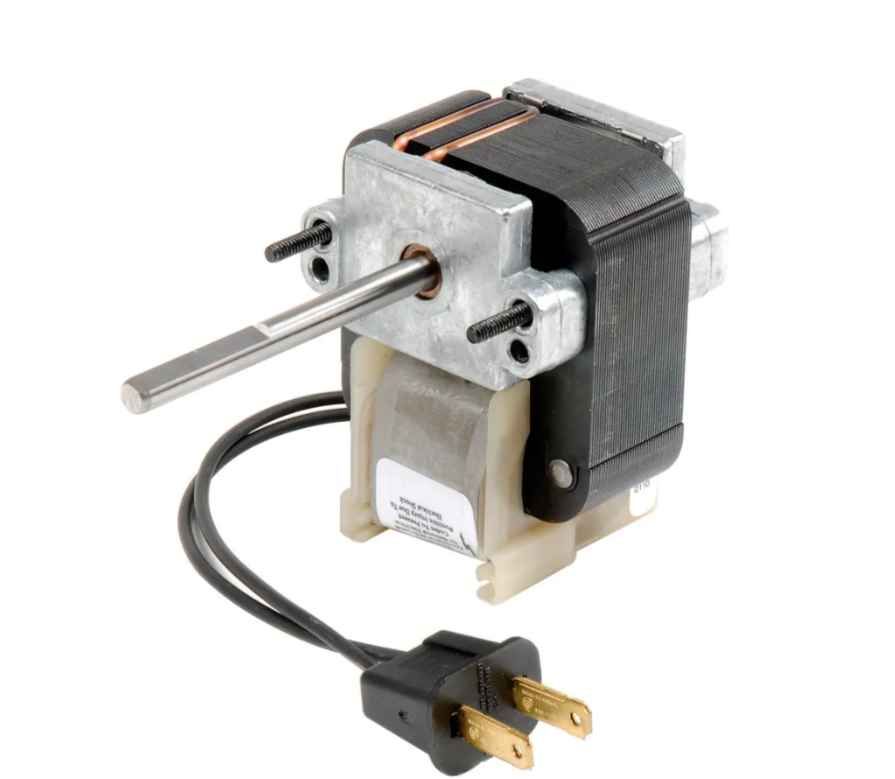

Fasco C Frame Motors (HVAC/R) K611 - 1/100 HP - 120 V - 3000 RPM - Single phases
Fasco C Frame Motors (HVAC/R) K611 - 1/100 HP - 120 V - 3000 RPM - Single phases

Fasco C Frame Motors (HVAC/R) K611 - 1/100 HP - 120 V - 3000 RPM - Single phases

Fasco
$79.00
$79.00
Quantity must be 1 or more

HP: 1/100
Voltage: 120
RPM: 3000
Current (Amp): 0.63
Phase: 1
Rotation: Counterclockwise Shaft End
Frame: Skeleton
Enclosure: Open
Speeds: 1
Protector: Thermally Protected
Ambient Temp: 40°C
Service Factor: 1.00
Shaft Dimensions: 0.250 in X 2.45 in
Frequency: 60Hz
Frame Length: 1.80 in
Bearings: Sleeve
Features: Class B Insulation, 8.5"/6.5" Leads with Molded Plug, Extended Studs Shaft End, Thermally Protected, One-Shot Fuse
Cross References: Fasco 7158-1214 7102-1269, Rotom R601, 2858-406-001
