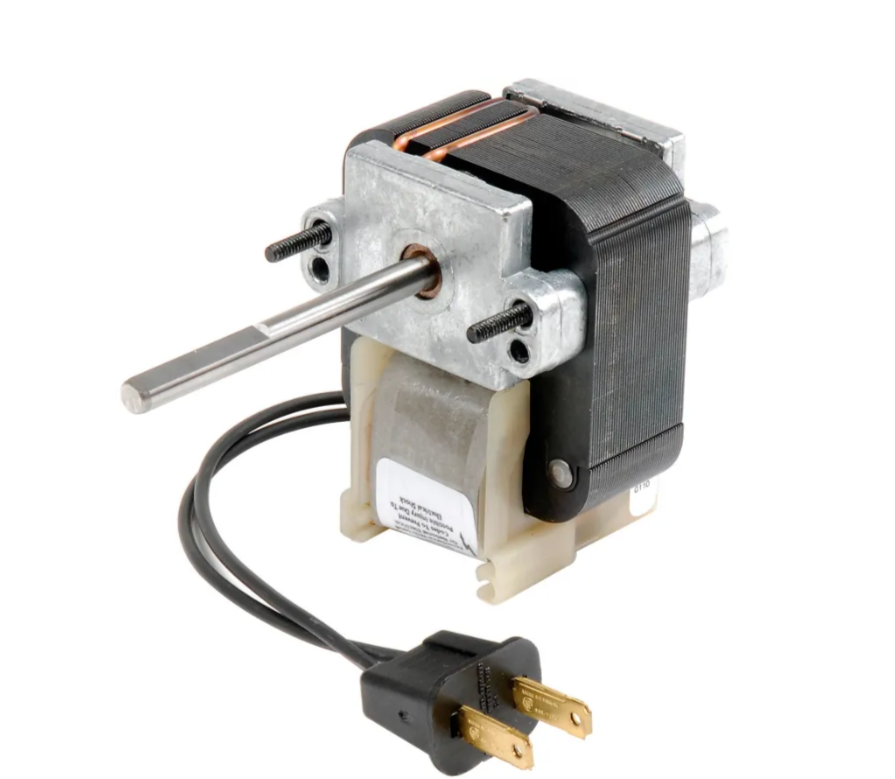

Fasco C Frame Motors (HVAC/R) K612 - 1/65 HP - 120 V - 3000 RPM - Single phase
Fasco C Frame Motors (HVAC/R) K612 - 1/65 HP - 120 V - 3000 RPM - Single phase

Fasco C Frame Motors (HVAC/R) K612 - 1/65 HP - 120 V - 3000 RPM - Single phase

Fasco
$82.00
$82.00
Quantity must be 1 or more

HP: 1/65
Voltage: 120
RPM: 3000
Current (Amp): 0.73
Phase: 1
Rotation: Clockwise Shaft End
Frame: Skeleton
Enclosure: Open
Speeds: 1
Protector: Thermally Protected
Ambient Temp: 40°C
Service Factor: 1.00
Shaft Dimensions: 0.250 in X 2.70 in
Frequency: 60Hz
Frame Length: 2.05 in
Bearings: Sleeve
Features: Class B Insulation, 8.5"/6.5" Leads with Molded Plug, Extended Studs Shaft End, Thermally Protected, One-Shot Fuse
Cross References: Fasco 7102-1268 7158-1187 7102-2639, 2858-409-001
