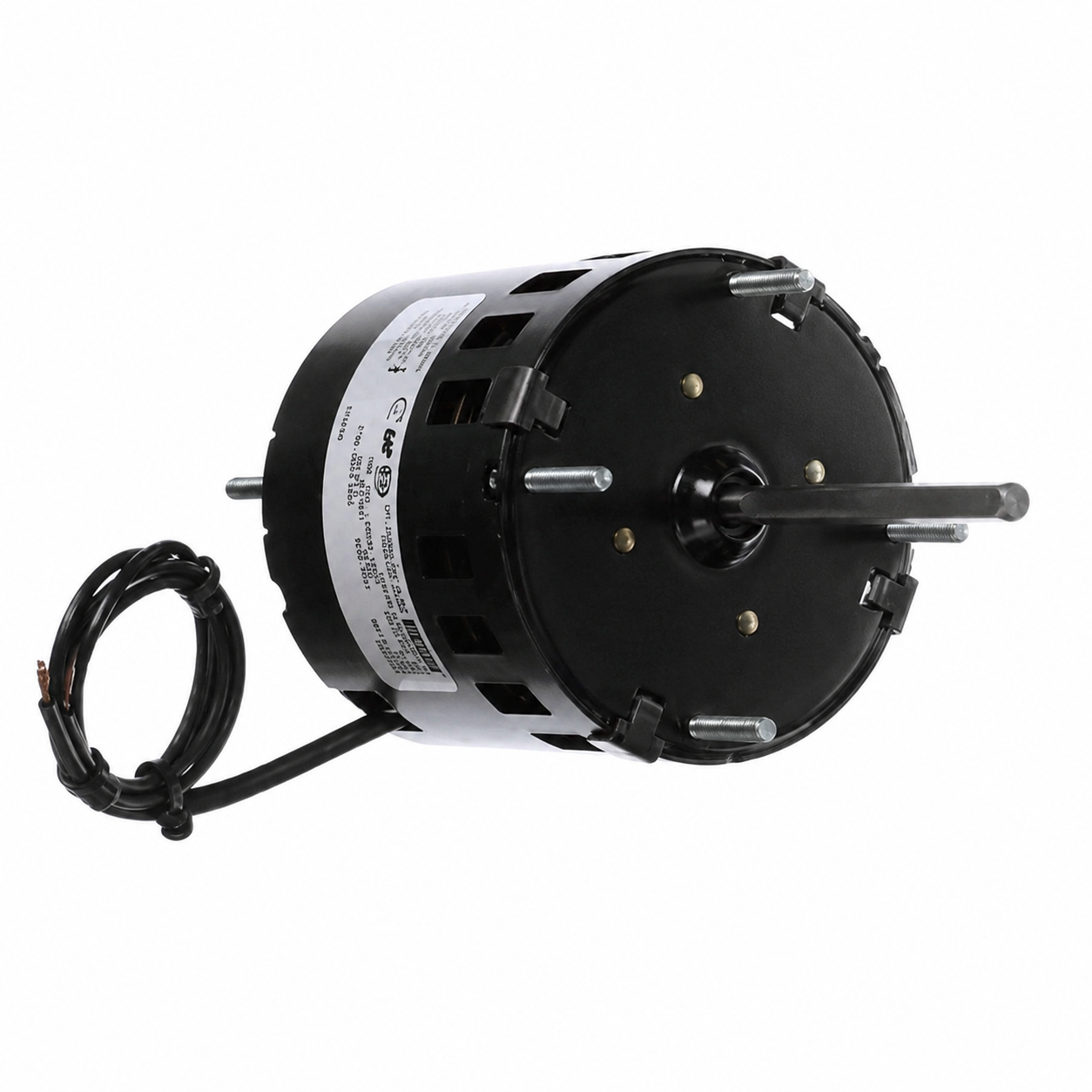

Fasco Fan & Blower Motors (HVAC/R) D184 - 1/25 HP - 115 V - 1500 RPM - Single phase
Fasco Fan & Blower Motors (HVAC/R) D184 - 1/25 HP - 115 V - 1500 RPM - Single phase

Fasco Fan & Blower Motors (HVAC/R) D184 - 1/25 HP - 115 V - 1500 RPM - Single phase

Fasco
$175.00
$175.00
Quantity must be 1 or more
  • Horsepower :1/25
  • Voltage :115
  • Amps :1.2
  • RPM :1500
  • Frequency :60 Hz
  • "C" Dim. :5.42"
  • Enclosure :Totally Enclosed Air Over
  • Shaft Dim. :5/16" x 2.3"
  • Type :Shaded Pole
  • Speeds :1
  • Diameter :3.3"
  • Frame :3.3
  • Bearings :Sleeve
  • Rotation :CWSE
  • Protector :Thermally Protected
  • Service Factor :1
  • Phase :1
  • Ambient Temp. :40°C
  • Weight (lbs.) :5
  • References: Electrohome 2818510810 2818511004 2818511008 2818511203 2818513012 2818511204 2818541010 2818541011 2818541016 2818541206 2818541207 2818541211 2818541214 2818531203 2828531207 2828541203 2868511016 2868511020 2868513002 2868513003 2868513006 2868513008 2868513014 2868513049 2868513091, Fasco 7163-7875, OmniDrive SS213, Rotom R213 R1164, 76213, SM213E
