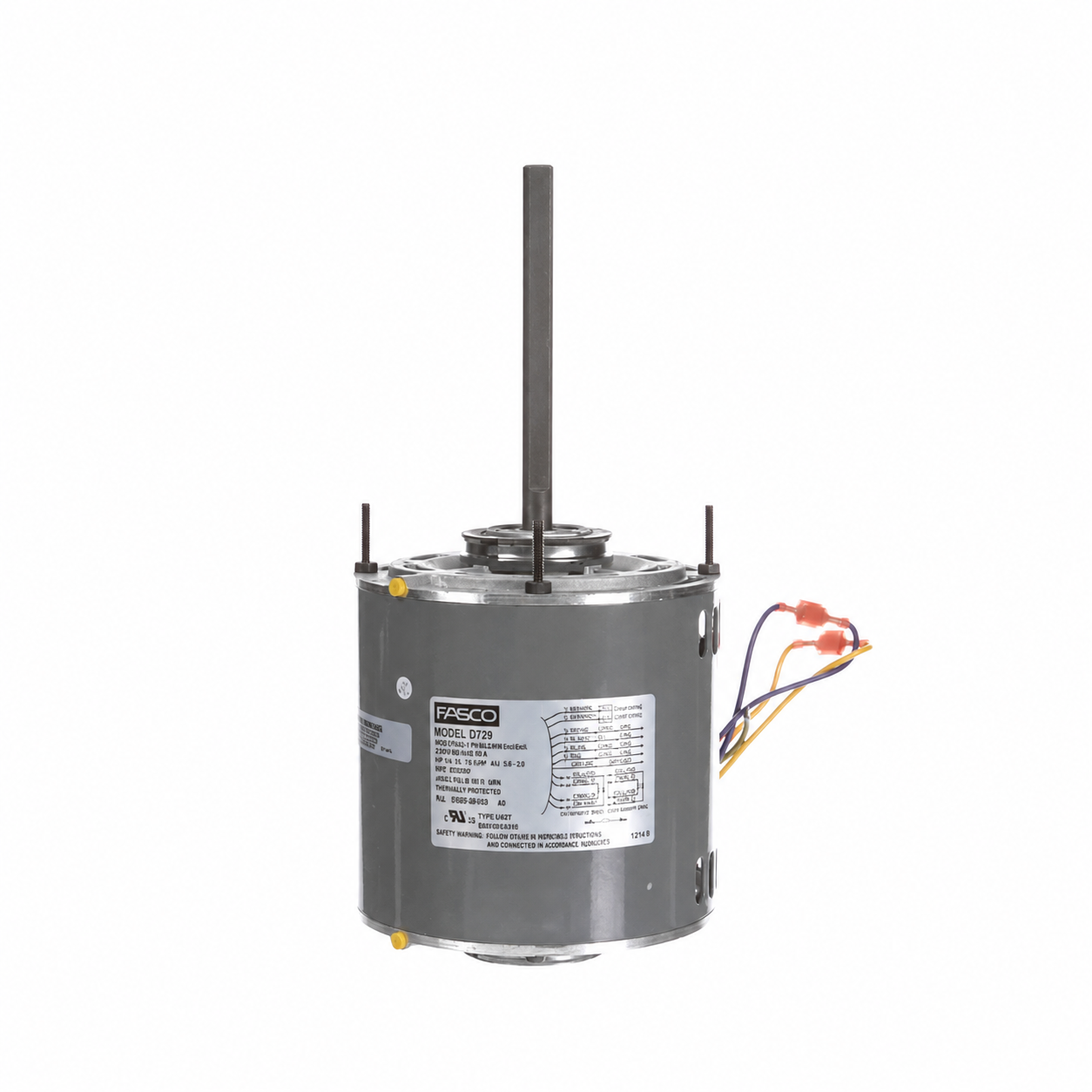

Fasco Fan & Blower Motors (HVAC/R) D729 - 3/4 HP - 230 V - 1075 RPM - Single phase
Fasco Fan & Blower Motors (HVAC/R) D729 - 3/4 HP - 230 V - 1075 RPM - Single phase

Fasco Fan & Blower Motors (HVAC/R) D729 - 3/4 HP - 230 V - 1075 RPM - Single phase

Fasco
Sold out
$226.00
Quantity must be 1 or more

• HP: 3/4
• Voltage: 230
• RPM: 1075
• Current (Amp): 5.40
• Phase: 1
• Rotation: Reversible
• Frame: 48
• Enclosure: Open Drip Proof
• Speeds: 3
• Protector: Automatic
• Ambient Temp: 40°C
• Service Factor: 1.00
• Shaft Dimensions: 0.500 in X 6 in
• Frequency: 60Hz
• Diameter: 5.5 in
• Frame Length: 5.51 in
• Bearings: Sleeve
• Capacitor Rating: 10-44

• Features: class b insulation, 26" leads, extended studs shaft end, resilient ring mounting, belly band mounting (belly band not included), open shaft end and lead end, shell half vented, air over, capacitor required: 10 mfd-370 volts (not supplied with motor)
• Reference : A.O.Smith Century EM3590 D1076 488, General Electric 3590, Marathon X010
