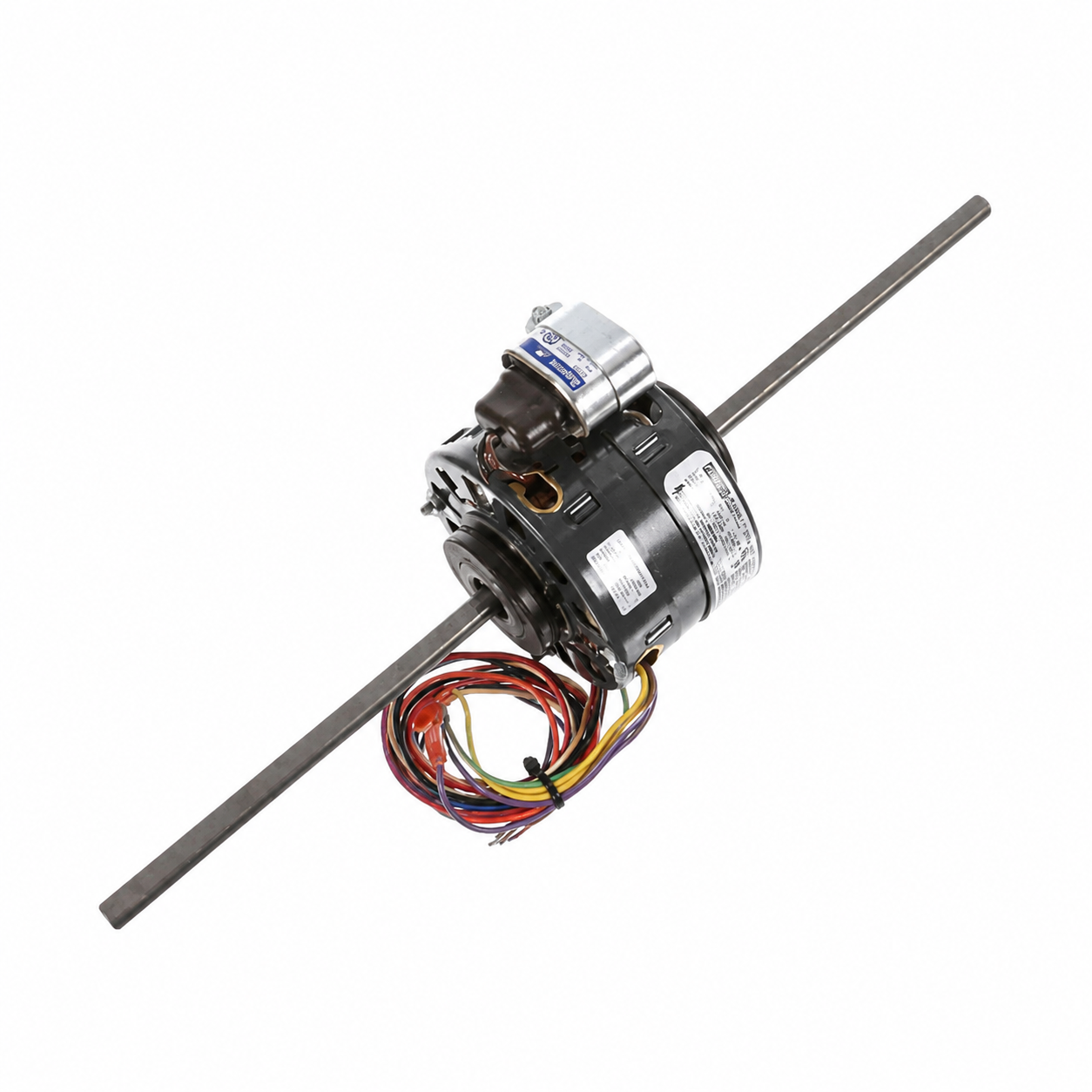

Fasco Fan Coil Motors (HVAC/R) D221A - 1/6 HP - 120 V - 1550 RPM - Single phase
Fasco Fan Coil Motors (HVAC/R) D221A - 1/6 HP - 120 V - 1550 RPM - Single phase

Fasco Fan Coil Motors (HVAC/R) D221A - 1/6 HP - 120 V - 1550 RPM - Single phase

Fasco
Sold out
$395.00
Quantity must be 1 or more
  • Horsepower :1/6-1/8-1/10-1/12
  • Voltage :120
  • Amps :3.2/1.7/1.3/1.1 A
  • RPM :1550
  • Frequency :60 Hz
  • Length :3.34"
  • Enclosure :Open Air Over
  • Shaft Dim. :8.18" X 1/2" X 8.13"
  • Type :Permanent Split Capacitor
  • Speeds :4
  • Diameter :5"
  • Frame :42
  • Bearings :Sleeve
  • Rotation :Reversible
  • Protector :Thermal
  • Service Factor :1
  • Phase :1
  • Ambient Temp. :40°C
  • Capacitor Rating :5 mfd @ 370V (included)
  • Feature(s) :30" Leads with .5" Strip
  • Weight (lbs.) :9
  • Reference : A.O. Smith 748, Fasco 7184-0264 7174-2472 7174-2679, U.S. Motors 8525
