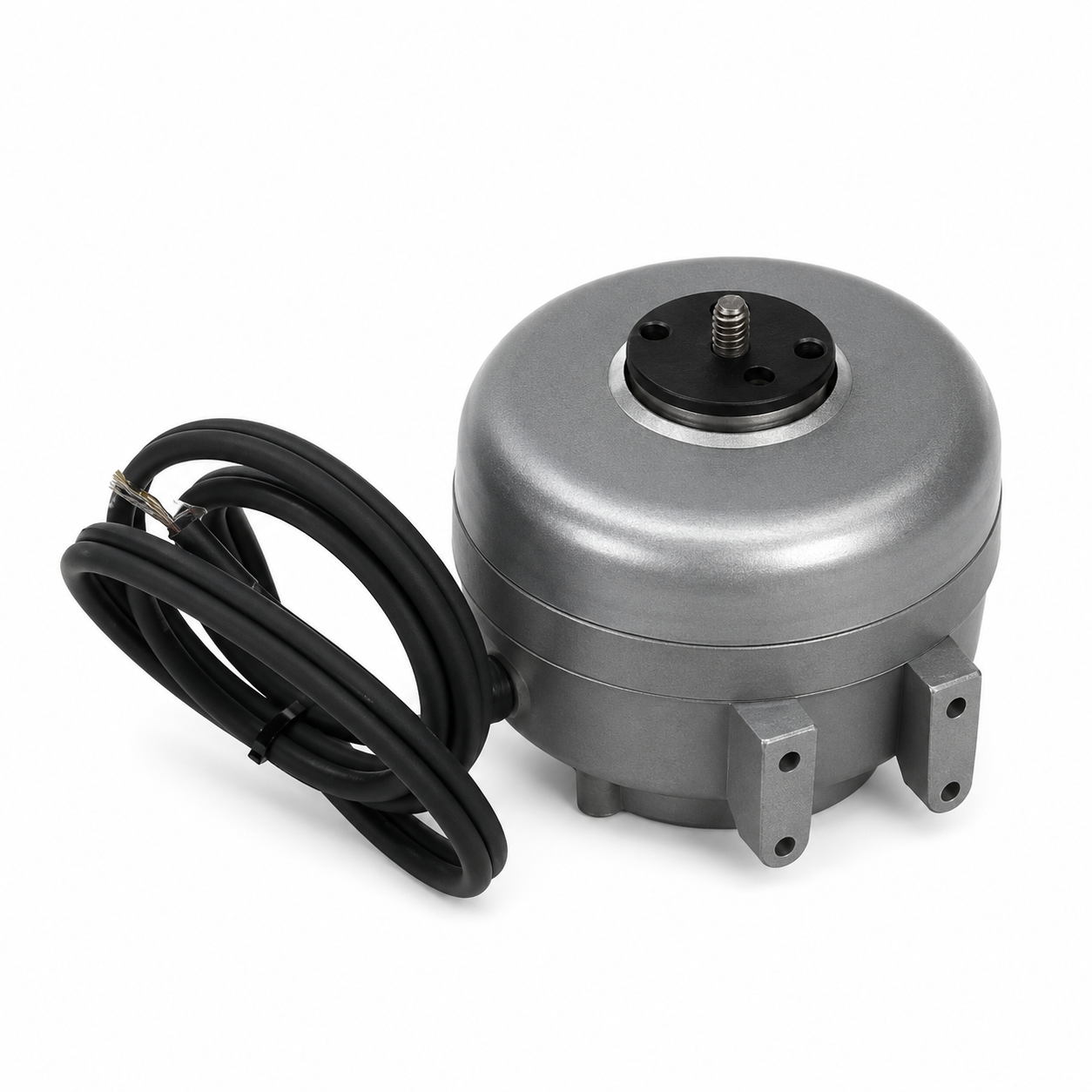

Fasco Refrigeration Motors (HVAC/R) UB556 - 4 Watt - 230 V - 1450 RPM - Single phase
Fasco Refrigeration Motors (HVAC/R) UB556 - 4 Watt - 230 V - 1450 RPM - Single phase

Fasco Refrigeration Motors (HVAC/R) UB556 - 4 Watt - 230 V - 1450 RPM - Single phase

Fasco
$54.00
$54.00
Quantity must be 1 or more

• HP: 4 Watt
• Voltage: 230
• RPM: 1450
• Current (Amp): 0.15
• Phase: 1
• Rotation: Clockwise Lead End
• Frame: Unit Bearing
• Enclosure: Totally Enclosed Air Over
• Speeds: 1
• Protector: Impedence
• Ambient Temp: 40°C
• Service Factor: 1.00
• Shaft Dimensions: Threaded 1/4x20 in X 0.415 in
• Frequency: 60Hz
• Diameter: 3.3 in
• Frame Length: 2.87 in
• Bearings: Unit
• Features: class b insulation, 12 in leads with 0.5 in strip, extended studs opposite shaft end, thermally protected, one-shot fuse, includes vibration dampening hub washer, speed nut and 4 mounting screws.
