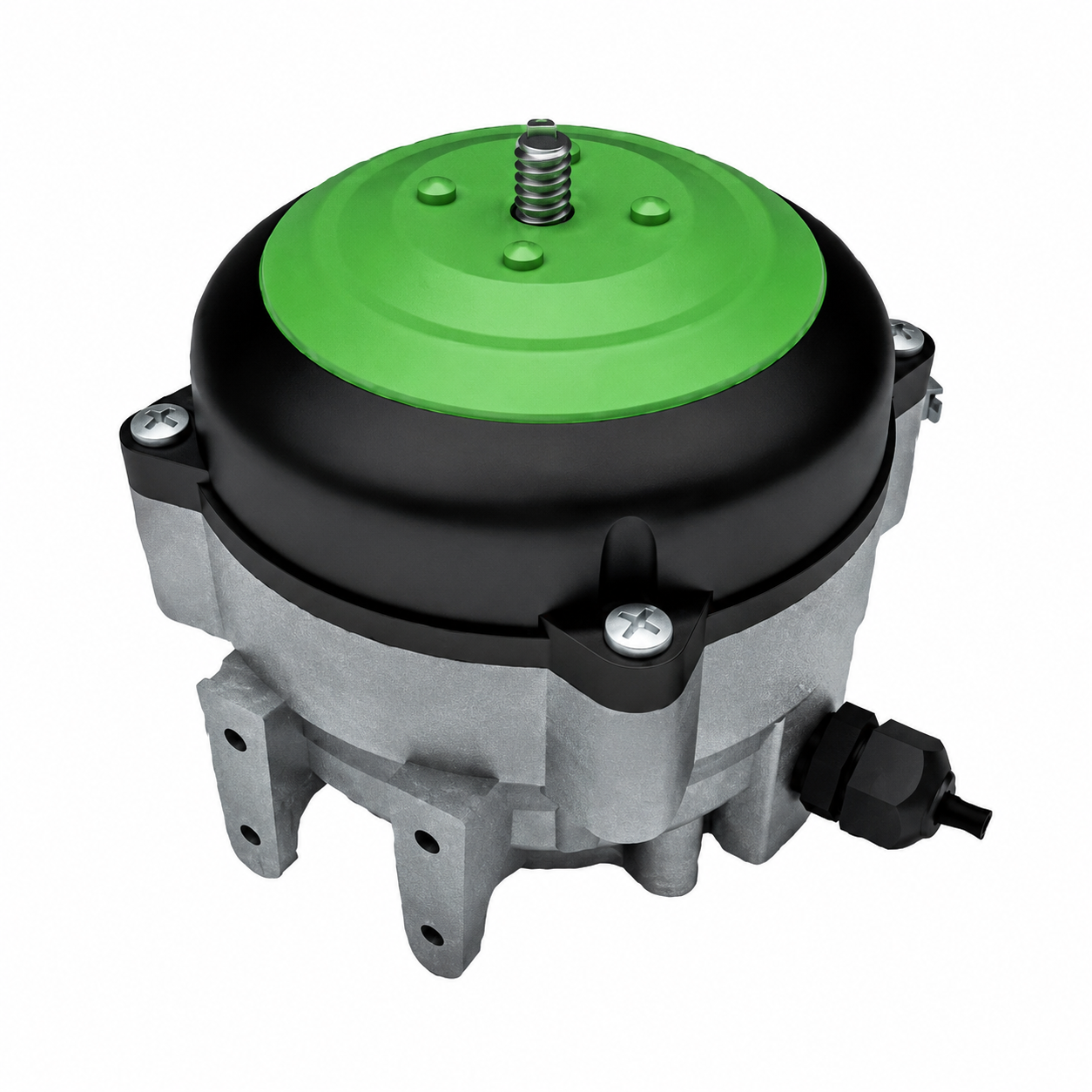

Genteq ECM Motors (HVAC/R) MD5411S - 20 Watt - 115/230 V - 1550 RPM - Single phase
Genteq ECM Motors (HVAC/R) MD5411S - 20 Watt - 115/230 V - 1550 RPM - Single phase

Genteq ECM Motors (HVAC/R) MD5411S - 20 Watt - 115/230 V - 1550 RPM - Single phase

Genteq
Sold out
$124.00
Quantity must be 1 or more
  • Watts :4-20
  • Voltage :115/230
  • Amps :0.20-0.55
  • RPM :1550
  • Frequency :60 Hz
  • "C" Dim. :3.11"
  • Enclosure :TE IP67
  • Shaft Dim. :Hubless
  • Type :Electronically Commutated
  • Speeds :1
  • Diameter :3.58"
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Thermally Protected
  • Service Factor :1
  • Phase :Manual
  • Ambient Temp. :- 40°C to 55°C
  • Feature(s) :Aluminum Frame, UL/CUL Approved, All Angle Moisture Protection, Universal Mounting, Includes Plug, IP67, Water submersible up to 30 minutes
  • Weight (lbs.) :2
  • Reference :R6711, R6712, R6811, 110.441.0546, R5443, R5444, 5443, 5444, 5SME44GG5014, 5SME44GG5015, ECHE0147, ECHE0170, ECHE0176, ECHE0182, EC-HE0147, EC-HE0170, EC-HE0176, EC-HE0182, EC-HE-0147, EC-HE-0170, EC-HE-0176, EC-HE-0182, EDA12153UC0147, EDA12153UC0170, EDA12153UC0176, EDA10153UC0182, 34410013, 34410009, 24681010, 34410012, P078449H, P079441C, P066237A, MCEU 12-12/075, ECB12UN302, 34410009, ECM12W115V075, MCEU 12-15, EBA12153UC0040, 34410013, EC-HE-0040, EBA12153UN0048, 34415010, EC-HE-0048, 41-17879, MCEU 12-15/120, ECB12UA301, ECM12W115V125, 5R016, 5R024, 5R025, 5R020, 5R021, 5R019, 5R999, 10891, MD5411, MD5411S, MD5469, MD5470, MD5471, MD5472
