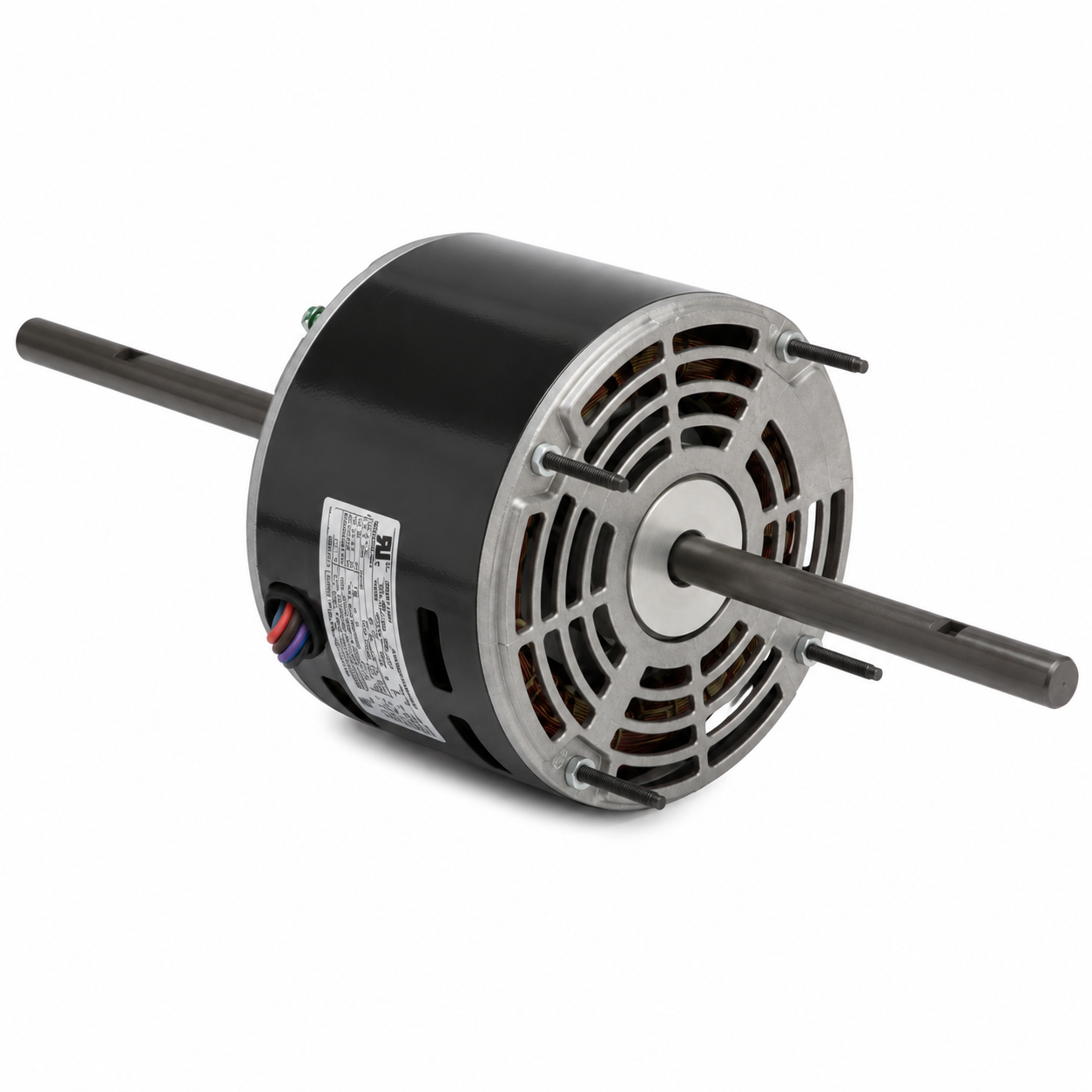

US Motors Fan Coil Motors (HVAC/R) NAL1016 - 1/6 HP - 115 V - 1075 RPM - Single phase
US Motors Fan Coil Motors (HVAC/R) NAL1016 - 1/6 HP - 115 V - 1075 RPM - Single phase

US Motors Fan Coil Motors (HVAC/R) NAL1016 - 1/6 HP - 115 V - 1075 RPM - Single phase

US Motors
$183.00
$183.00
Quantity must be 1 or more
  • Horsepower : 1/6
  • Amps : 2.8
  • Length : 3.812"
  • "C" Dim. : 22.0"
  • Enclosure : Open Drip-Proof
  • Shaft Dim. : 9.1" X 1/2" X 9.1"
  • Type : Permanent Split Capacitor
  • Speeds : 3
  • Diameter : 5-5/8"
  • Bearings : Self Aligning Bearings
  • Rotation : CCWLE
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 40°C
  • Capacitor Rating : 5MFD-370V
  • Feature(s) : Hub & Ring on one side, length adapter with hub & ring included
  • Weight (lbs.) : 10
  • NAL1016 fan coil motor designed for HVAC fan coil units, air handlers and ventilation systems requiring a reliable 1/6 HP 115V motor.
  • Reference :A.O. Smith 321P444, 323P115, 323P762, 396P006, F48C10A02, F48SD6L4, F48SD6L7, F48SD6L8, F48SD6MA21, F48SD6MA27, F48SD6MB2, F48SE6MA30, F48SE6MA33, F48SE6MA5, F48SE6MA9, F48SF6MA30, F48SFMA30, F48SG6MA3, Carrier HC37CB116, HC37CE232, P257X042, Century RAL1016, Emerson K55HXRHF2141, K55HXSAE5799, Fasco D754, Franklin Bluffton 8745610291, General Electric 3651, 5KCP39CG9699, Marathon X042, Rotom R52126.
