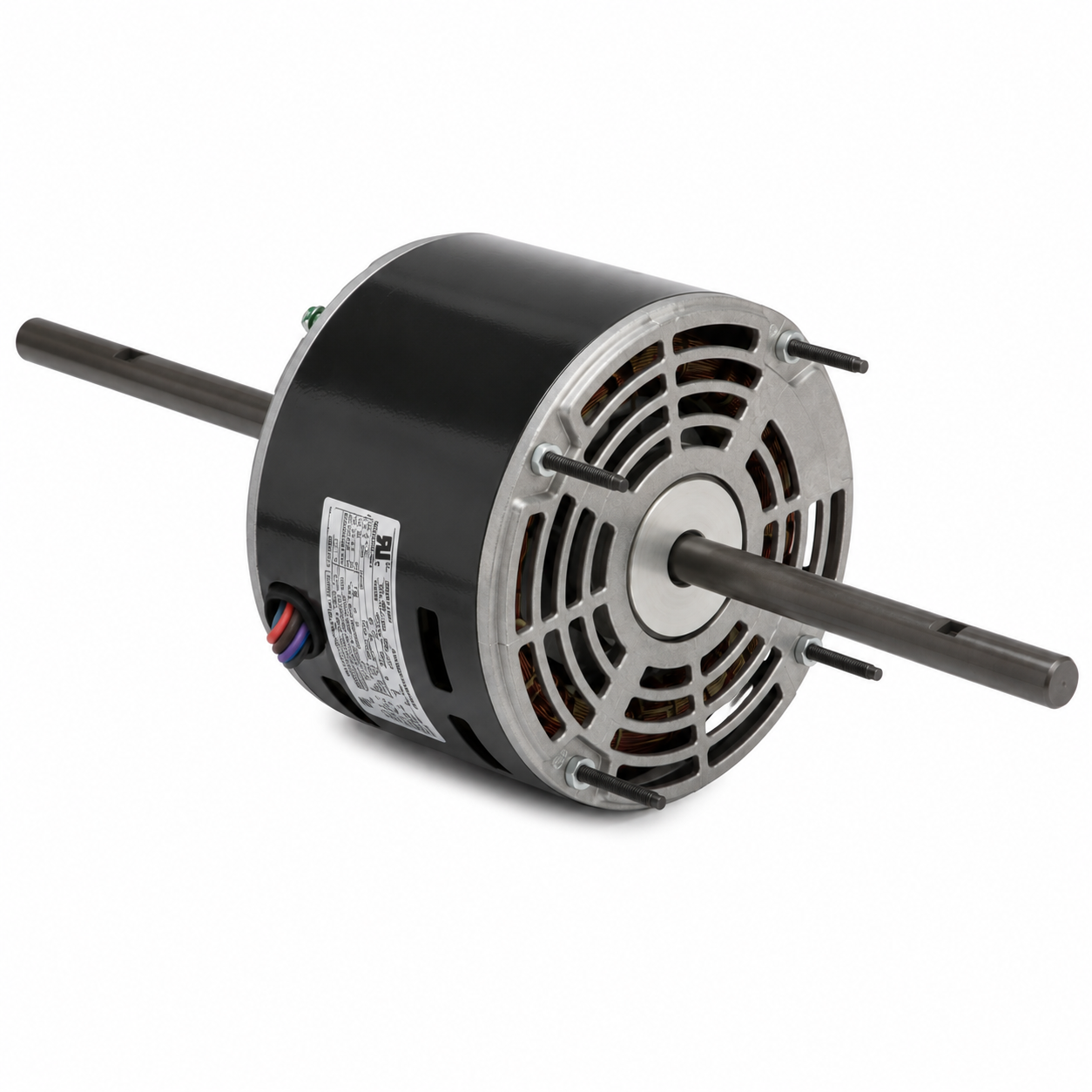

US Motors Fan Coil Motors (HVAC/R) NAL1026 - 1/4 HP - 115 V - 1075 RPM - Single phase
US Motors Fan Coil Motors (HVAC/R) NAL1026 - 1/4 HP - 115 V - 1075 RPM - Single phase

US Motors Fan Coil Motors (HVAC/R) NAL1026 - 1/4 HP - 115 V - 1075 RPM - Single phase

US Motors
$239.00
$239.00
Quantity must be 1 or more
  • Horsepower : 1/4
  • Amps : 4.3
  • "C" Dim. : 22.0"
  • Enclosure : Open Drip-Proof
  • Shaft Dim. : 8.7" X 1/2" X 8.7"
  • Type : Permanent Split Capacitor
  • Speeds : 3
  • Diameter : 5-5/8"
  • Bearings : Ball
  • Rotation : CCWLE
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 40°C
  • Capacitor Rating : 5MFD-370V
  • Feature(s) : Hub & Ring on one side, length adapter with hub & ring included
  • Weight (lbs.) : 11
  • Référence : A.O. Smith 322P840, 323P281, 323P823, F48C12A02, F48SF6MA16, F48SG6L5, F48SG6MA13, F48SG6MA5, Carrier HC37CA113, HC37CA116, P257X057, Century RAL1026, Dayton 4MA79, Emerson K55HXRJH2166, Fasco D756, Franklin Bluffton 8716317070, 8726410111, 8746010211, 8746017211, GE 3671, Marathon X061, Omnidrive SS749
Back to 1 Phase
