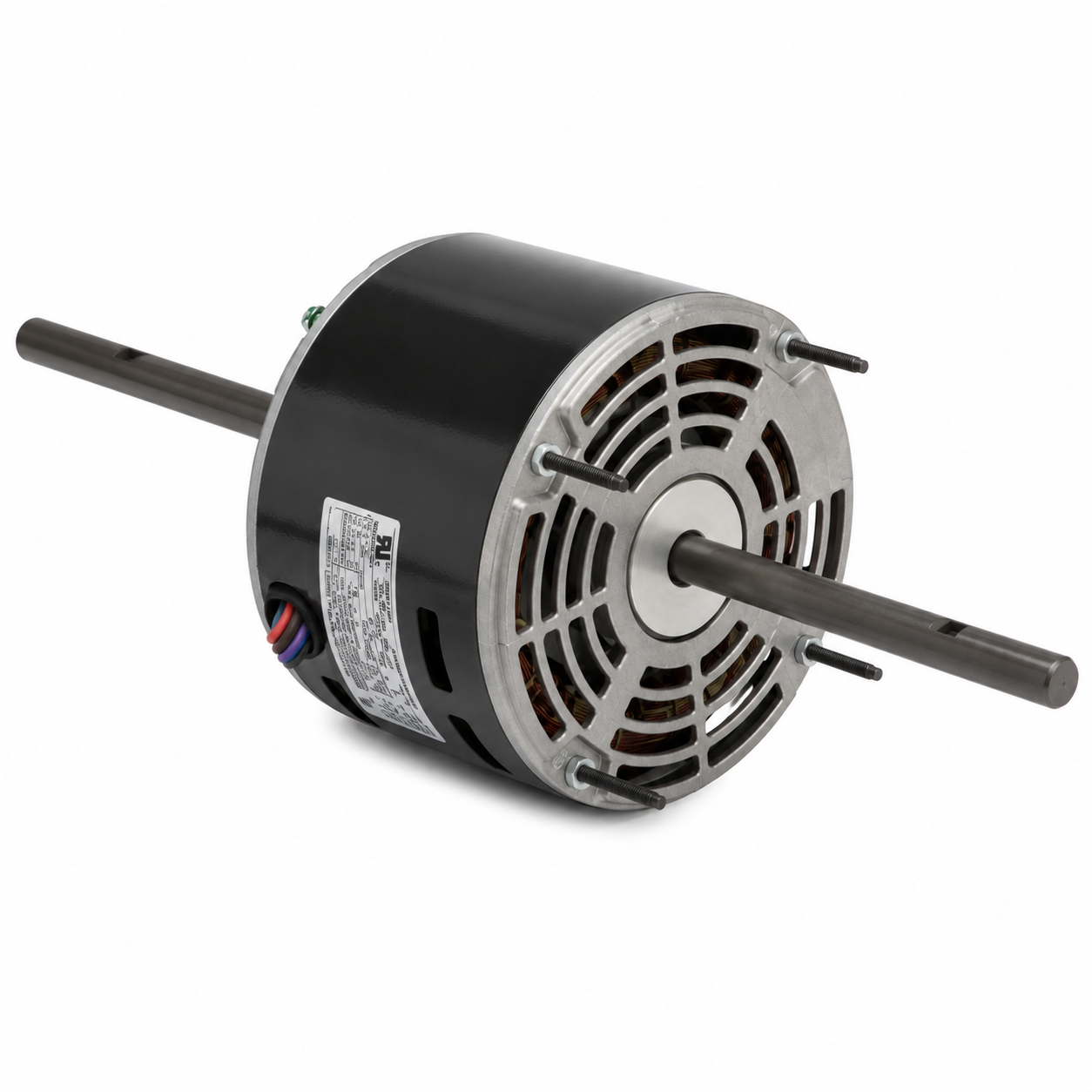

US Motors Fan Coil Motors (HVAC/R) NAL1006 - 1/8 HP - 115 V - 1075 RPM - Single phase
US Motors Fan Coil Motors (HVAC/R) NAL1006 - 1/8 HP - 115 V - 1075 RPM - Single phase

US Motors Fan Coil Motors (HVAC/R) NAL1006 - 1/8 HP - 115 V - 1075 RPM - Single phase

US Motors
$199.00
$199.00
Quantity must be 1 or more
  • Horsepower : 1/8
  • Amps : 2.00
  • Frequency : 60/50 Hz
  • Length : 3-3//4"
  • "C" Dim. : 20"
  • Enclosure : Open Air Over
  • Shaft Dim. : 8-1/4" x 1/2" x 8"
  • Type : Permanent Split Capacitor
  • Speeds : 3
  • Diameter : 5-5/8"
  • Bearings : Sleeve
  • Rotation : CCWLE
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 60°C
  • Capacitor Rating : 5MFD/370VAC
  • Feature(s) : Class 'A' Insulation, No Base
  • Weight (lbs.) : 11

  • Reference : A.O. Smith 323P002 F48SD6L13 F48SD6L3 F48SD6L5 F48SD6L5B1 F48SD6L6 F48SD6L9 F48SD6MA23 F48SD6MA8 F48SE6MA28 F48SF6MA36, Carrier P257X056, Century RAL1006, Emerson K55HXRLP2221, Fasco D751, Franklin Bluffton 8745810211 8745810470 8745810471 8745810570 AY66200A, General Electric 5KCP39CG9413 5KCP39CG9561 5KCP39DG4936 3641, Marathon X056




Back to 1 Phase
