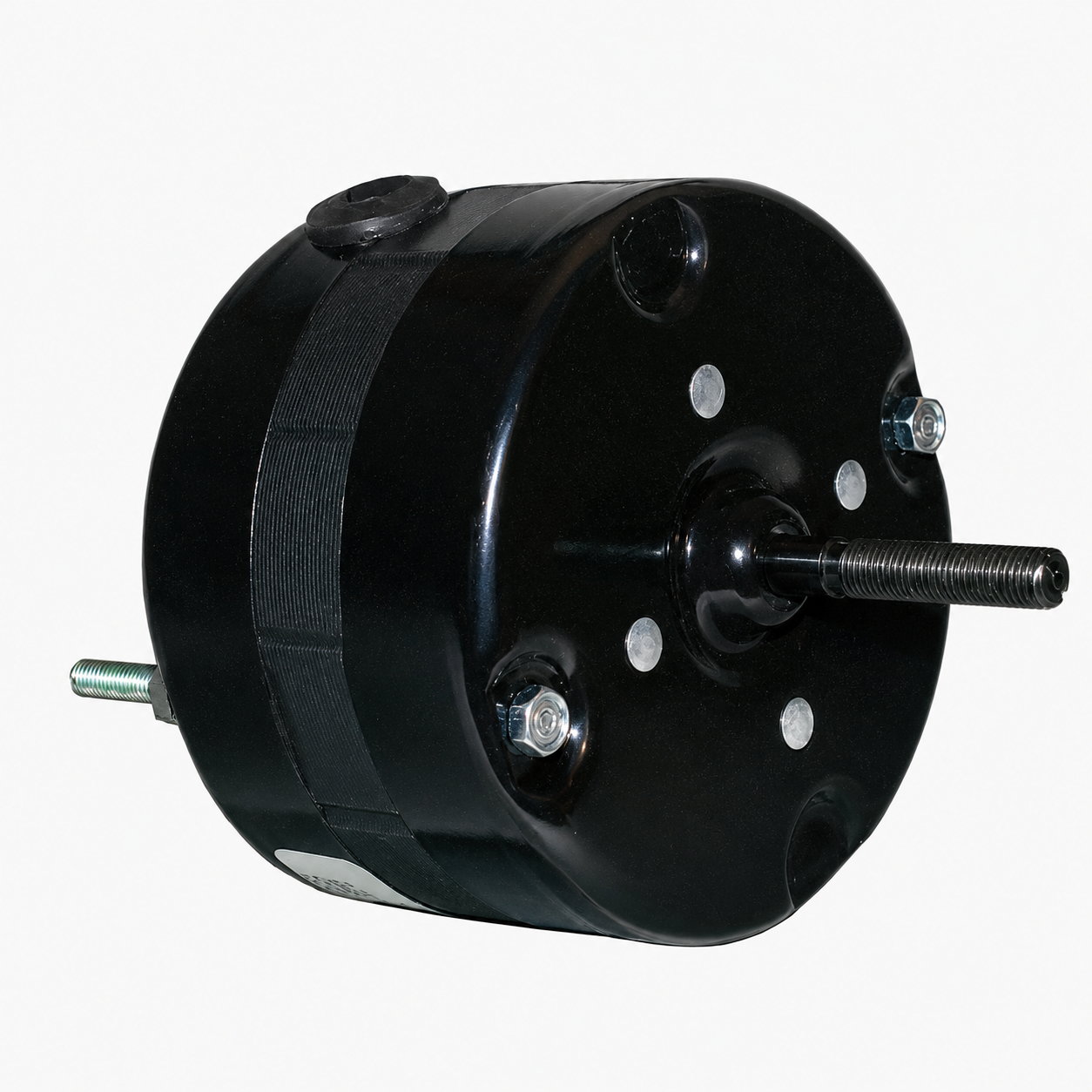

Rotom OEM Replacement Motors (HVAC/R) 06-R203 - 1/70 HP - 115 V - 1600 RPM - Single phase
Rotom OEM Replacement Motors (HVAC/R) 06-R203 - 1/70 HP - 115 V - 1600 RPM - Single phase

Rotom OEM Replacement Motors (HVAC/R) 06-R203 - 1/70 HP - 115 V - 1600 RPM - Single phase

Rotom
$79.00
$79.00
Quantity must be 1 or more
  • Horsepower :1/70
  • Voltage :115
  • Amps :0.90
  • RPM :1600
  • Frequency :60 Hz
  • Length :2-1/8”
  • Enclosure :Totally Enclosed Construction
  • Shaft Dim. :1/4" x 1-1/2”
  • Type :Shaded Pole
  • Diameter :3.3”
  • Bearings :Sleeve
  • Rotation :CWSE
  • Protector :Thermally Protected
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :40°C
  • Feature(s) :8” Cord & Plug
  • Weight (lbs.) :2
  • Reference : 07779800000149, 1V2430, 251662, 2818410517, 2818410557, 2818410560, 2818410563, 2818410564, 2818410565, 2818410567, 2818410570, 2818410571, 2818410818, 2818440506, 2818440519, 2818440806, 2818440813, 2818440826, 2818440828, 2818440829, 2818440832, 2828410521, 2868405001, 2868405002, 2868405003, 2868405006, 2868405007, 2868405008, 2868405013, 2868405017, 2868405073, 2868405074, 2868405075, 2868405118, 2868405119, 2868405135, 2868405146, 2868405162, 2868407052, 2868407157, 2868505093, 59711, 71730844, 76066, 76203, 8213215071, 8213217690, 8213217830, 8213217950, AA2C5552K, AK2H174A, AK41201A, AL41294A, HVA516, SM203, SM204, SM205, SS203
    Use with Canadian Armature, Leigh, Miami Carey, Nutone, Replace Leigh 59711
