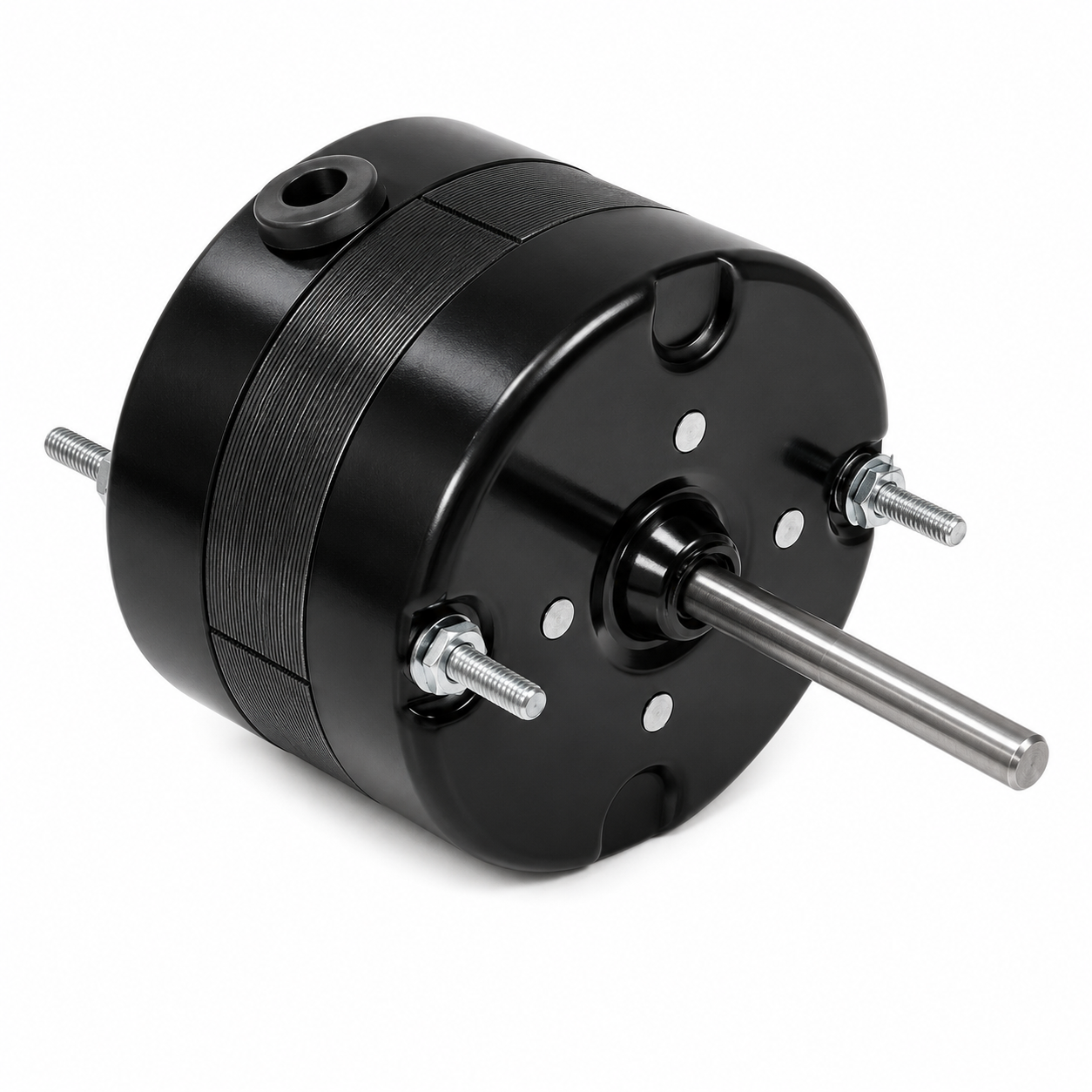

Rotom OEM Replacement Motors (HVAC/R) 06-R506 - 1/160 HP - 115 V - 1400 RPM - Single phase
Rotom OEM Replacement Motors (HVAC/R) 06-R506 - 1/160 HP - 115 V - 1400 RPM - Single phase

Rotom OEM Replacement Motors (HVAC/R) 06-R506 - 1/160 HP - 115 V - 1400 RPM - Single phase

Rotom
$88.00
$88.00
Quantity must be 1 or more
  • Horsepower :1/160
  • Voltage :115
  • Amps :0.43
  • RPM :1400
  • Frequency :60 Hz
  • Length :1-7/8”
  • Enclosure :Totally Enclosed
  • Shaft Dim. :1/4” x 2.00”
  • Type :Shaded Pole
  • Diameter :3.3”
  • Bearings :Sleeve
  • Rotation :CCWSE
  • Protector :Thermally Protected
  • Ambient Temp. :40°C
  • Feature(s) :9” Cord & Plug, Grooved Shaft
  • Weight (lbs.) :5

  • Reference : 07779800000336, 108200, 1141020000, 270100001, 2818410523, 2818410822, 2818440561, 2862403001, 2868403001, 2868403004, 2868403019, 2868403024, 2868403025, 2868403027, 2868403032, 2868403033, 2868403037, 2868403042, 2868403043, 2868403053, 2868405031, 2868505008, 2N11501, 2N11701, 2N7701, 2N7703, 2N8701, 2N9101, 71730925, 80725, 80725-000, 8213015003, D1181, HVA501, MODEL682C, R506, SB80, SM202, SS506, AA2A6253
