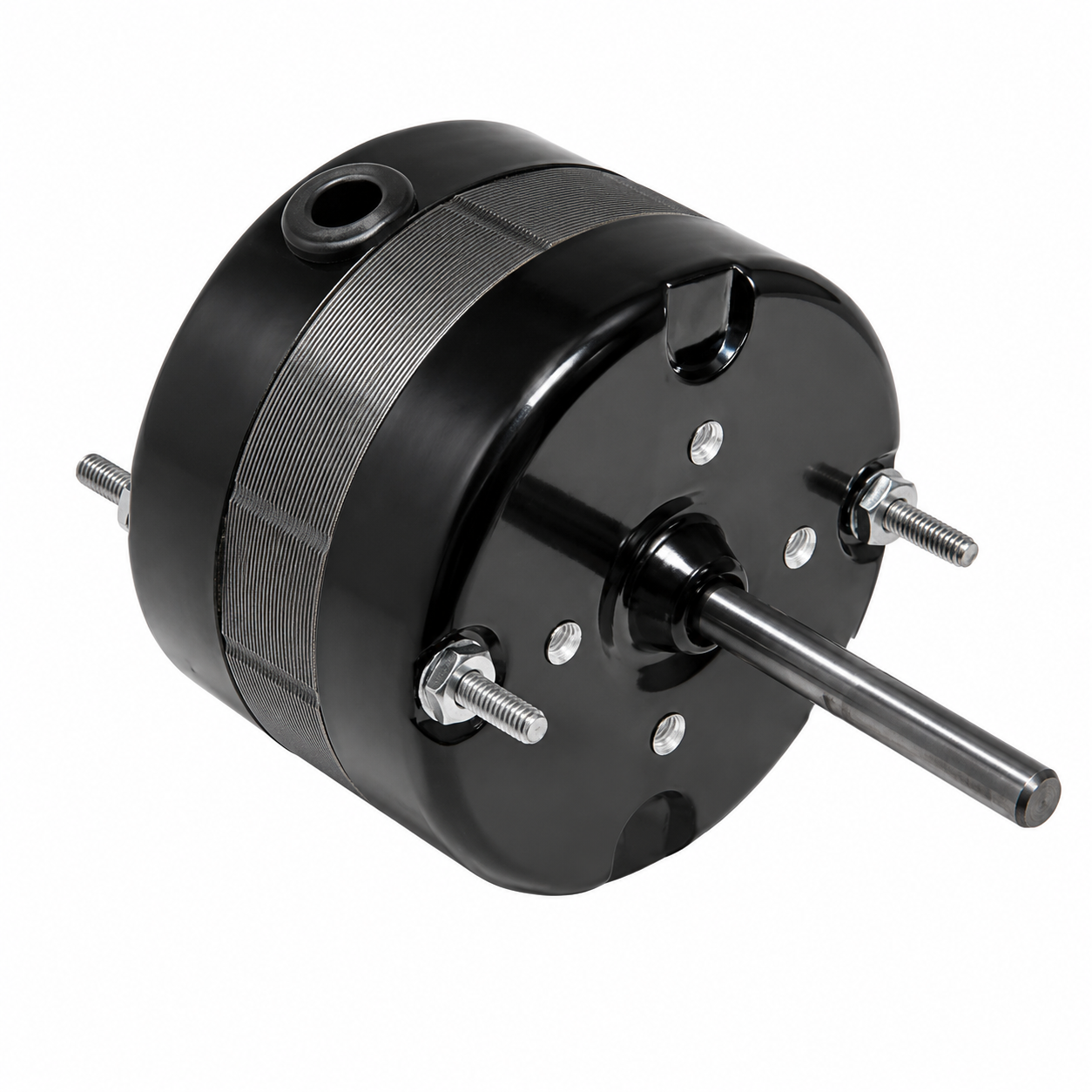

Emotortek SS207 (R207) shaded pole motor designed for small fan and ventilation applications. Built for reliable performance in low power systems requiring 115V operation.
This motor is ideal for replacing worn or failed fan motors requiring compact size and consis
- Model : SS207
- Horsepower : 1/80 HP
- Voltage : 115V
- RPM : 1600
- Amps : 0.80
- Frequency : 60 Hz
- Length : 2.00”
- Enclosure : Totally Enclosed
- Shaft Dim. : 1/4” x 1-9/16”
- Type : Shaded Pole
- Diameter : 3.3”
- Bearings : Sleeve
- Rotation : CCWSE
- Protector : Thermally Protected
- Feature(s) : 8” Cord & Plug
- Weight (lbs.) : 2
-
Reference : Electrohome 2818-410-552, 2818-410-558, 2818-410-562, 2818-410-572, 2818-410-816, 2818-420-503, 2868-405-004, 2868-405-010, 2868-405-012, 2868-405-014, 2868-405-025, 2868-405-027, 2868-405-031, 2868-405-048, 2868-405-057, 2868-405-066, 2868-405-076, 2868-405-079, 2868-405-093, 2868-405-105, 2868-405-107, 2868-405-111, 2868-405-130, 2868-405-166, 2868-405-196, 2868-405-220, 2868-407-032, 2868-407-043, 2868-513-106, 2N6001 2N6601, SM207, Fasco 7173-1245 7173-1999, Franklin 76202 76207 8213210630 8213210680 8213215218 8213217700 8213217840 8253210380 8253210420 AK41131A AK41132A AK41190A F3468, General Electric 5KSM84DFK121, MacMillan 8213215059 8213215072 8213215206 8213215218, Broan-Nutone 80100 80230 30080111 80100-000, Universal AA2C5657 AA2C6134 JA2B097 JA2B105 JA2C307 JA2C311 JA2C553 8213215206 8213215218 2868405166
