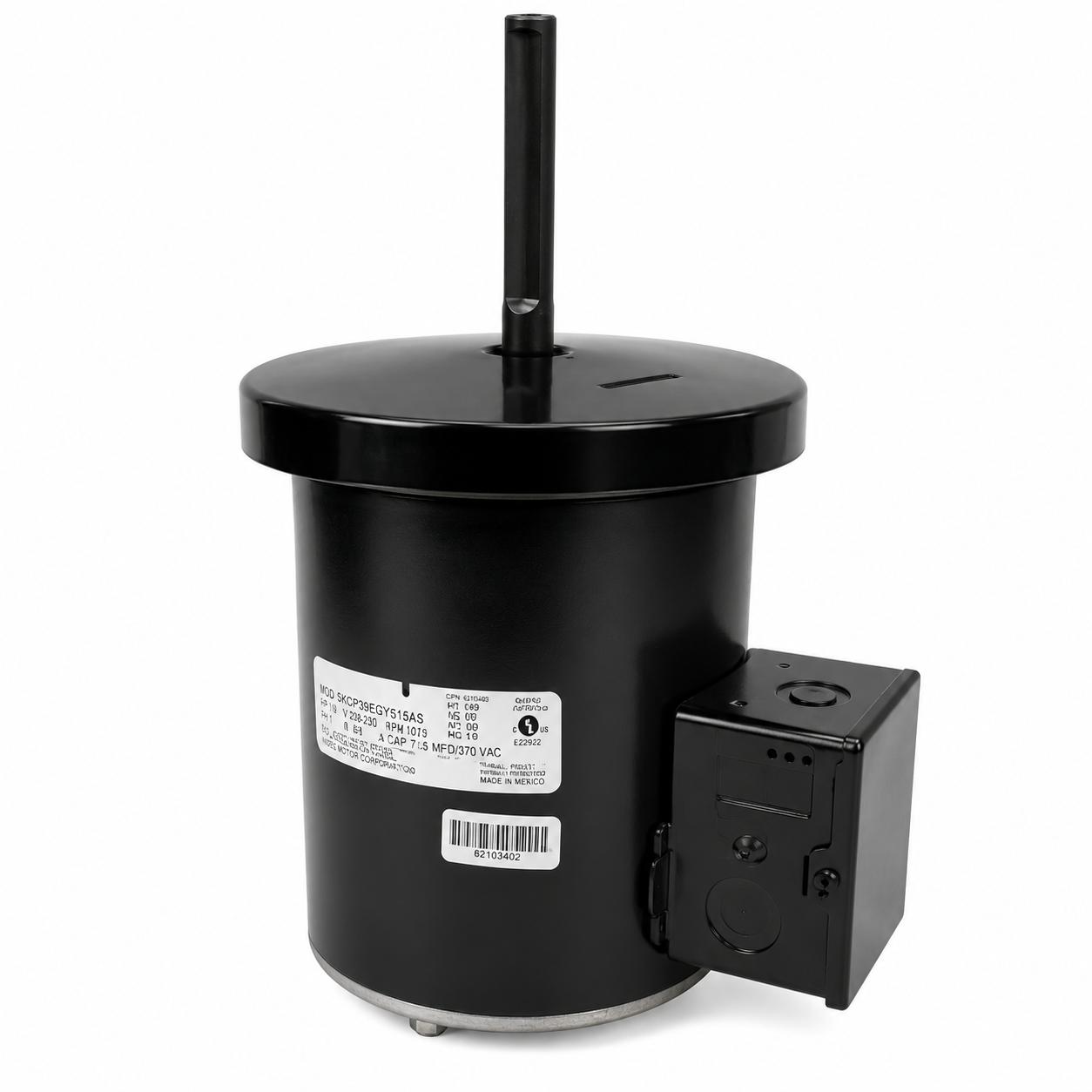

Emotortek Condenser Fan Motors (HVAC/R) SS9193 - 1 HP - 575 V - 1075 RPM - Single phase
Emotortek Condenser Fan Motors (HVAC/R) SS9193 - 1 HP - 575 V - 1075 RPM - Single phase

Emotortek Condenser Fan Motors (HVAC/R) SS9193 - 1 HP - 575 V - 1075 RPM - Single phase

Emotortek
$600.00
$600.00
Quantity must be 1 or more
  • Horsepower : 1
  • Amps : 2.20
  • Frequency : 60 Hz
  • Length : 7-1/16"
  • "C" Dim. : 13-1/32"
  • Enclosure : Open Air Over
  • Shaft Dim. : 5/8" x 5-31/32"
  • Type : Permanent Split Capacitor
  • Speeds : 1
  • Diameter : 5-5/8"
  • Bearings : Ball
  • Rotation : Reversible
  • Protector : Automatic
  • Service Factor : 1.00
  • Ambient Temp. : 60°C
  • Capacitor Rating : 25MFD-370VAC (included)
  • Feature(s) : Canopy Shield Included, No Base, Class 'B' Insulation, C-Box Included
  • Weight (lbs.) : 27
