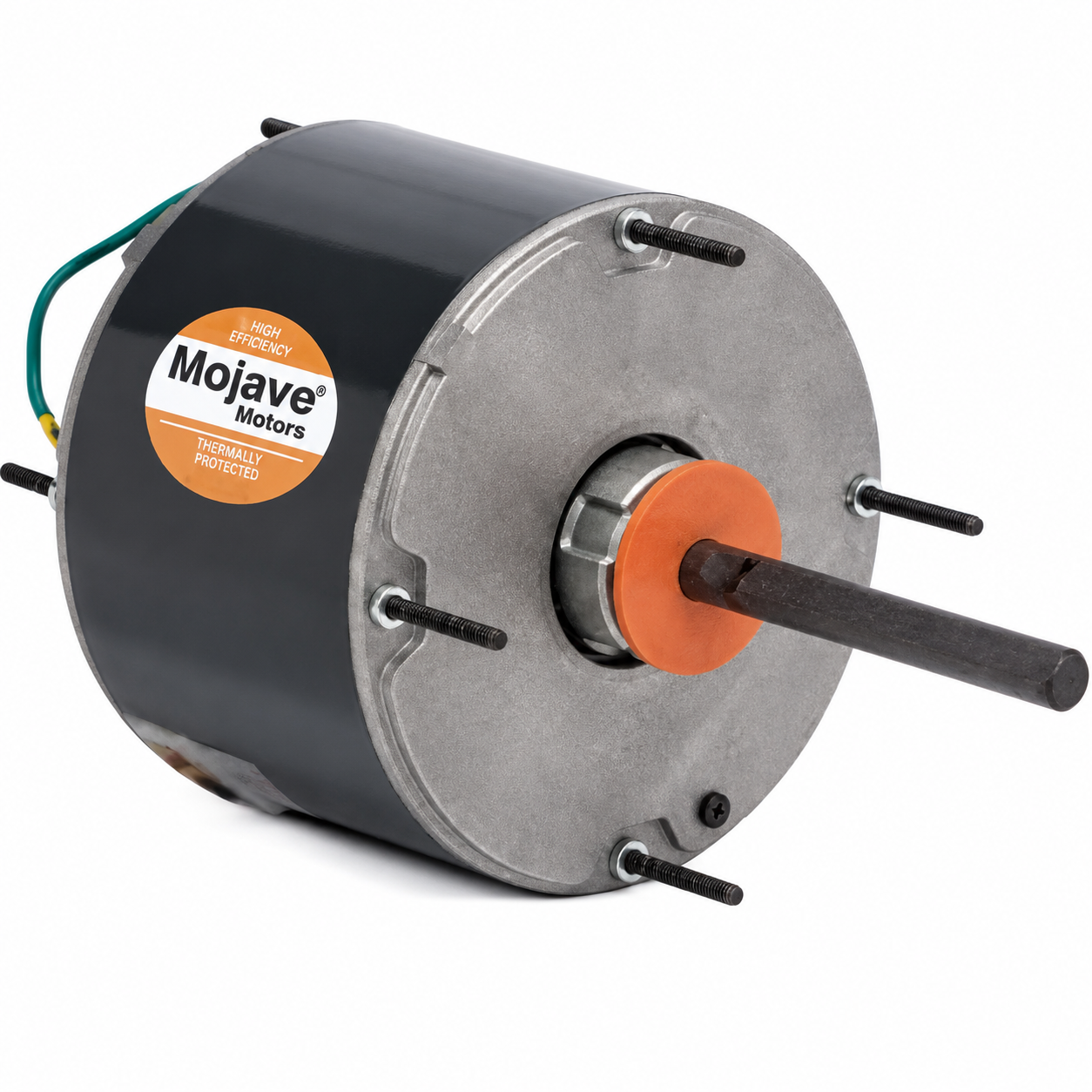

US Motors Condenser Fan Motors (HVAC/R) 1874H - 1/4 HP - 208/230 V - 825 RPM - Single phase
US Motors Condenser Fan Motors (HVAC/R) 1874H - 1/4 HP - 208/230 V - 825 RPM - Single phase

US Motors Condenser Fan Motors (HVAC/R) 1874H - 1/4 HP - 208/230 V - 825 RPM - Single phase

US Motors
Sold out
$319.00
Quantity must be 1 or more
  • Horsepower :1/4
  • Voltage :208/230
  • Amps :2.10
  • RPM :825
  • Frequency :60 Hz
  • Length :4-13/32"
  • Enclosure :Totally Enclosed Air Over
  • Shaft Dim. :1/2" x 6.00"
  • Type :Permanent Split Capacitor
  • Speeds :1
  • Diameter :5-5/8"
  • Frame :48
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :70°C
  • Weight (lbs.) :13
  • Reference : 1874H, U.S. Motor, Replaces SS739B, E1026 Emerson K55HXJPM-9251, 1874H U.S Motors, K055CLK1466012B
