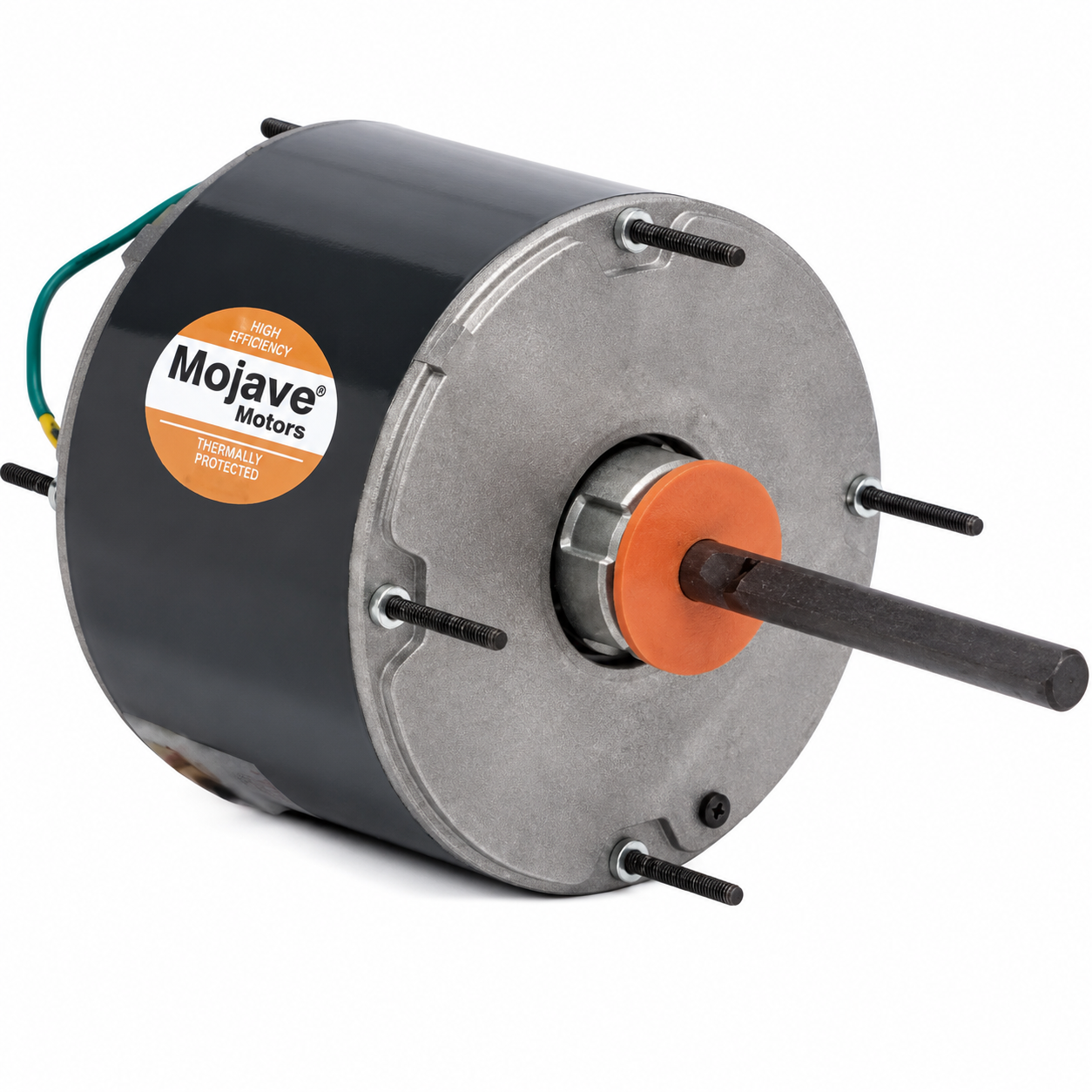

US Motors Condenser Fan Motors (HVAC/R) 3737H - 1/3 HP - 460 V - 1075 RPM - Single phase
US Motors Condenser Fan Motors (HVAC/R) 3737H - 1/3 HP - 460 V - 1075 RPM - Single phase

US Motors Condenser Fan Motors (HVAC/R) 3737H - 1/3 HP - 460 V - 1075 RPM - Single phase

US Motors
$326.00
$326.00
Quantity must be 1 or more
  • Horsepower :1/3
  • Voltage :460
  • Amps :1.30
  • RPM :1075
  • Frequency :60 Hz
  • Length :5-5/16”
  • Enclosure :Totally Enclosed Air Over
  • Shaft Dim. :1/2” x 6.00”
  • Type :Permanent Split Capacitor
  • Speeds :1
  • Diameter :5-5/8"
  • Frame :48Y
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :70°C
  • Capacitor Rating :7.5MFD-370VAC
  • Feature(s) :Class 'F' Insulation, Thru-Bolts
  • Weight (lbs.) :18
