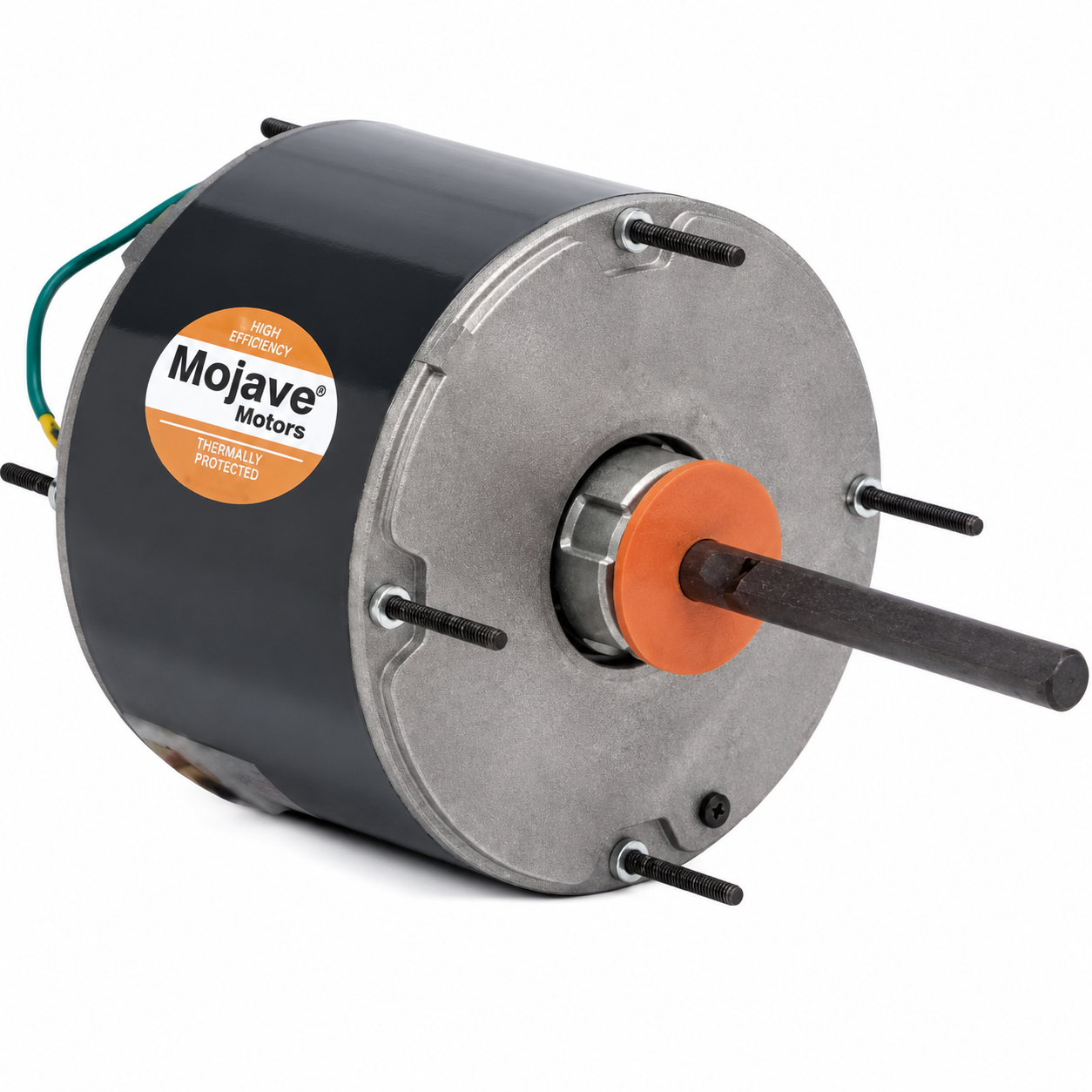

US Motors Condenser Fan Motors (HVAC/R) 3742H - 3/4 HP - 460 V - 1075 RPM - Single phase
US Motors Condenser Fan Motors (HVAC/R) 3742H - 3/4 HP - 460 V - 1075 RPM - Single phase

US Motors Condenser Fan Motors (HVAC/R) 3742H - 3/4 HP - 460 V - 1075 RPM - Single phase

US Motors
$359.00
$359.00
Quantity must be 1 or more
  • Horsepower :3/4
  • Voltage :460
  • Amps :2.20
  • RPM :1075
  • Frequency :60 Hz
  • Length :6-5/8”
  • Enclosure :Totally Enclosed Air Over
  • Shaft Dim. :1/2” x 6.00”
  • Type :Permanent Split Capacitor
  • Speeds :1
  • Diameter :5-5/8"
  • Frame :48
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :70°C
  • Weight (lbs.) :18
  • Reference : A.O. Smith F48A06C71 F48M13A50 F48Z18A01, Emerson K55HXWGE0946, General Electric 5KCP39NGN863
