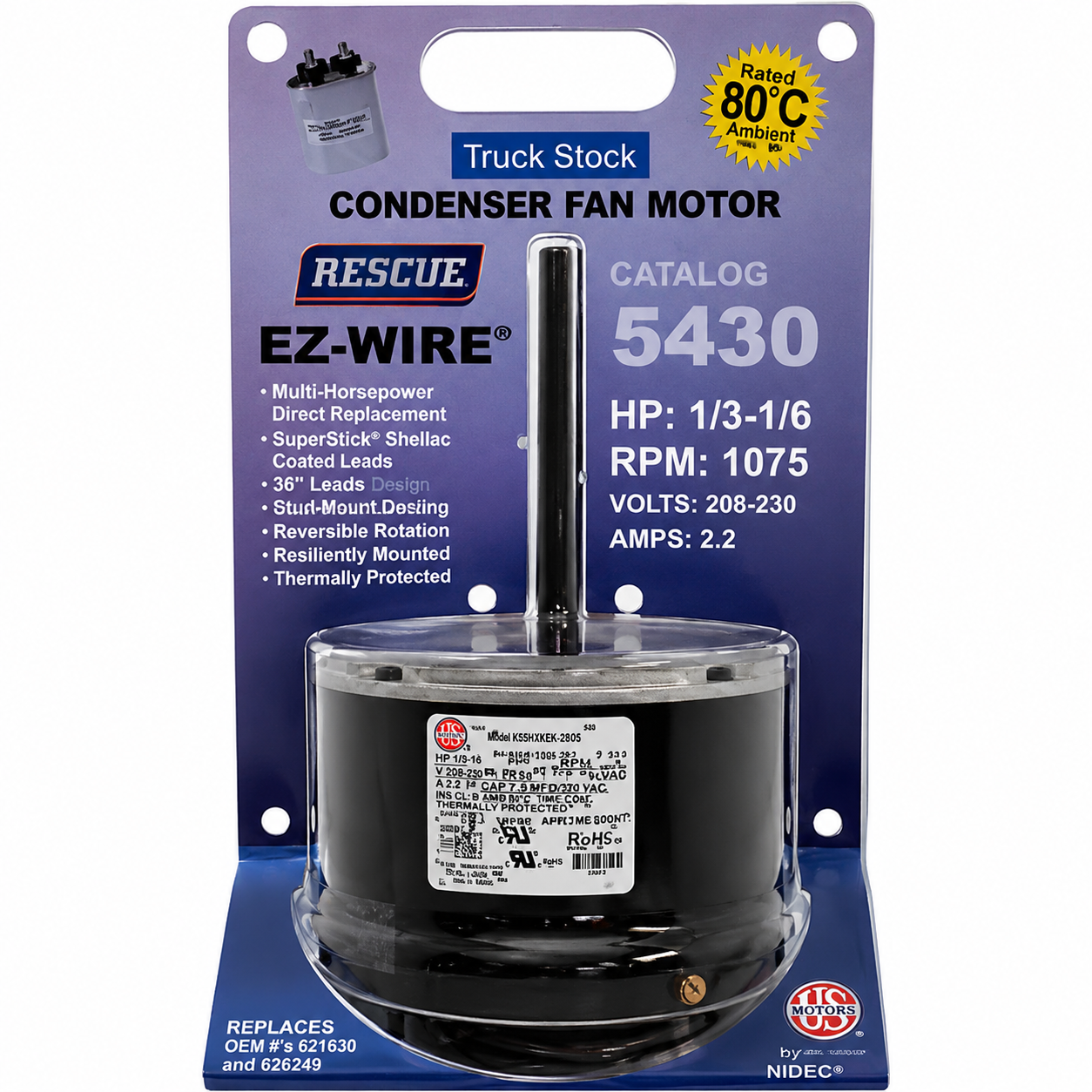

US Motors Condenser Fan Motors (HVAC/R) 5430 - 1/3 HP - 208/230 V - 1075 RPM - Single phase
US Motors Condenser Fan Motors (HVAC/R) 5430 - 1/3 HP - 208/230 V - 1075 RPM - Single phase

US Motors Condenser Fan Motors (HVAC/R) 5430 - 1/3 HP - 208/230 V - 1075 RPM - Single phase

US Motors
$178.00
$178.00
Quantity must be 1 or more
  • Horsepower :1/3-1/6
  • Voltage :208-230
  • Amps :2.20
  • RPM :1075
  • Frequency :60 Hz
  • Length :4.312"
  • "C" Dim. :9.312"
  • Enclosure :Totally Enclosed Air Over
  • Shaft Dim. :1/2 X 5.0"
  • Type :Permanent Split Capacitor
  • Speeds :1
  • Diameter :5-5/8"
  • Frame :48
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.0
  • Phase :1
  • Ambient Temp. :80°C
  • Capacitor Rating :7.5/440 Included
  • Feature(s) :Rotor Corrosion Protection, 48" Leads
  • Weight (lbs.) :10
  • Reference : Century ORM5458, Emerson K55HXLMJ2478
