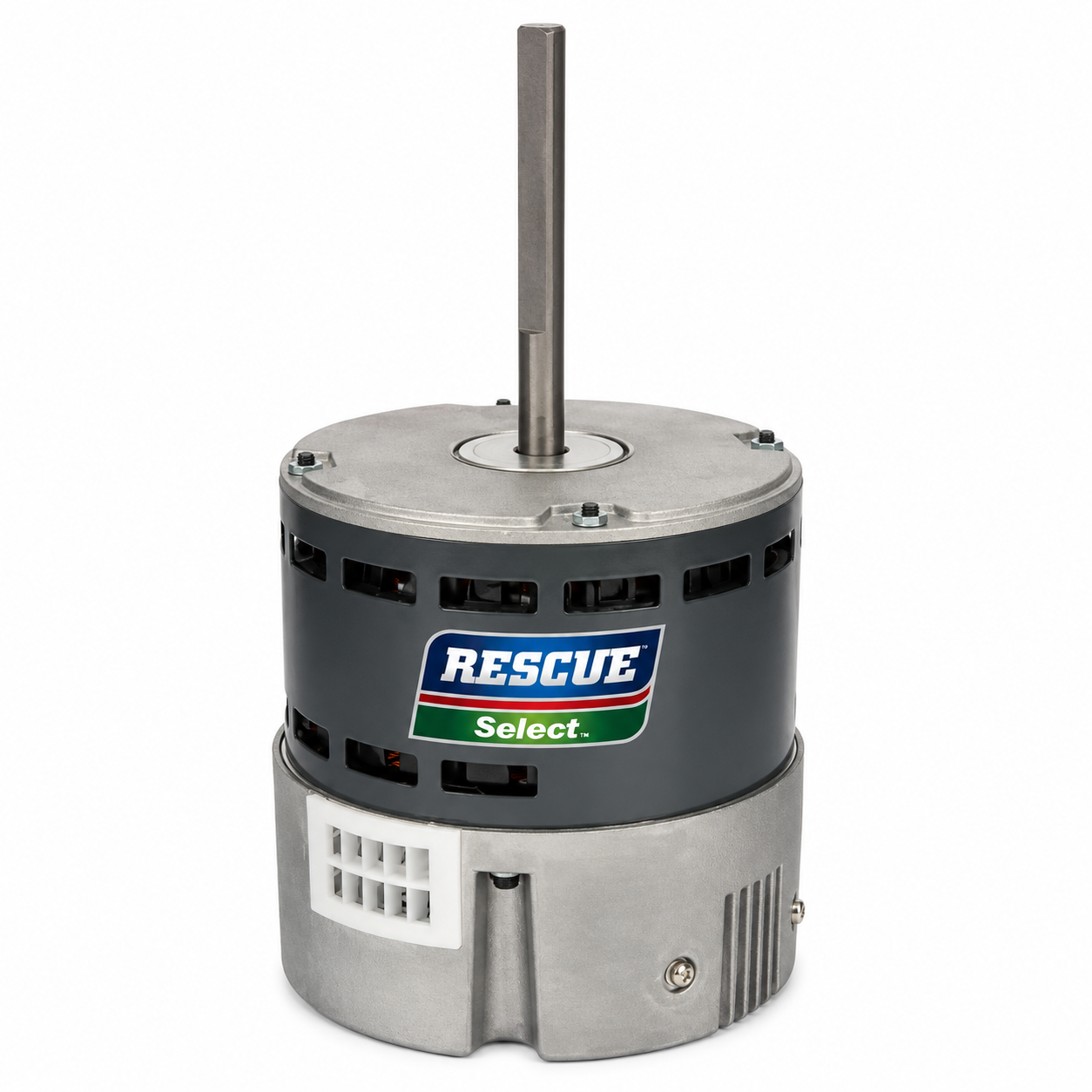

US Motors ECM Motors (HVAC/R) 5861 - 3/4 HP - 115/208-230 V - 1075 RPM - Single phase
US Motors ECM Motors (HVAC/R) 5861 - 3/4 HP - 115/208-230 V - 1075 RPM - Single phase

US Motors ECM Motors (HVAC/R) 5861 - 3/4 HP - 115/208-230 V - 1075 RPM - Single phase

US Motors
$699.00
$699.00
Quantity must be 1 or more
  • Horsepower :3/4
  • Voltage :115/208-230
  • Amps :9.3/5.9-5.5
  • RPM :1075
  • Frequency :50/60 HZ
  • Enclosure :Open Air Over
  • Shaft Dim. :1/2" X 5"
  • Type :ECM
  • Frame :48
  • Efficiency :Up to 82%
  • Bearings :Ball
  • Rotation :Rev / Auto
  • Phase :1
  • Feature(s) :Built in 6000V surge protection, EZ Interface included (EZI), 16-Pin variable speed replacement motor
  • Weight (lbs.) :14
  • Reference : CM 2.0 / 2.3 EON, Gentek 6507V + 5K010, Emerson M55PWTZR0102, General Electric 5SDA39KLQ0002 5SDA39RLV5002 5SME39SL0784
