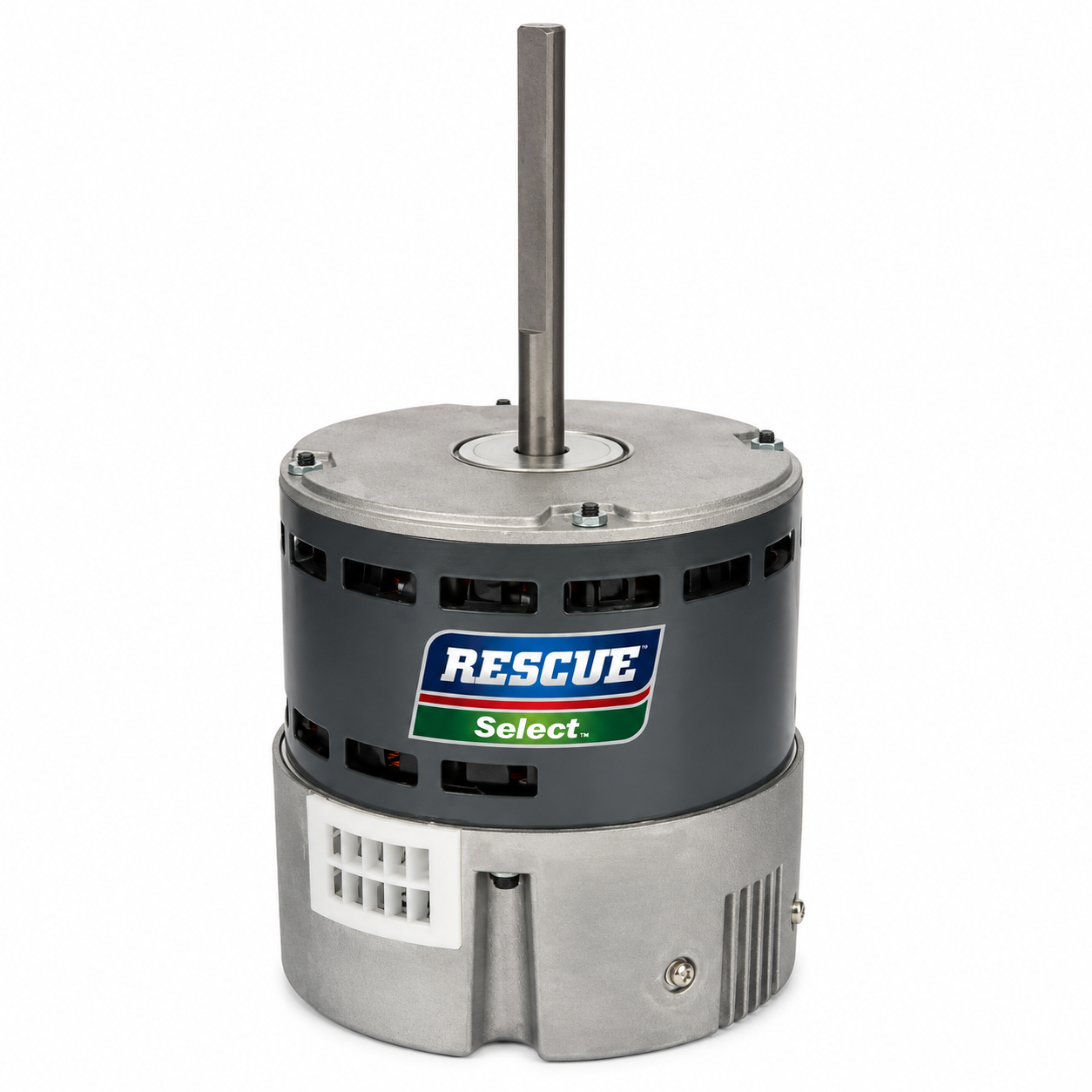

US Motors ECM Motors (HVAC/R) 5863 - 1/3 HP - 115/208-230 V - 1075 RPM - Single phase
US Motors ECM Motors (HVAC/R) 5863 - 1/3 HP - 115/208-230 V - 1075 RPM - Single phase

US Motors ECM Motors (HVAC/R) 5863 - 1/3 HP - 115/208-230 V - 1075 RPM - Single phase

US Motors
Sold out
$595.00
Quantity must be 1 or more
  • Horsepower :1/3
  • Voltage :115/208-230
  • Amps :4.5/2.9-2.7
  • RPM :1075
  • Frequency :50/60 HZ
  • Enclosure :Open Air Over
  • Shaft Dim. :1/2" X 5"
  • Type :ECM
  • Frame :48
  • Efficiency :Up to 82%
  • Bearings :Ball
  • Rotation :Rev / Auto
  • Phase :1
  • Feature(s) :16-Pin variable speed replacement motor, EZ Interface included (EZI), Built in 6000V surge protection
  • Weight (lbs.) :12
  • References : Emerson M55PWTZT0104, General Electric 5SME39LL0394, Genteq 6503V + 5K010
