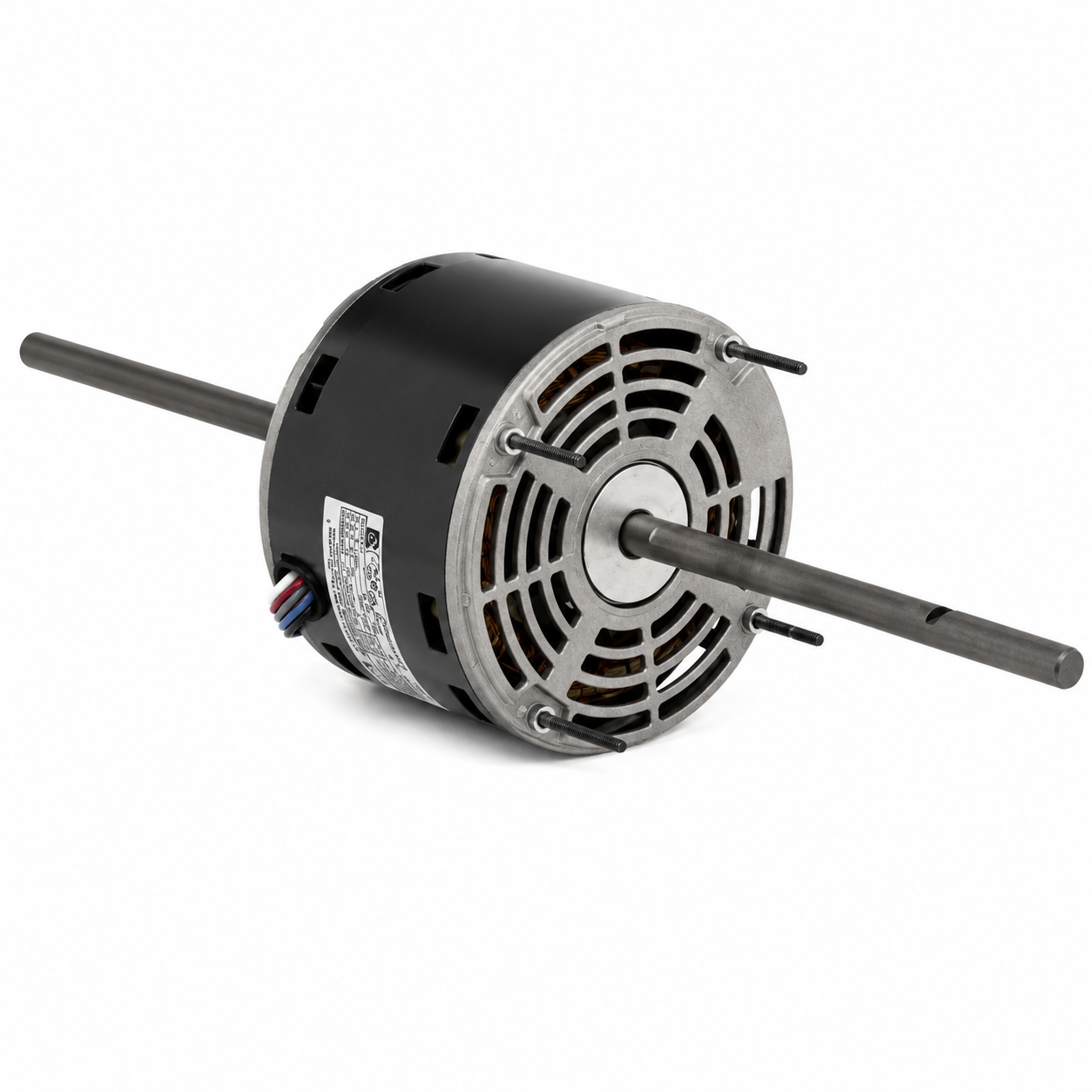

US Motors Fan & Blower Motors (HVAC/R) 1894 - 3/4 HP - 208/230 V - 1075 RPM - Single phase
US Motors Fan & Blower Motors (HVAC/R) 1894 - 3/4 HP - 208/230 V - 1075 RPM - Single phase

US Motors Fan & Blower Motors (HVAC/R) 1894 - 3/4 HP - 208/230 V - 1075 RPM - Single phase

US Motors
$502.00
$502.00
Quantity must be 1 or more
  • Horsepower :3/4
  • Voltage :208-230
  • Amps :5.00
  • RPM :1075
  • Frequency :60 Hz
  • Length :5-9/16"
  • "C" Dim. :20-5/8"
  • Enclosure :Open
  • Shaft Dim. :6-1/4" x 1/2" x 6-1/4"
  • Type :Permanent Split Capacitor
  • Speeds :3
  • Diameter :5-5/8"
  • Frame :48Y
  • Bearings :Self-Aligning Bearing
  • Rotation :CCWLE
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :40°C
  • Feature(s) :Multi-Speed, Hub or Stud Mount, Without Capacitor & Mounting Kit, Capacitor Included, No Base, Class 'B' Insulation
  • Weight (lbs.) :18
