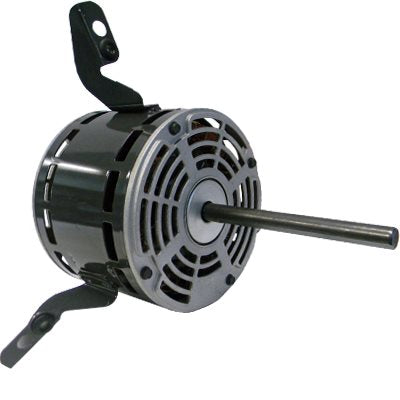

US Motors Fan & Blower Motors (HVAC/R) 3786 - 1/3 HP - 208/230 V - 1075 RPM - Single phase
US Motors Fan & Blower Motors (HVAC/R) 3786 - 1/3 HP - 208/230 V - 1075 RPM - Single phase

US Motors Fan & Blower Motors (HVAC/R) 3786 - 1/3 HP - 208/230 V - 1075 RPM - Single phase

US Motors
$272.00
$272.00
Quantity must be 1 or more
  • Horsepower :1/3
  • Voltage :208-230
  • Amps :2.5
  • RPM :1075
  • Frequency :60 Hz
  • "C" Dim. :9.8"
  • Enclosure :Open Air Over
  • Shaft Dim. :1/2" x 5"
  • Type :Permanent Split Capacitor
  • Speeds :3
  • Frame :48
  • Bearings :Sleeve
  • Rotation :Reversible
  • Protector :Thermally Protected
  • Service Factor :1
  • Phase :1
  • Ambient Temp. :40°C
  • Weight (lbs.) :14
  • Reference : A.O.Smith Century 973 FM1036, Dayton 4M452, Fasco 7126-3220, General Electric 3786, General Electric 5KCP39GGF654 5KCP39JGD958 5KCP39JGP733 5KCP39MGM650, York 024-20254-001
