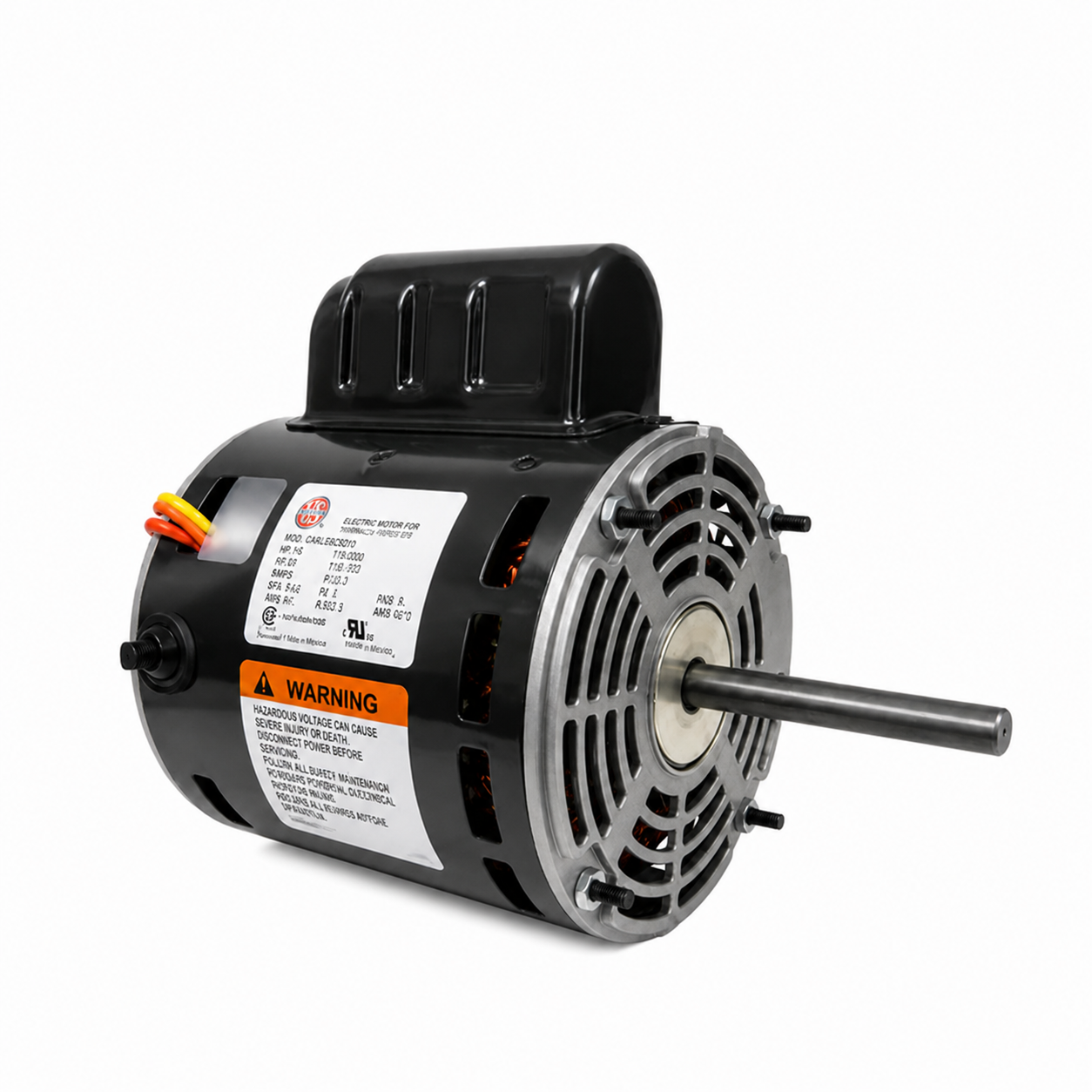

US Motors Fan & Blower Motors (HVAC/R) 4748 - 1/2 HP - 115/230 V - 1650 RPM - Single phase
US Motors Fan & Blower Motors (HVAC/R) 4748 - 1/2 HP - 115/230 V - 1650 RPM - Single phase

US Motors Fan & Blower Motors (HVAC/R) 4748 - 1/2 HP - 115/230 V - 1650 RPM - Single phase

US Motors
$433.00
$433.00
Quantity must be 1 or more

• HP: 1/2
• Voltage: 115 / 230
• RPM: 1650
• Current (Amp): 8.00 / 4.00
• Phase: 1
• Rotation: Reversible
• Frame: 48YZ
• Enclosure: Open Air Over
• Speeds: 1
• Protector: Automatic
• Ambient Temp: 40°C
• CFM: N/A
• Service Factor: 1.00
• Shaft Dimensions: 0.625 in X 3.25 in
• Frequency: 60Hz
• Diameter: 5.5 in
• Frame Length: 9.81 in
• Bearings: Ball
• Capacitor Rating: 20-370
• Features: class b insulation, extended bolts shaft end, 16" leads, 5/8" diameter shaft with flat, capacitor required: 20 mfd-370 volts (supplied with motor)

• Reference : K55HXEPL7463
