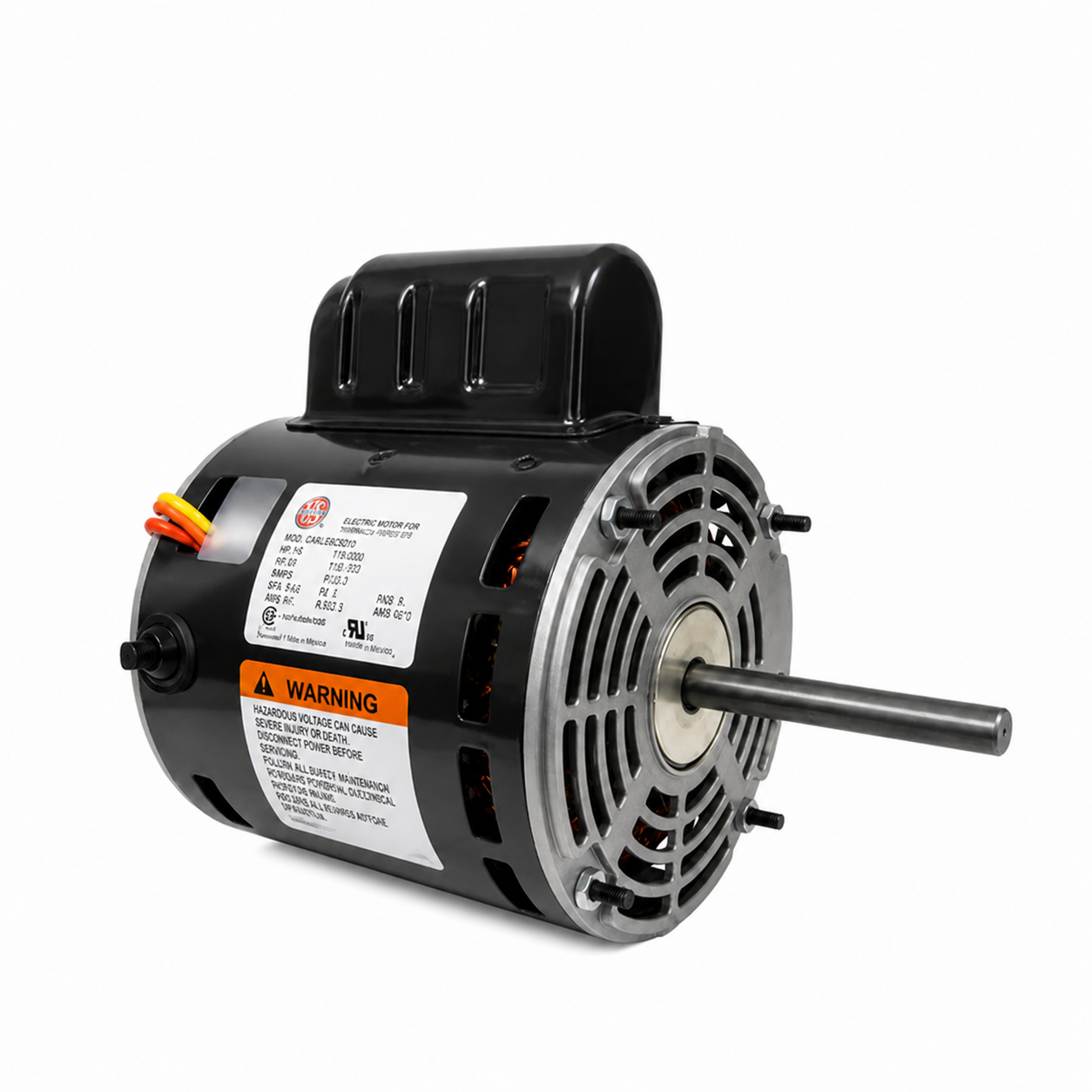

US Motors Fan & Blower Motors (HVAC/R) 4749 - 1/2 HP - 115/230 V - 1100 RPM - Single phase
US Motors Fan & Blower Motors (HVAC/R) 4749 - 1/2 HP - 115/230 V - 1100 RPM - Single phase

US Motors Fan & Blower Motors (HVAC/R) 4749 - 1/2 HP - 115/230 V - 1100 RPM - Single phase

US Motors
$386.00
$386.00
Quantity must be 1 or more

• HP: 1/2
• Voltage: 115 / 230
• RPM: 1100
• Current (Amp): 6.20 / 3.10
• Phase: 1
• Rotation: Clockwise Lead End
• Frame: 48YZ
• Enclosure: Open Air Over
• Speeds: 1
• Protector: Automatic
• Ambient Temp: 40°C
• Service Factor: 1.00
• Shaft Dimensions: 0.625 in X 3.25 in
• Frequency: 60Hz
• Diameter: 5.5 in
• Frame Length: 9.81 in
• Bearings: Ball
• Capacitor Rating: 10-370
• Features: class b insulation, extended bolts shaft end, 16" leads, 5/8" diameter shaft with flat, capacitor required: 10 mfd-370 volts (supplied with motor)
• Reference : Emerson K55HXEAE7161
