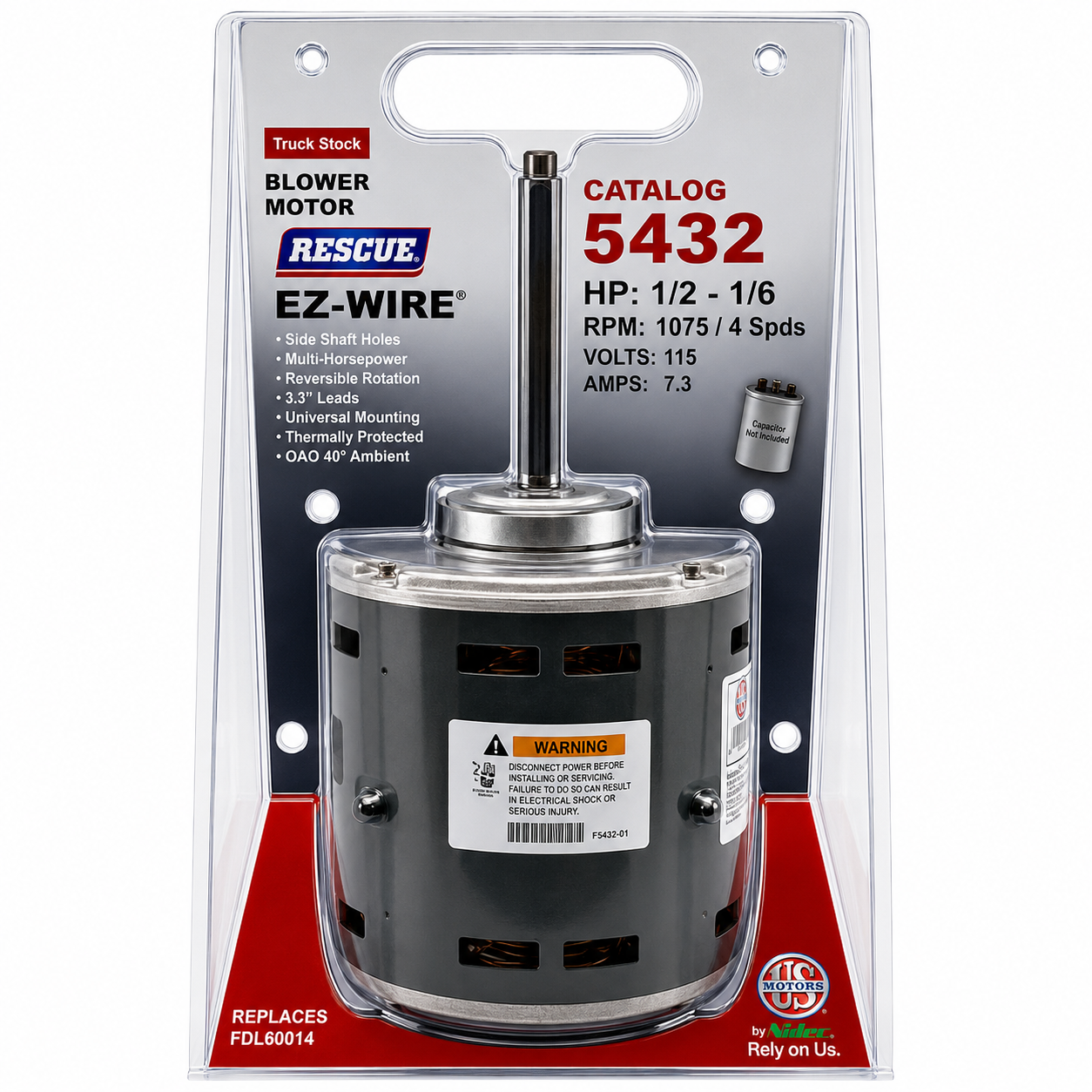

US Motors Fan & Blower Motors (HVAC/R) 5432 - 1/2 HP - 115 V - 1075 RPM - Single phase
US Motors Fan & Blower Motors (HVAC/R) 5432 - 1/2 HP - 115 V - 1075 RPM - Single phase

US Motors Fan & Blower Motors (HVAC/R) 5432 - 1/2 HP - 115 V - 1075 RPM - Single phase

US Motors
$189.00
$189.00
Quantity must be 1 or more
  • Horsepower :1/2 - 1/6
  • Voltage :115
  • Amps :7.3
  • RPM :1075/4 SPD
  • Frequency :60 Hz
  • Length :5.312
  • "C" Dim. :10.86
  • Enclosure :Open Air Over
  • Shaft Dim. :1/2 X 5.0"
  • Type :Permanent Split Capacitor
  • Speeds :4
  • Diameter :5-5/8"
  • Frame :48
  • Bearings :Self-Aligning Bearings
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.0
  • Ambient Temp. :40°C
  • Capacitor Rating :10/7.5 MFD-370V
  • Feature(s) :Side shell holes, Multi-Horsepower, Reversible Rotation, 36"Leads, Universal Mounting, Thermally protected
  • Weight (lbs.) :16.04
  • Reference : A.O. Smith F48AD79A01, A.O. Smith Stock No. ORM1056, Century FD6001A, Emerson K55HXKPP3345 K55HXWLL1130, General Electric 3463 5KCP39GGAA02 5KCP39HGS599 5KCP39KGS887
