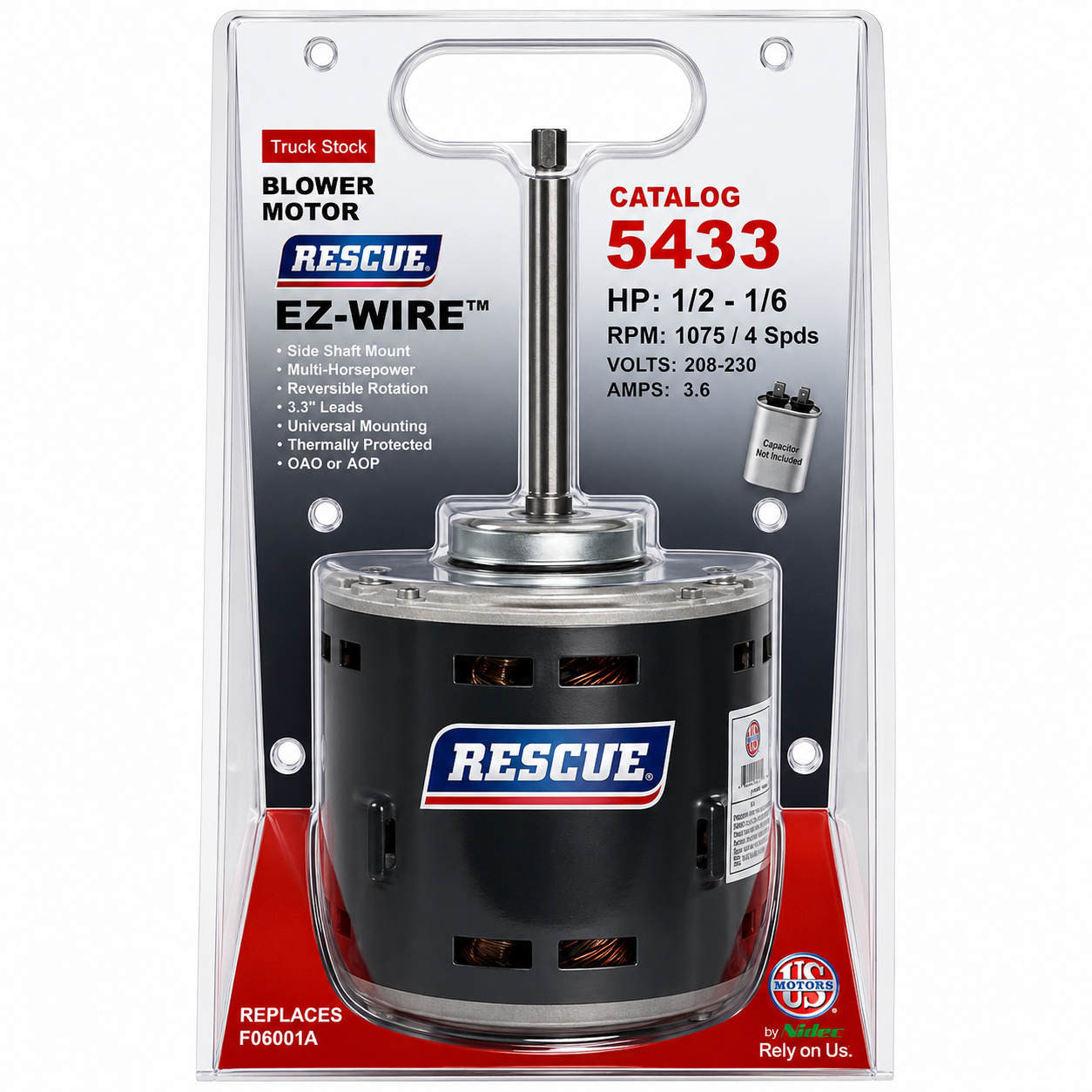

US Motors Fan & Blower Motors (HVAC/R) 5433 - 1/2 HP - 208/230 V - 1075 RPM - Single phase
US Motors Fan & Blower Motors (HVAC/R) 5433 - 1/2 HP - 208/230 V - 1075 RPM - Single phase

US Motors Fan & Blower Motors (HVAC/R) 5433 - 1/2 HP - 208/230 V - 1075 RPM - Single phase

US Motors
$189.00
$189.00
Quantity must be 1 or more
  • Horsepower :1/2-1/6
  • Voltage :208-230
  • Amps :3.6
  • RPM :1075/4SPD
  • Frequency :60 Hz
  • Length :5.312"
  • "C" Dim. :10.312"
  • Enclosure :Open Air Over
  • Shaft Dim. :1/2 X 5.0"
  • Type :Permanent Split Capacitor
  • Speeds :4
  • Diameter :5-5/8"
  • Frame :48
  • Bearings :Self-Aligning Bearings
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.0
  • Phase :1
  • Ambient Temp. :40°C
  • Capacitor Rating :10/5MFS-370V
  • Feature(s) :Side shell holes, Multi-Horsepower, Reversible Rotation, 36"Leads, Universal Mounting, Thermally protected
  • Weight (lbs.) :16.56
  • Reference : Century FD6000A, Emerson K55HXKPR3346, Emerson Catalogue No. 5461, General Electric Stock No. 3464, Universal Electric HE3J232
