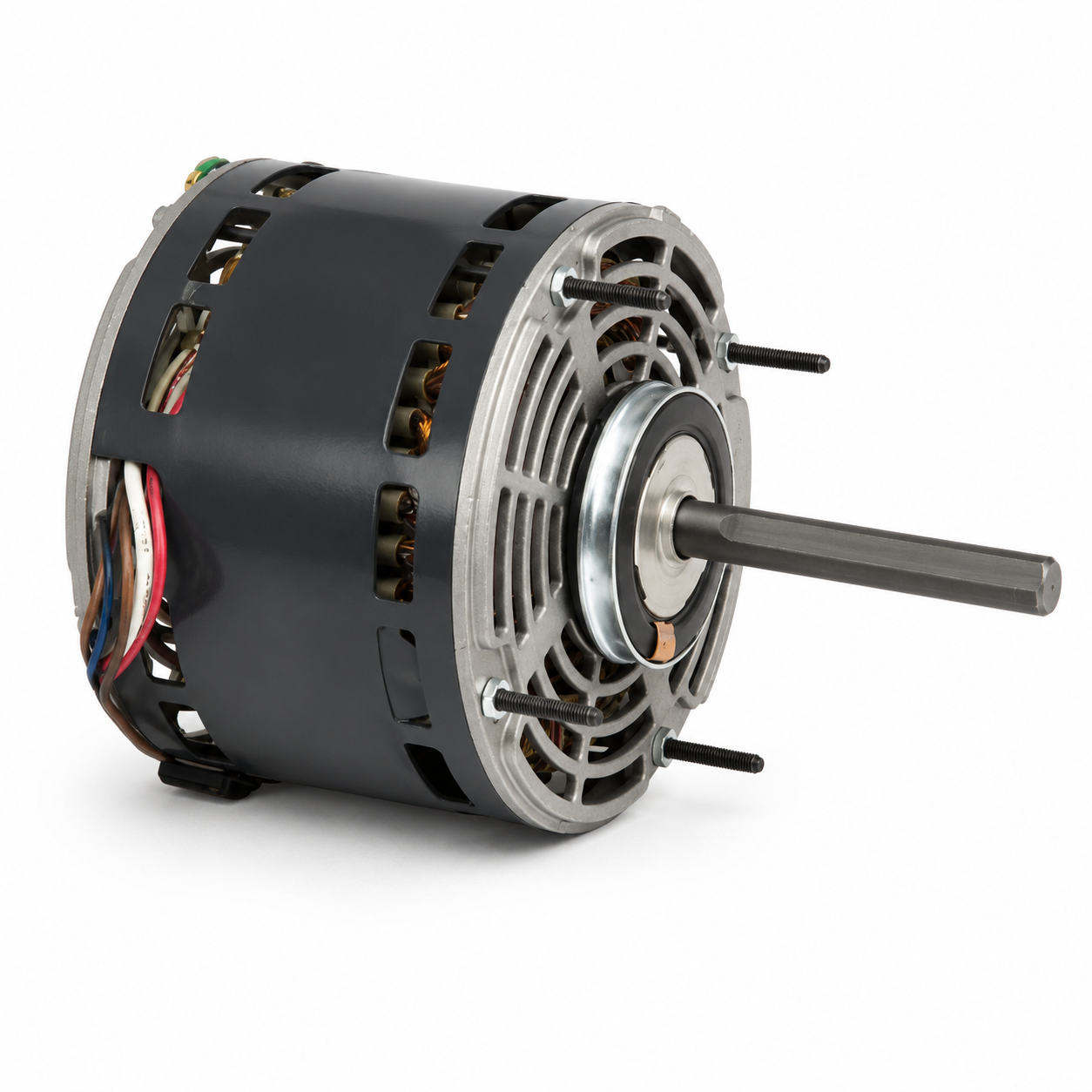

US Motors Fan & Blower Motors (HVAC/R) 8064 - 1/2 HP - 208/230 V - 825 RPM - Single phase
US Motors Fan & Blower Motors (HVAC/R) 8064 - 1/2 HP - 208/230 V - 825 RPM - Single phase

US Motors Fan & Blower Motors (HVAC/R) 8064 - 1/2 HP - 208/230 V - 825 RPM - Single phase

US Motors
Sold out
$424.00
Quantity must be 1 or more
  • Horsepower :1/2
  • Voltage :208-230
  • Amps :4.40
  • RPM :825
  • Frequency :60 Hz
  • Length :6-1/2"
  • "C" Dim. :9"
  • Enclosure :Open Air Over
  • Shaft Dim. :1/2" x 2-1/2"
  • Type :Permanent Split Capacitor
  • Speeds :2
  • Diameter :5.6"
  • Bearings :Self Aligning Bearings
  • Rotation :CCWLE
  • Protector :Automatic
  • Phase :1
  • Feature(s) :Class 'B' Insulation, 24" Leads, Continuous Duty, Bearings Have All Angle Thrust System, Designed for use with 370V Capacitors, 2.5" Dia. Hub Rings Included, All Angle Mount
  • Weight (lbs.) :20
  • Manufacturer Model # : K055TPA9657011B
    Reference : Lennox 34K8001
