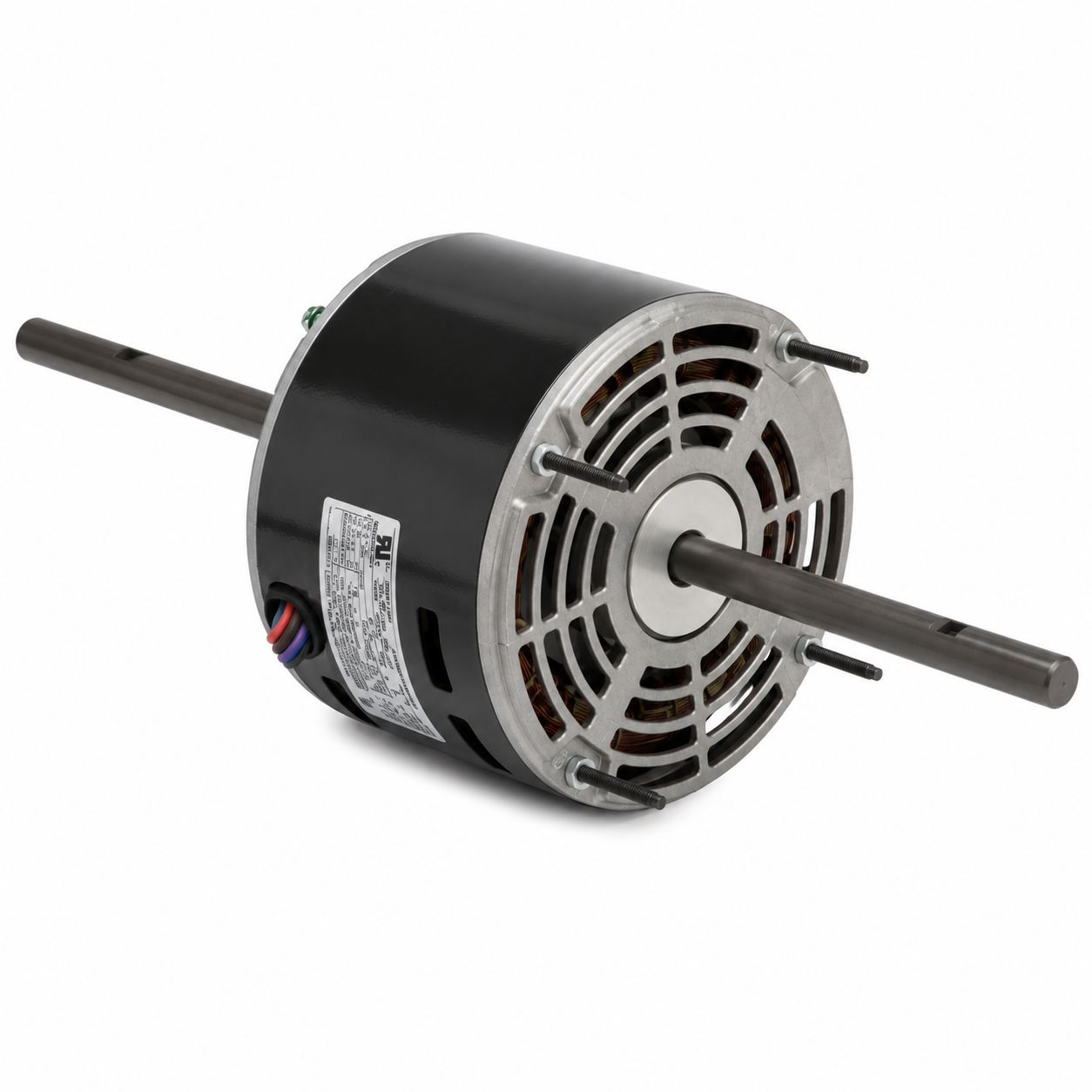

US Motors Fan Coil Motors (HVAC/R) NA1024 - 1/4 HP - 208/230 V - 1625 RPM - Single phase
US Motors Fan Coil Motors (HVAC/R) NA1024 - 1/4 HP - 208/230 V - 1625 RPM - Single phase

US Motors Fan Coil Motors (HVAC/R) NA1024 - 1/4 HP - 208/230 V - 1625 RPM - Single phase

US Motors
$241.00
$241.00
Quantity must be 1 or more
  • Horsepower :1/4
  • Voltage :208/230
  • Amps :2.1
  • RPM :1625
  • "C" Dim. :22.0"
  • Enclosure :Open Drip-Proof
  • Shaft Dim. :8.7" X 1/2" X 8.7"
  • Type :Permanent Split Capacitor
  • Speeds :3
  • Diameter :5.6
  • Frame :48Y
  • Bearings :Self Aligning Bearings
  • Rotation :CCWLE
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :40°C
  • Capacitor Rating :5MFD-370V
  • Feature(s) :Hub & Ring on one side, length adapter with hub & ring included
  • Weight (lbs.) :11

  • Reference : A.O. Smith F48C14A02, Carrier HC39CE700, Century RA1024, Emerson K55HXRKW2203, Fasco D774, General Electric 3872, Marathon X040
