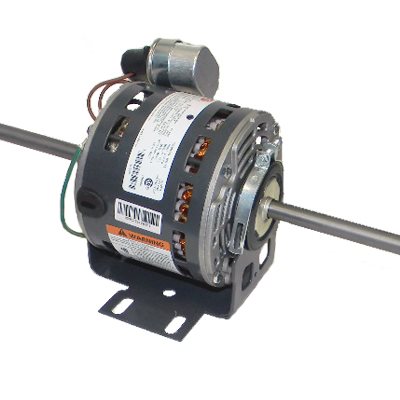

US Motors Fan Coil Motors (HVAC/R) 1353 - 1/5 HP - 208/230 V - 1625 RPM - Single phase
US Motors Fan Coil Motors (HVAC/R) 1353 - 1/5 HP - 208/230 V - 1625 RPM - Single phase

US Motors Fan Coil Motors (HVAC/R) 1353 - 1/5 HP - 208/230 V - 1625 RPM - Single phase

US Motors
$399.00
$399.00
Quantity must be 1 or more
  • Horsepower :1/5
  • Voltage :208-230
  • Amps :1.20
  • RPM :1625
  • Frequency :60 Hz
  • Length :4-1/16"
  • Enclosure :Open Air Over
  • Shaft Dim. :9.335" x 1/2" x 9.335"
  • Type :Permanent Split Capacitor
  • Speeds :3
  • Diameter :5.0"
  • Frame :42Y
  • Bearings :Self Aligning Bearings
  • Rotation :CCWLE
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :40°C
  • Feature(s) :Class 'B' Insulation, Continuous Duty, Air Over, Resilient Mount
  • Weight (lbs.) :10

  • Reference : A.O.Smith 319P367 322P533 F42A14A01, Dayton 4UU24, Electrohome 8353910191 2868-513-113 2868-513-153, Emerson K48HXBRG1098, Fasco 7163-1424 7163-2149 7163-2584 7163-4909 7164-2152 7173-0192 7174-2152 7190-1181 D1032 D136 D247, Franklin 8214115103 8253710450 8253910570 8353910191 8414320169, General Electric 5KCP29FFK348 5KCP29FK348 5KSP29FK1543
