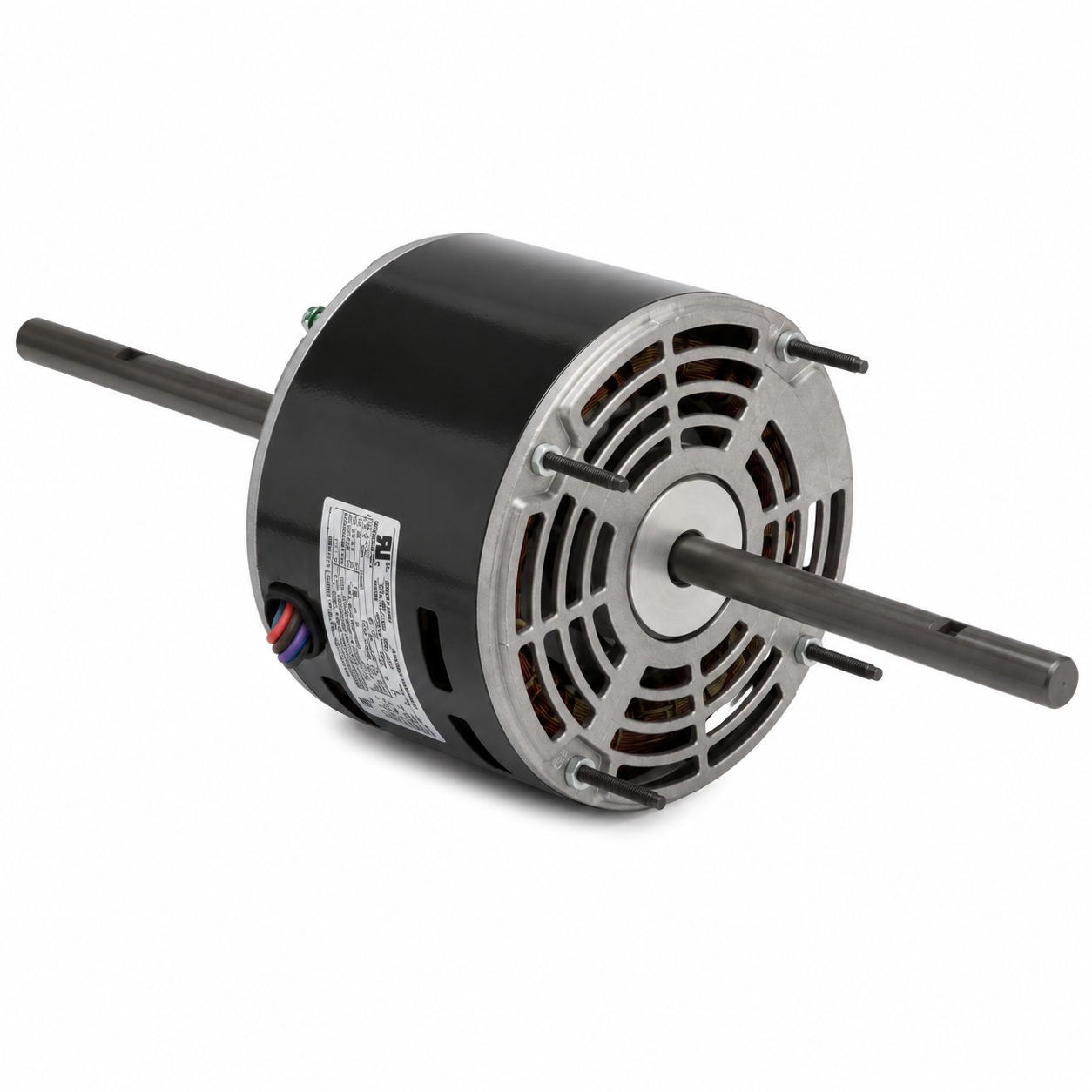

US Motors Fan Coil Motors (HVAC/R) NA1006 - 1/8 HP - 208/230 V - 1075 RPM - Single phase
US Motors Fan Coil Motors (HVAC/R) NA1006 - 1/8 HP - 208/230 V - 1075 RPM - Single phase

US Motors Fan Coil Motors (HVAC/R) NA1006 - 1/8 HP - 208/230 V - 1075 RPM - Single phase

US Motors
$214.00
$214.00
Quantity must be 1 or more
  • Horsepower :1/8
  • Voltage :208-230
  • Amps :0.9
  • RPM :1075
  • "C" Dim. :22.0"
  • Enclosure :Open Drip-Proof
  • Shaft Dim. :9.1" X 1/2" X 9.1"
  • Type :Permanent Split Capacitor
  • Speeds :3
  • Diameter :5.6
  • Frame :48Y
  • Bearings :Self Aligning Bearings
  • Rotation :CCWLE
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :40°C
  • Capacitor Rating :5MFD-370V
  • Feature(s) :Hub & Ring on one side, length adapter with hub & ring included
  • Weight (lbs.) :9
  • Reference : A.O. Smith F48SD6MA29 F48SD6MA30 F48SE6MA46A1 F48SG6L7, Carrier P257X057, Century RA1006, Emerson K55HXRKT2199, Franklin Bluffton 8745660310, Fasco Catalogue No. D750, General Electric 5KCP39CG9430 5KCP39CG9925, General Electric Catalogue No. 3642, Marathon X057, Rotom R52100
