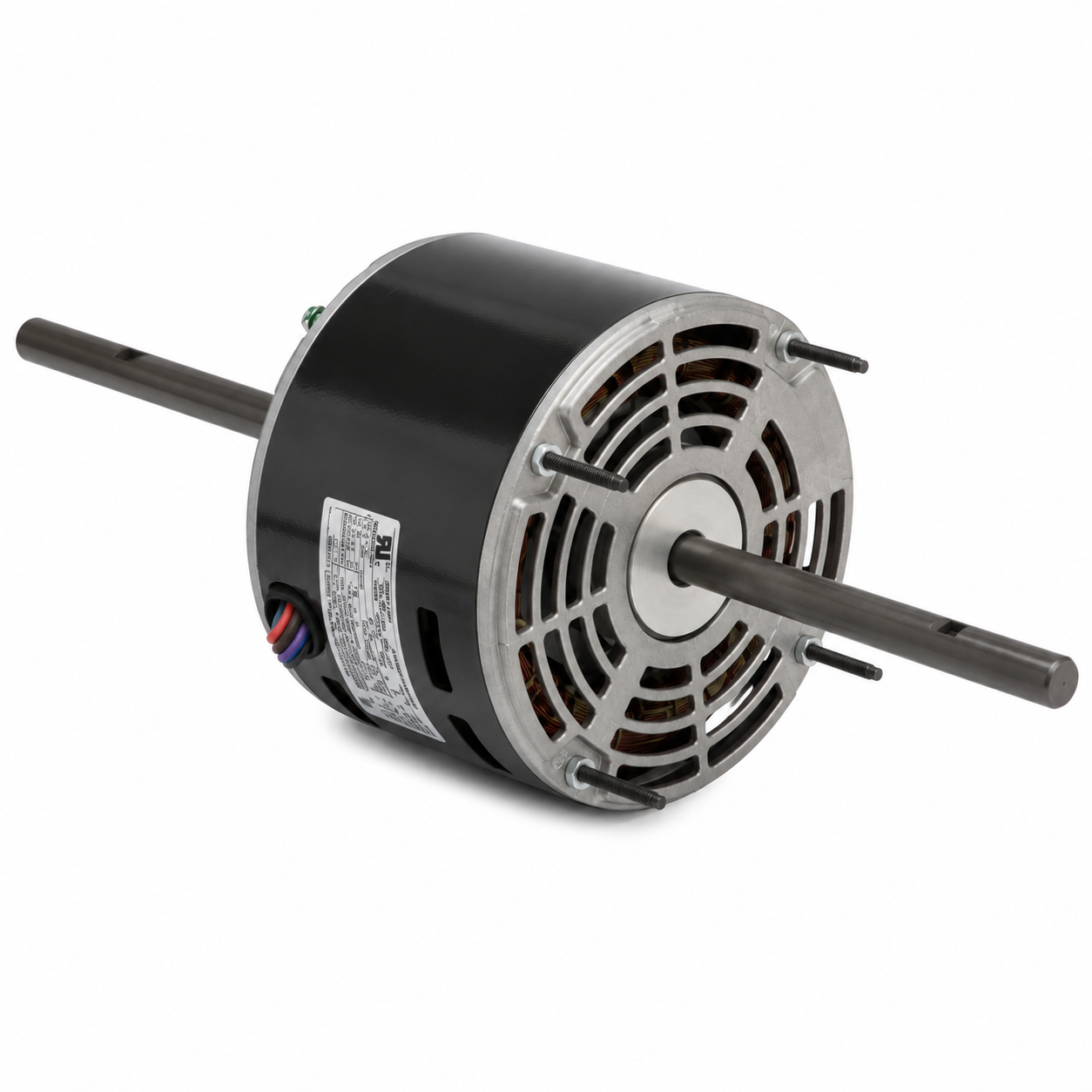

US Motors Fan Coil Motors (HVAC/R) NA1056 - 1/2 HP - 208/230 V - 1075 RPM - Single phase
US Motors Fan Coil Motors (HVAC/R) NA1056 - 1/2 HP - 208/230 V - 1075 RPM - Single phase

US Motors Fan Coil Motors (HVAC/R) NA1056 - 1/2 HP - 208/230 V - 1075 RPM - Single phase

US Motors
$248.00
$248.00
Quantity must be 1 or more
  • Horsepower :1/2
  • Voltage :208/230
  • Amps :3.37
  • RPM :1075
  • "C" Dim. :22.0"
  • Enclosure :Open Drip-Proof
  • Shaft Dim. :8.5" X 1/2" X 8.5"
  • Type :Permanent Split Capacitor
  • Speeds :3
  • Diameter :5-5/8"
  • Frame :48Y
  • Bearings :Ball
  • Rotation :CCWLE
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :40°C
  • Capacitor Rating :7.5MFD-370V
  • Feature(s) :Hub & Ring on one side, length adapter with hub & ring included
  • Weight (lbs.) :16

  • Reference : A.O.Smith 323P285 324P121 F48C17A02 F48E66A01, A.O.Smith Stock No. RA1056 SA1056 0544, Carrier HC43FE230 HC43WE701 P257X062, Emerson K55HXBNW2309 K55HXBNW3803 K55HXDFG2178 K55HXNRE7085, Emerson Stock No. 3136 K5824, Fasco 7126-1566 7126-2080, Fasco Stock No. D760, Franklin Bluffton 8746460131, General Electric 5KCP38PG121 5KCP38PG123 5KCP38PG124, General Electric Stock No. 2362SX, Marathon Stock No. X062
