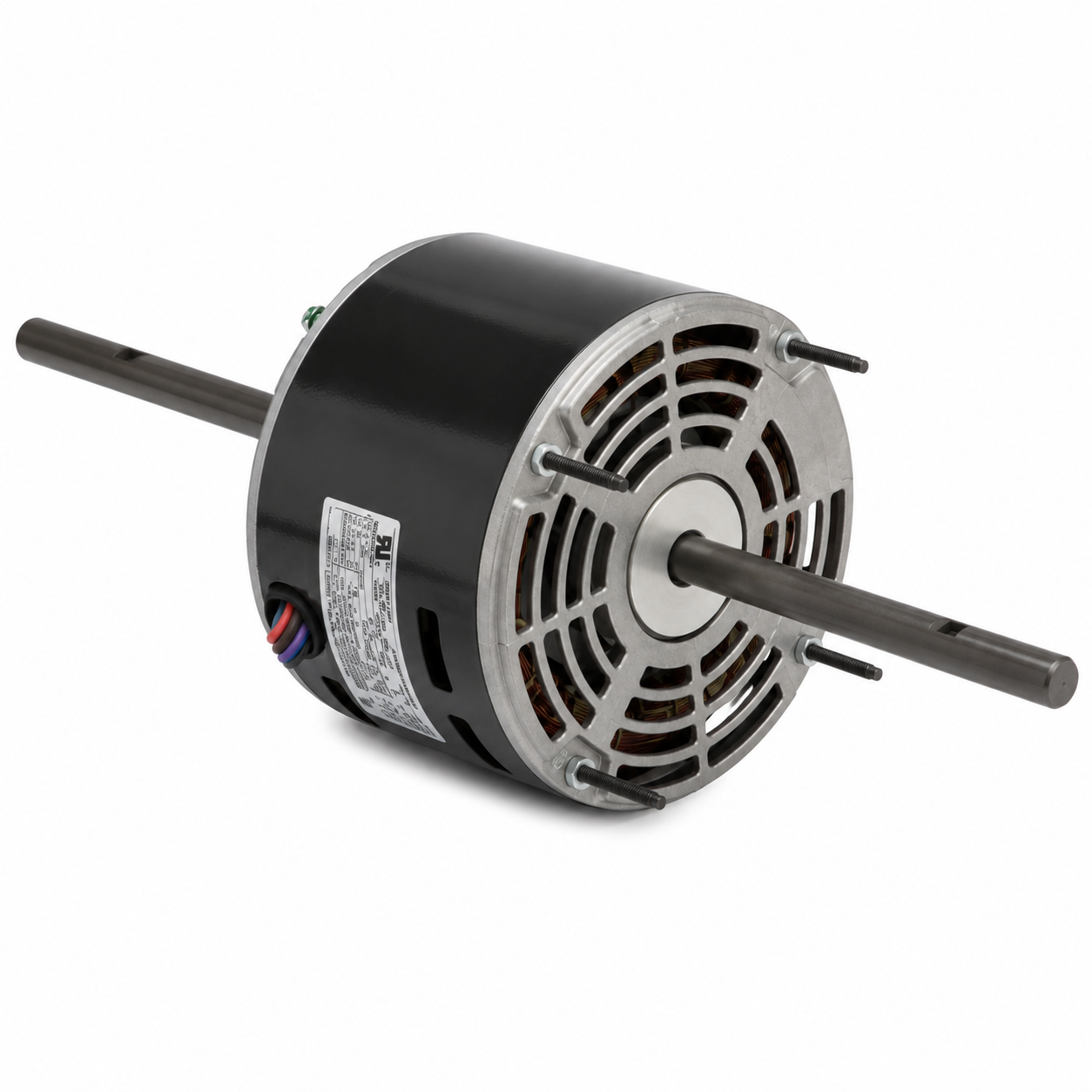

US Motors Fan Coil Motors (HVAC/R) NAL1036 - 1/3 HP - 115 V - 1075 RPM - Single phase
US Motors Fan Coil Motors (HVAC/R) NAL1036 - 1/3 HP - 115 V - 1075 RPM - Single phase

US Motors Fan Coil Motors (HVAC/R) NAL1036 - 1/3 HP - 115 V - 1075 RPM - Single phase

US Motors
$254.00
$254.00
Quantity must be 1 or more
  • Horsepower :1/3
  • Voltage :115
  • Amps :7.15
  • RPM :1075
  • "C" Dim. :22.0"
  • Enclosure :Open Drip-Proof
  • Shaft Dim. :8.9" X 1/2" X 8.9"
  • Type :Permanent Split Capacitor
  • Speeds :3
  • Diameter :5-5/8"
  • Frame :48Y
  • Bearings :Ball
  • Rotation :CCWLE
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :40°C
  • Capacitor Rating :5MFD-370V
  • Feature(s) :Hub & Ring on one side, length adapter with hub & ring included
  • Weight (lbs.) :15
  • Reference : A.O. Smith 323P124, Century RAL1036, Emerson K55HXRHP2149, Fasco D757, GE 3681, Marathon X070
