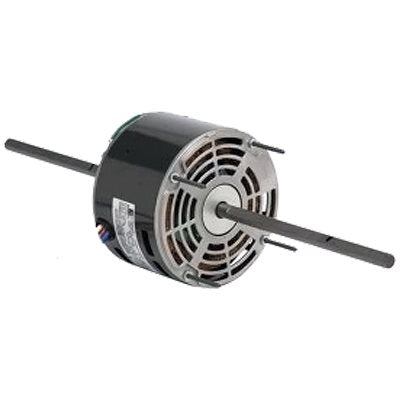

US Motors Fan Coil Motors (HVAC/R) NAL1076 - 3/4 HP - 115 V - 1075 RPM - Single phase
US Motors Fan Coil Motors (HVAC/R) NAL1076 - 3/4 HP - 115 V - 1075 RPM - Single phase

US Motors Fan Coil Motors (HVAC/R) NAL1076 - 3/4 HP - 115 V - 1075 RPM - Single phase

US Motors
$324.00
$324.00
Quantity must be 1 or more
  • Horsepower :3/4
  • Voltage :115
  • Amps :8.2
  • RPM :1075
  • "C" Dim. :22.0"
  • Enclosure :Open Air Over
  • Shaft Dim. :8.3" X 1/2" X 8.3"
  • Type :Permanent Split Capacitor
  • Speeds :3
  • Diameter :5-5/8"
  • Frame :48Y
  • Bearings :Self Aligning Bearings
  • Rotation :CCWLE
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :40°C
  • Capacitor Rating :15MFD-370V
  • Feature(s) :Multi Hub & Ring on one side, length adapter with hub & ring included
  • Weight (lbs.) :17
  • Reference : A.O.Smith F48G06A01, Century RAL1076, Century 9600A, Emerson K55HXRJS2175, Fasco D769
