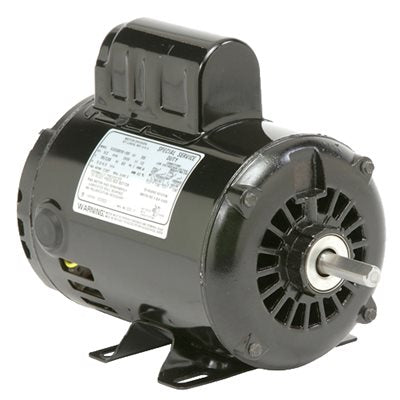

Us Motors General Purpose Motors (HVAC/R) D12CP2P4 - 1/2 HP - 115/230 V - 1725 RPM - Single phase
Us Motors General Purpose Motors (HVAC/R) D12CP2P4 - 1/2 HP - 115/230 V - 1725 RPM - Single phase

Us Motors General Purpose Motors (HVAC/R) D12CP2P4 - 1/2 HP - 115/230 V - 1725 RPM - Single phase

US Motors
$328.00
$328.00
Quantity must be 1 or more
  • Horsepower :1/2
  • Voltage :115/230
  • Amps :5.0/2.6
  • RPM :1725
  • Frequency :60 Hz
  • "C" Dim. :9"
  • Enclosure :ODP
  • Type :Capacitor Start
  • Frame :48
  • Bearings :Ball
  • Rotation :Reversible
  • Service Factor :1.25
  • Phase :1
  • Ambient Temp. :40°C
  • Weight (lbs.) :26
