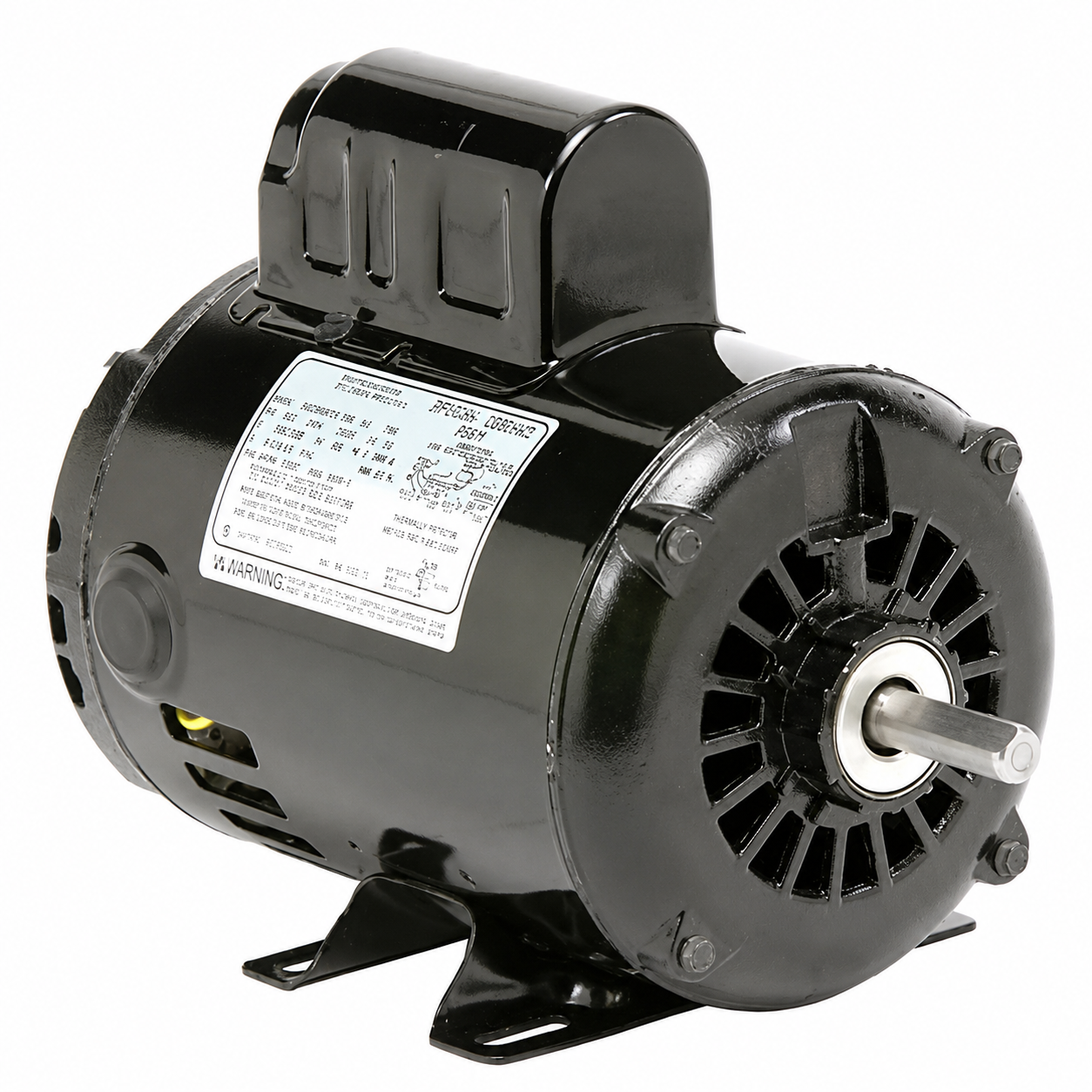

US Motors General Purpose Motors (HVAC/R) D13CP2P4 - 1/3 HP - 115/230 V - 1725 RPM - Single phase
US Motors General Purpose Motors (HVAC/R) D13CP2P4 - 1/3 HP - 115/230 V - 1725 RPM - Single phase

US Motors General Purpose Motors (HVAC/R) D13CP2P4 - 1/3 HP - 115/230 V - 1725 RPM - Single phase

US Motors
$280.00
$280.00
Quantity must be 1 or more
  • Horsepower :1/3
  • Voltage :115/230
  • Amps :3.8/1.9
  • RPM :1725
  • Frequency :60 Hz
  • "C" Dim. :9.1"
  • Enclosure :Open
  • Type :Capacitor Start
  • Speeds :1
  • Frame :48
  • Base :Rigid
  • Rotation :Reversible
  • Protector :None
  • Service Factor :1.35
  • Phase :1
  • Ambient Temp. :40°C
  • Weight (lbs.) :17.45
Back to 1 Phase
