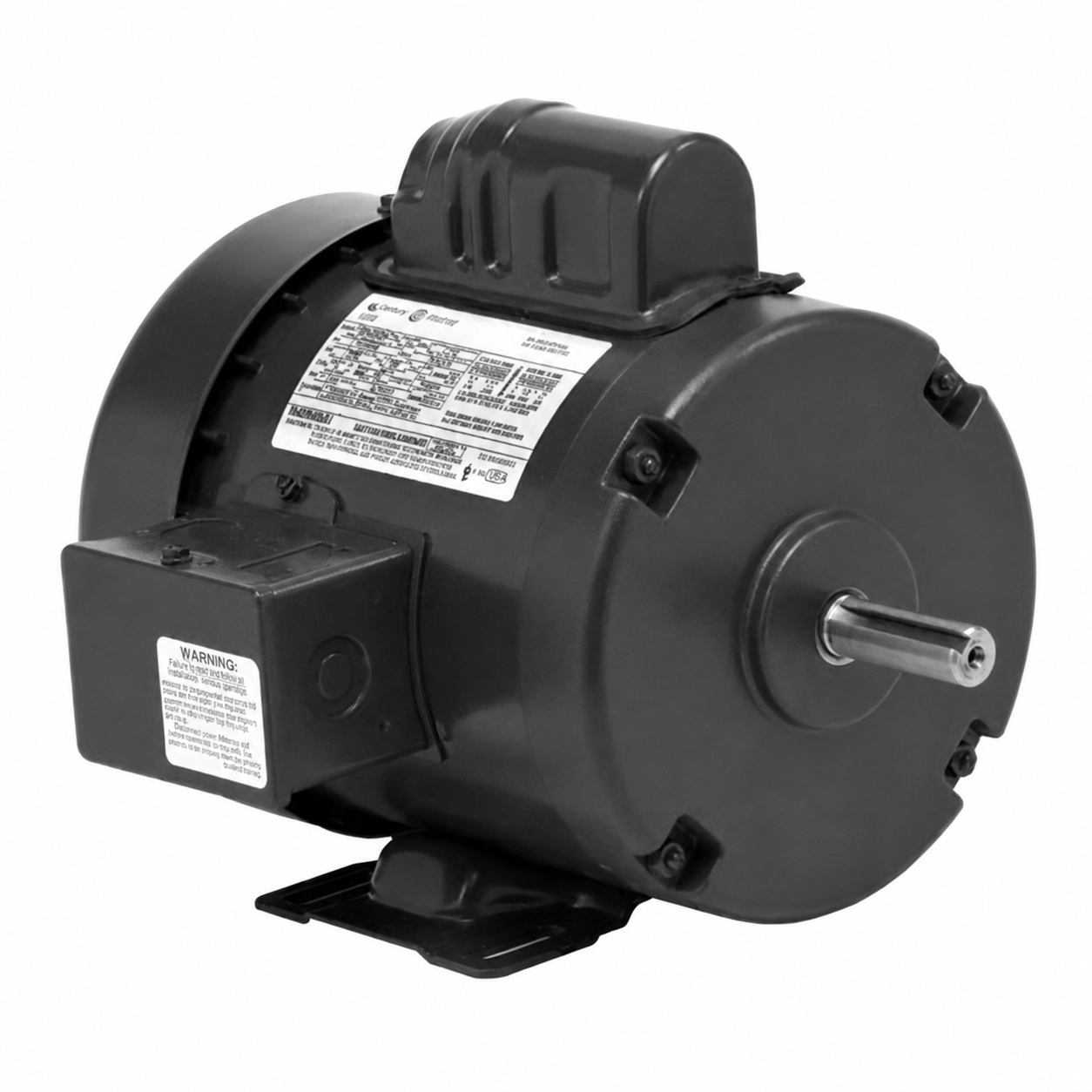

US Motors General Purpose Motors (HVAC/R) T12C2J4 - 1/2 HP - 115/208-230 V - 1725 RPM - Single phase
US Motors General Purpose Motors (HVAC/R) T12C2J4 - 1/2 HP - 115/208-230 V - 1725 RPM - Single phase

US Motors General Purpose Motors (HVAC/R) T12C2J4 - 1/2 HP - 115/208-230 V - 1725 RPM - Single phase

US Motors
$293.00
$293.00
Quantity must be 1 or more

• HP: 1/2
• Voltage: 115 / 208-230
• RPM: 1725
• Current (Amp): 9.00 / 4.30-4.50
• Phase: 1
• Rotation: Reversible
• Frame: 48
• Enclosure: Totally Enclosed Fan Cooled
• Speeds: 1
• Protector: No Protection
• Ambient Temp: 40°C
• Service Factor: 1.15
• Shaft Dimensions: 0.50 in X 1.50 in
• Frequency: 60Hz
• Diameter: 5.5 in
• Frame Length: 11.28 in
• Bearings: Ball
• Features: class b insulation, rigid base, 1/2" diameter shaft with flat
