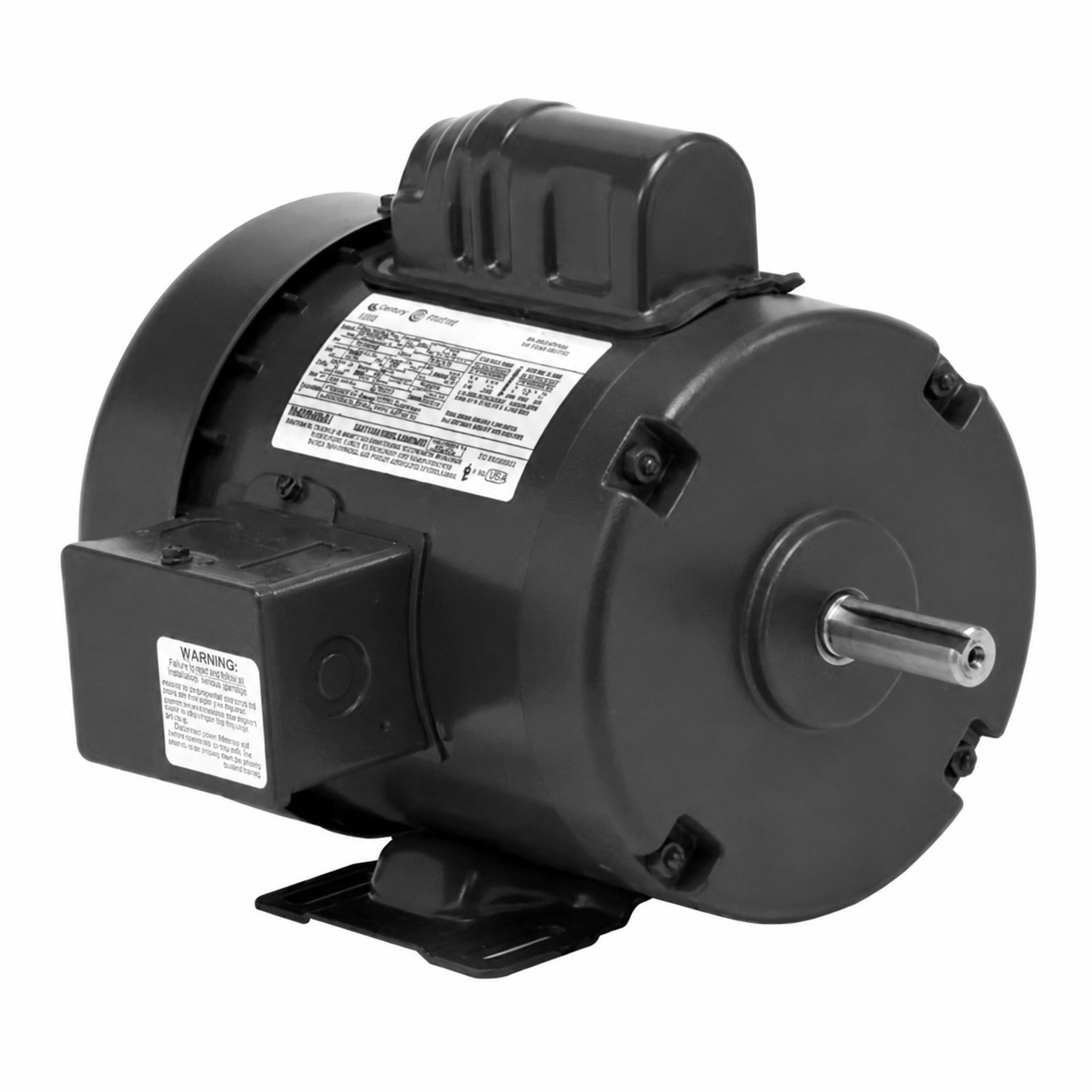

US Motors General Purpose Motors (HVAC/R) T13C1J4 - 1/3 HP - 115/208-230 V - 3600 RPM - Single phase
US Motors General Purpose Motors (HVAC/R) T13C1J4 - 1/3 HP - 115/208-230 V - 3600 RPM - Single phase

US Motors General Purpose Motors (HVAC/R) T13C1J4 - 1/3 HP - 115/208-230 V - 3600 RPM - Single phase

US Motors
$290.00
$290.00
Quantity must be 1 or more
  • Horsepower :1/3
  • Voltage :115/208-230
  • Amps :5.50/2.70-2.80
  • RPM :3600
  • Frequency :60 Hz
  • "C" Dim. :10-4/5"
  • Enclosure :Totally Enclosed Fan Cooled
  • Type :Single Phase
  • Speeds :1
  • Diameter :5-3/5"
  • Frame :48
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :None
  • Service Factor :1.15
  • Phase :1
  • Ambient Temp. :40°C
  • Feature(s) :Rigid Base
  • Weight (lbs.) :19
