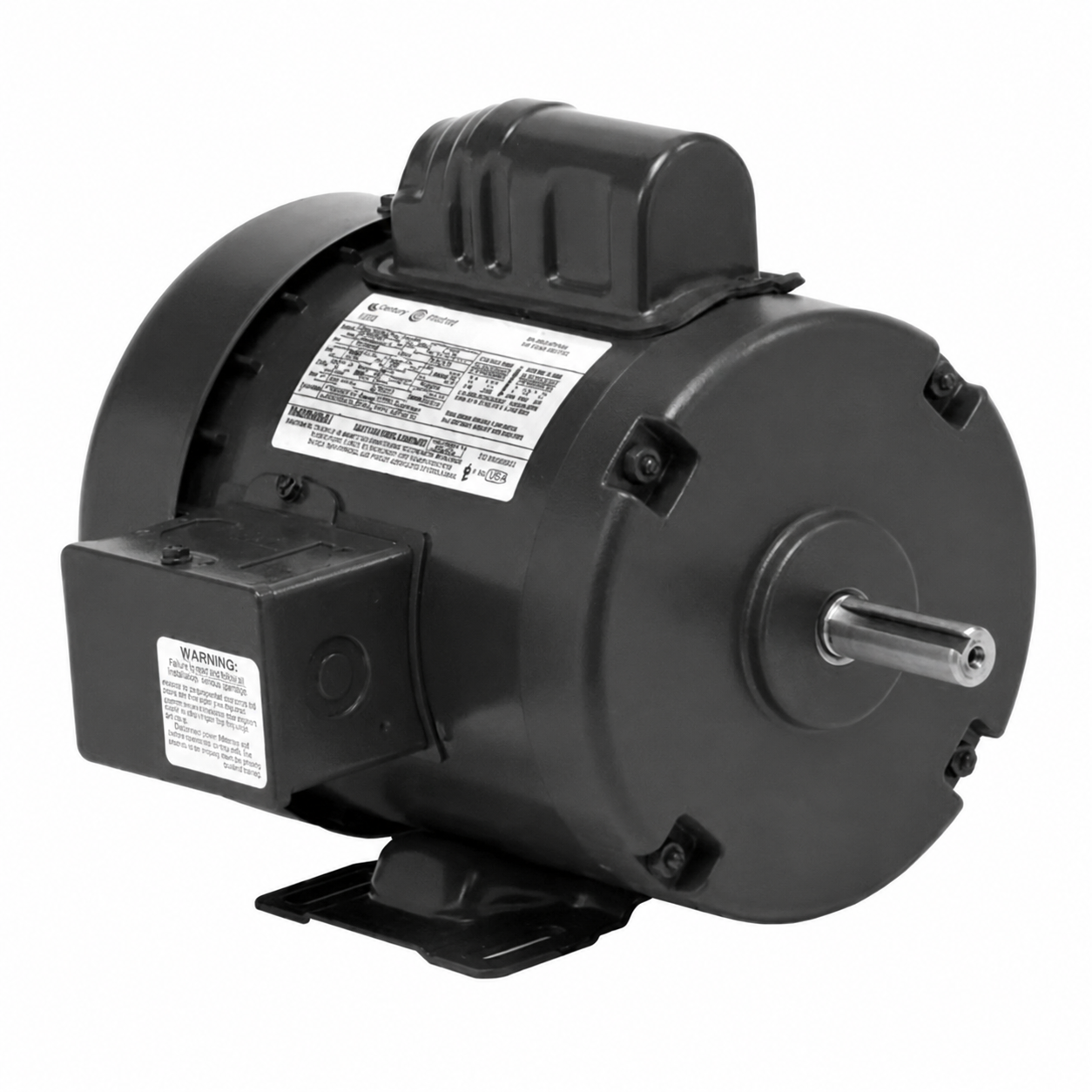

US Motors General Purpose Motors (HVAC/R) T1CM1J - 1 HP - 115/208-230 V - 3450 RPM - Single phase
US Motors General Purpose Motors (HVAC/R) T1CM1J - 1 HP - 115/208-230 V - 3450 RPM - Single phase

US Motors General Purpose Motors (HVAC/R) T1CM1J - 1 HP - 115/208-230 V - 3450 RPM - Single phase

US Motors
$368.00
$368.00
Quantity must be 1 or more
  • Horsepower :1
  • Voltage :115/208-230
  • Amps :13.6/6.9-6.8
  • RPM :3450
  • Frequency :60 Hz
  • "C" Dim. :12.39"
  • Enclosure :TEFC
  • Shaft Dim. :5/8" X 1-7/8"
  • Type :Capacitor Start
  • Frame :56
  • Bearings :Ball
  • Rotation :Reversible
  • Service Factor :1.15
  • Phase :1
  • Ambient Temp. :40°C
  • Weight (lbs.) :30
