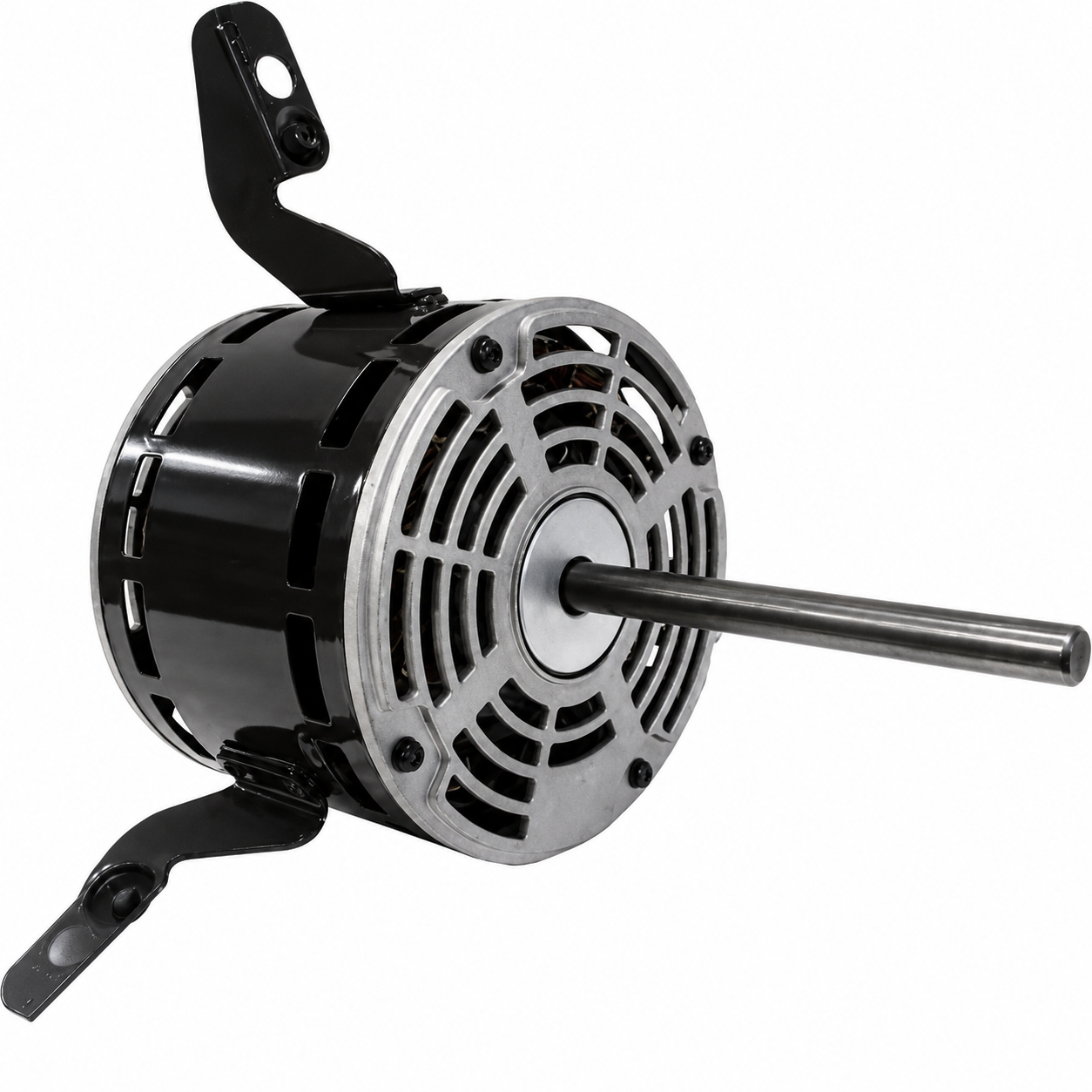

US Motors Indoor Blower Motor (HVAC/R) 3785 - 1/3 HP - 115 V - 1075 RPM - Single phase
US Motors Indoor Blower Motor (HVAC/R) 3785 - 1/3 HP - 115 V - 1075 RPM - Single phase

US Motors Indoor Blower Motor (HVAC/R) 3785 - 1/3 HP - 115 V - 1075 RPM - Single phase

US Motors
$235.00
$235.00
Quantity must be 1 or more
  • Horsepower :1/3
  • Voltage :115
  • Amps :5.00
  • RPM :1075
  • Frequency :60 Hz
  • Length :4.56"
  • "C" Dim. :9.56"
  • Enclosure :Open Air Over
  • Shaft Dim. :1/2" x 5.00"
  • Type :Permanent Split Capacitor
  • Speeds :3
  • Diameter :5.6"
  • Frame :48Y
  • Bearings :Self Aligning Bearings
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :40°C
  • Capacitor Rating :7.5MFD-370VAC
  • Feature(s) :Class 'B' Insulation, Flex Mount
  • Weight (lbs.) :15

  • Reference :  A.O.Smith Century 753 753A FML1036, Emerson K55HXTLT9490, General Electric 3785 5KCP39LGP732, OmniDrive SS753
