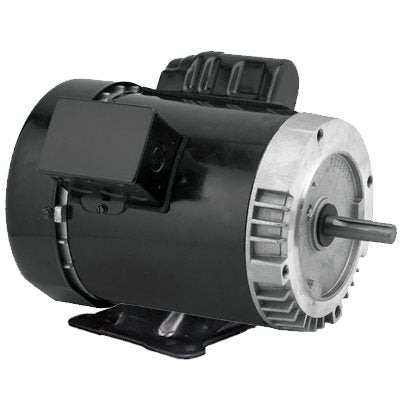

Us motors Pump Motors (HVAC/R) EC09B - 1 HP - 115/230 V - 3450 RPM - Single phase
Us motors Pump Motors (HVAC/R) EC09B - 1 HP - 115/230 V - 3450 RPM - Single phase

Us motors Pump Motors (HVAC/R) EC09B - 1 HP - 115/230 V - 3450 RPM - Single phase

US Motors
$389.00
$389.00
Quantity must be 1 or more
  • Horsepower :1
  • Voltage :115/208-230 & 110/220
  • Amps :12.80/6.60-6.40
  • RPM :3450
  • Frequency :60 Hz
  • "C" Dim. :12.09"
  • Enclosure :Totally Enclosed Fan Cooled
  • Shaft Dim. :1/2" x 2.06"
  • Type :Capacitor Start
  • Diameter :6-1/2"
  • Frame :56C
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :Automatic
  • Service Factor :1.15
  • Phase :1
  • Ambient Temp. :40°C
  • Feature(s) :Class 'B' Insulation, Double Shielded Ball Bearings, Rigid Base
  • Weight (lbs.) :29
  • References: Emerson C63CXHMB5031 B890, General Electric 5KG45NG536
